Panasonic DMC-TZ7EB - Rear Case and LCD Unit Disassembly

26

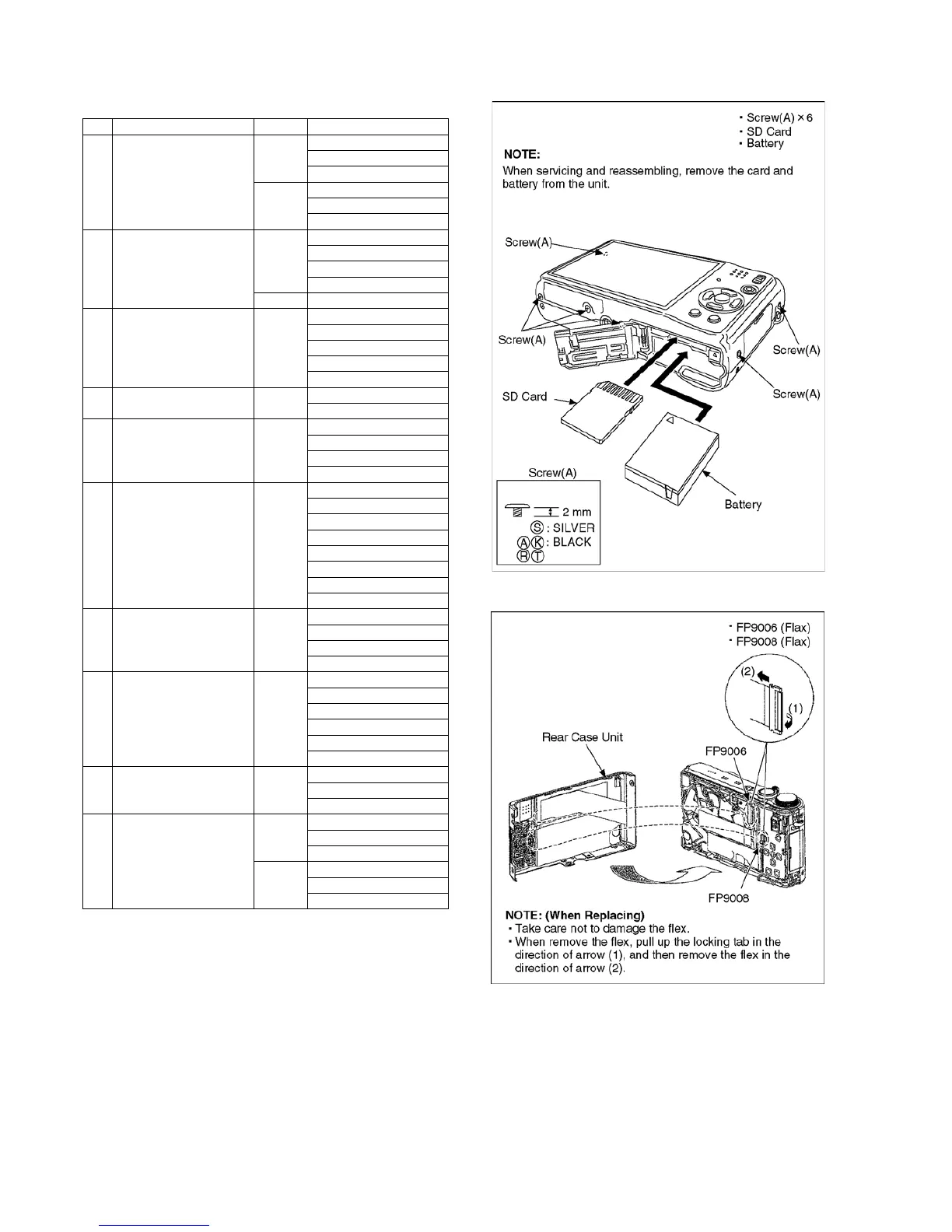

8.3. Disassembly Procedure
8.3.1. Removal of the Rear Case Unit
Fig. D1
Fig. D2
No. Item Fig. Removal
1 Rear Case Unit Fig.D1 SD Card
Battery
6 Screws (A)
Fig.D2 FP9006 (Flex)
FP9008 (Flex)
Rear Case Unit
2 LCD Unit Fig.D3 5 Locking tabs
LCD Unit
LCD Panel
LCD (1)
Fig.D4 NOTE: (When Replacing)
3 Main P.C.B. Fig.D5 FP9003 (Flex)
FP9005 (Flex)
PP9901 (Connector)
DPR Sheet (A)
Main P.C.B.
4 Front Case Fig.D6 5 Screws (B)
Front Case
5 Top Operation Unit Fig.D7 FP9801 (Flex)
PP9903 (Connector)
2 Locking tabs
Top Operation Unit
6 Top Operation P.C.B. Fig.D8 AF Panel Light
2 Locking tabs
Top FPC
FP9901 (Flex)
FP9902 (Flex)
2 Screws (C)
3 Locking tabs
Top Operation P.C.B.
7 Lens Unit Fig.D9 TRIPOD
2 Locking tabs
3 Screws (D)
Lens Unit
8 Sub P.C.B. Fig.D10 1 Screw (E)
2 Locking tabs
DPR Sheet (B)
2 Locking tabs
PCB Spacer
Sub P.C.B.
9 Flash Unit,
Flash P.C.B.
Fig.D11 2 Screws (F)
Flash Unit
Flash P.C.B.
10 Battery Frame Unit,
Battery Case Unit
Fig.D12 Earth Plate
EMC Plate
5 Locking tabs
Fig.D13 6 Locking tabs
Battery Frame Unit
Battery Case Unit
