Panasonic DMC-TZ7EB - Internal Component Removal; CCD Unit and Focus Motor Removal

39

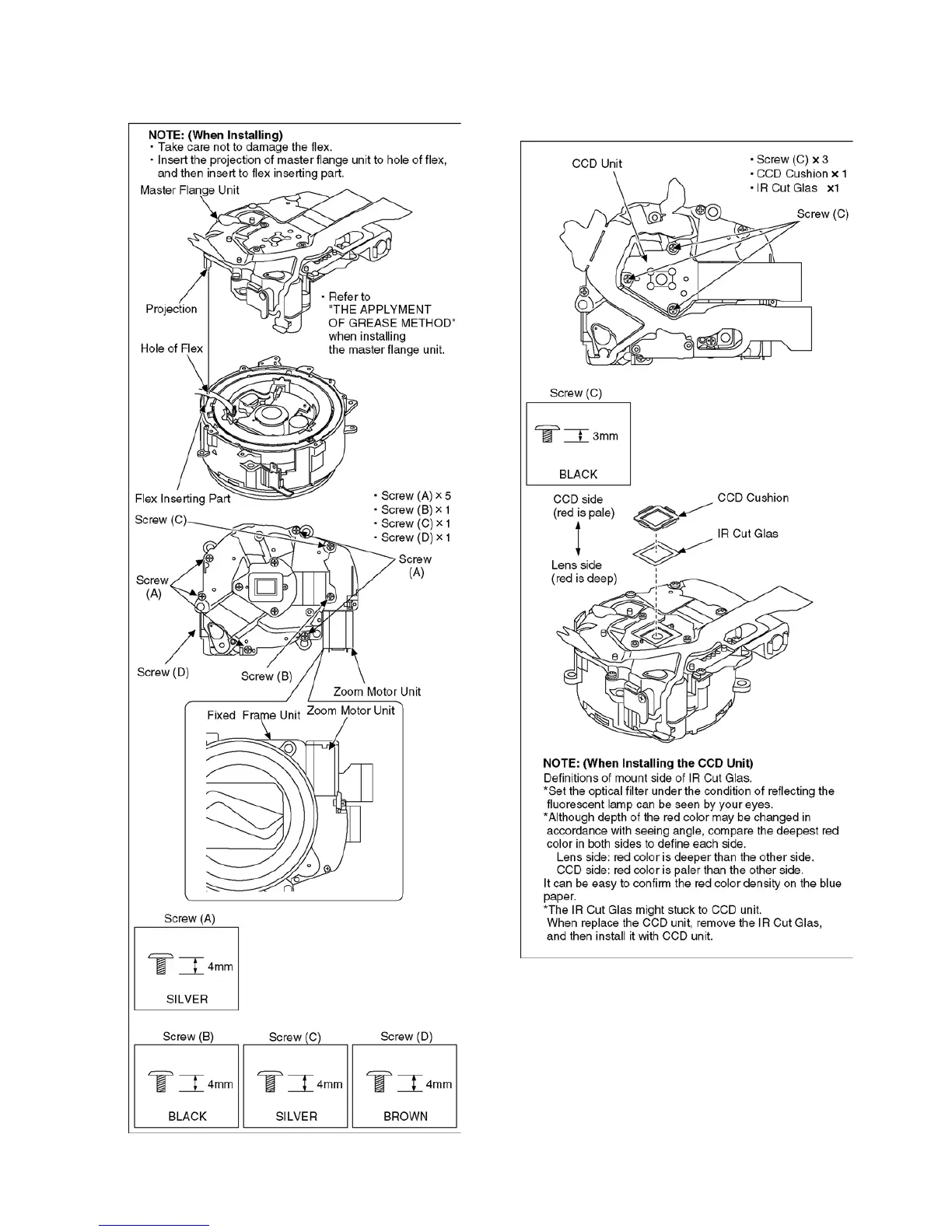

8.5.7. Assembly for the Zoom Motor Unit
and Master Flange Unit
8.6. Removal of the CCD Unit
To prevent the CCD unit from catching the dust and dirt, do
not remove the CCD unit except for replacing.
