Panasonic DMC-TZ7EB - Main PCB and Front Case Disassembly; Top Operation Unit Disassembly

Panasonic DMC-TZ7EB
63 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
28

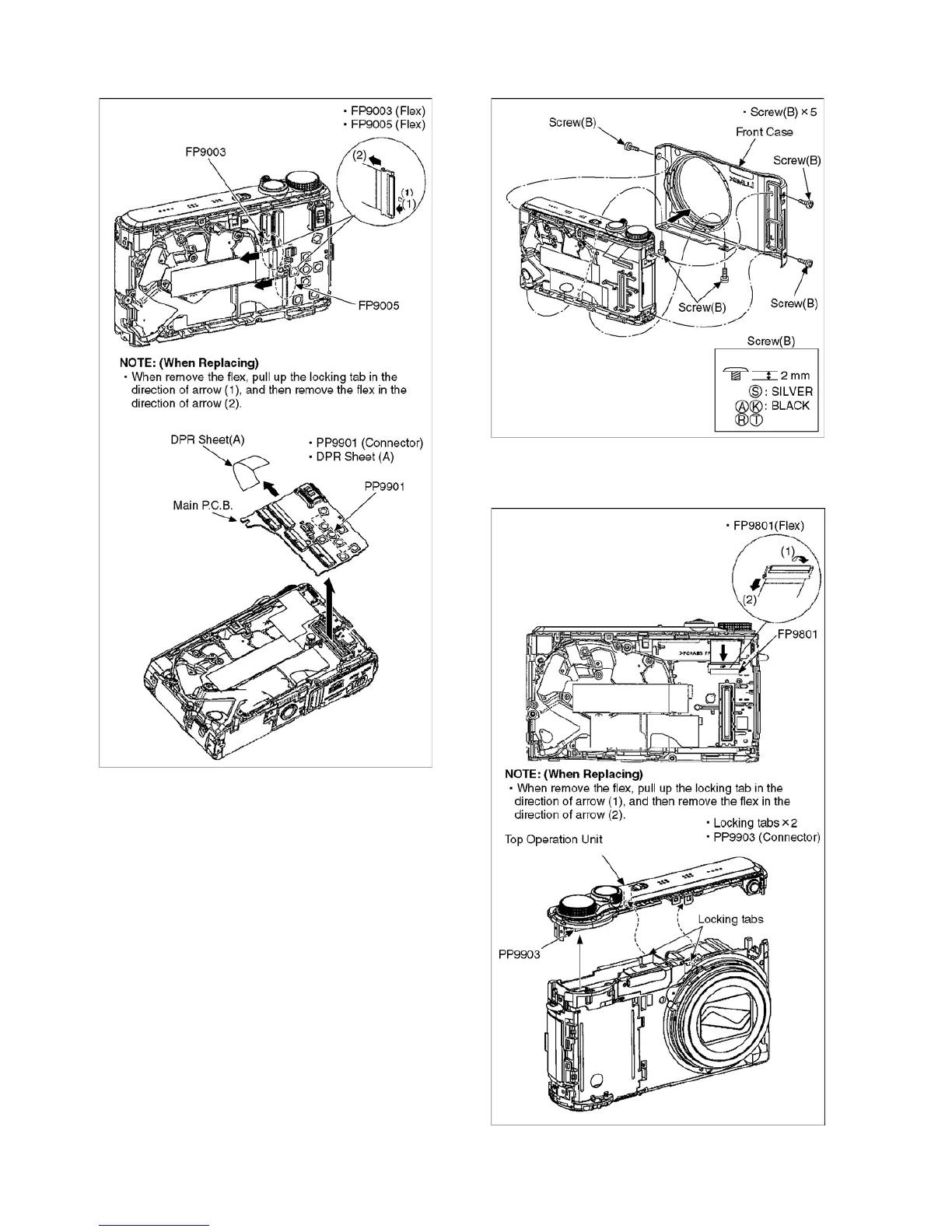

8.3.3. Removal of the Main P.C.B.
Fig. D5
8.3.4. Removal of the Front Case
Fig. D6
8.3.5. Removal of the Top Operation Unit
Fig. D7
