31

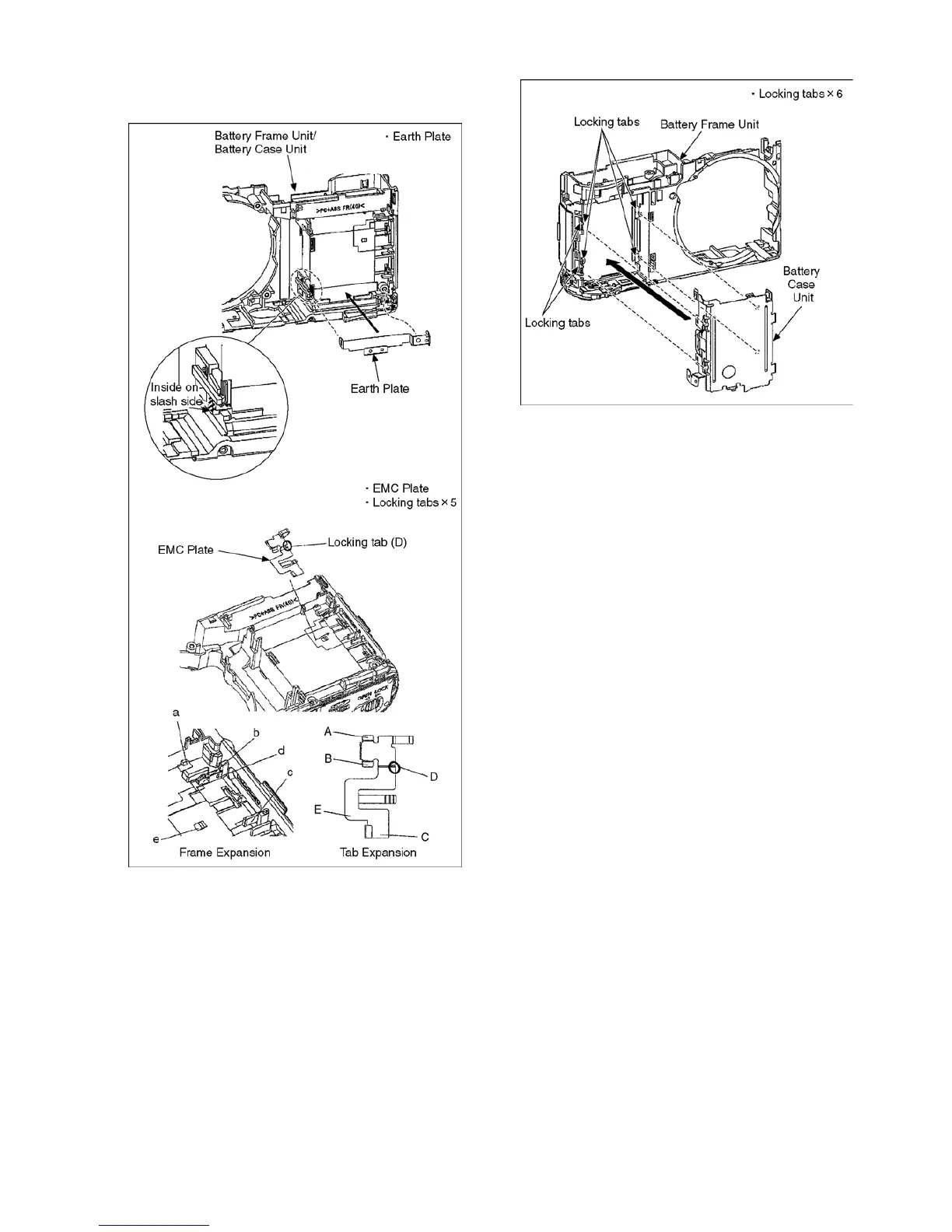

8.3.10. Removal of the Battery Frame Unit,
Battery Case Unit
Fig. D12
Fig. D13
NOTE: (When Assembling)
Be sure to confirm the following points when assembling.
• The Screw is tightened enough.
• Assembling conditions are fine. (No distortion, no illegal-
space.)
• No dust and/or dirt on every Lens surfaces.
• LCD image is fine. (No dust and dirt on it, and no gradient
images.)
To Next Page
