33

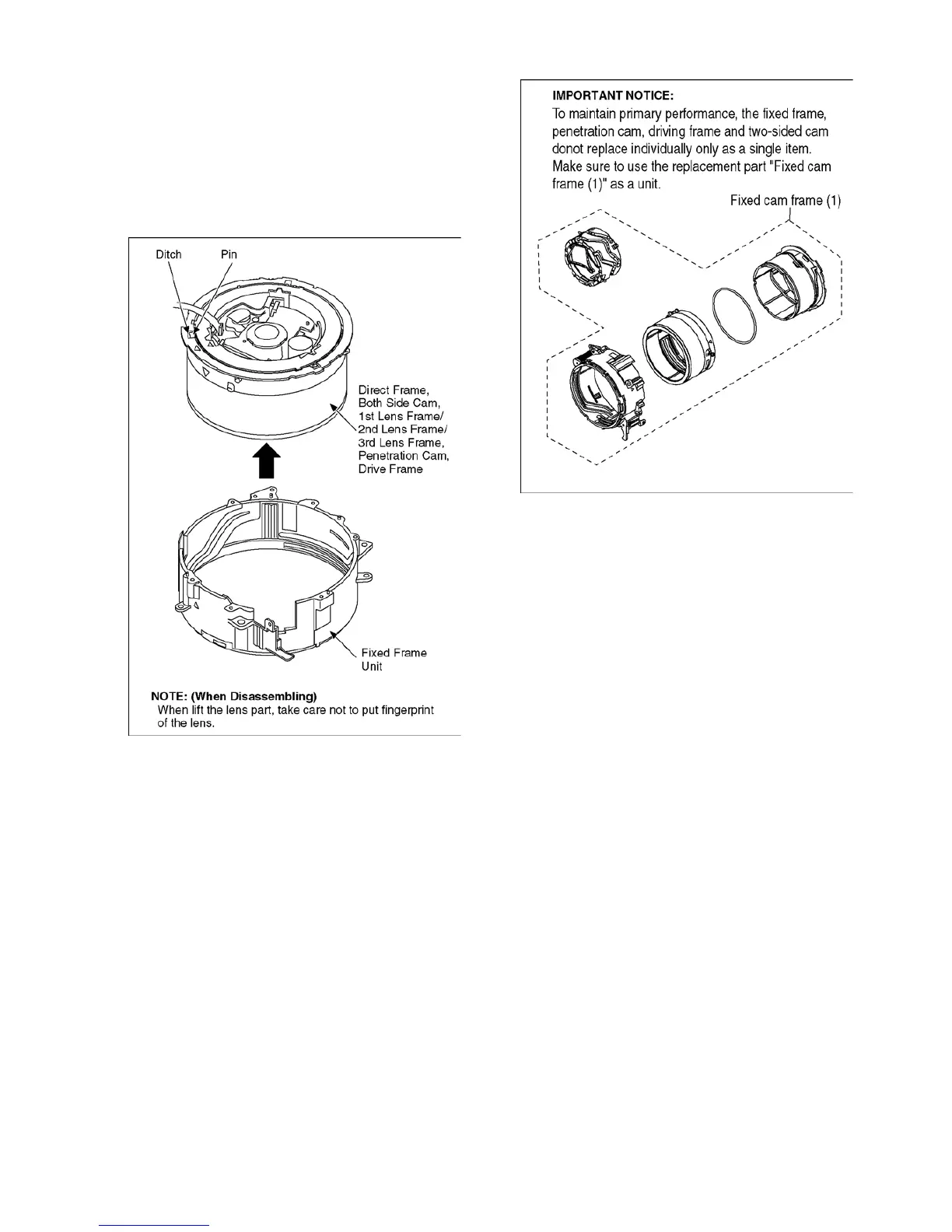

8.4.2. Removal of the Direct Frame, Both
Side Cam, 1st Lens Frame/2nd
Lens Frame/3rd Lens Frame, Pene-
tration Cam and Drive Frame
• Push the penetration cam to the indicated by arrow from
lens side, and then remove the unit of direct frame, both side
cam, 1st lens frame/2nd lens frame/3rd lens frame, penetra-
tion cam and drive frame from the fixed frame unit.
To Next Page
