Getting started
When there is no 21-pin Scart terminal on the television (➡ 16)
≥Change the “AV2 Input” setting to match the output from a satellite/digital terrestrial receiver in the SETUP menu (➡ 59) after tuning is
completed (➡ 19, 20).
≥This unit is compatible with timer recording using programme function on television (e.g., IDTVs) (➡ 31).
≥The AV2 or AV4 Scart terminals on Panasonic televisions are compatible with the Q Link functions.
∫ To view satellite/digital terrestrial programmes
Press [INPUT SELECT] to select the input channel “AV2” for the satellite/digital terrestrial receiver or put this unit in standby mode.
∫ RGB
This refers to the three primary colours of light, red (R), green (G), and blue (B) and also the method of producing video that uses them. By
dividing the video signal into the three colours for transmission, noise is reduced for even higher quality images.

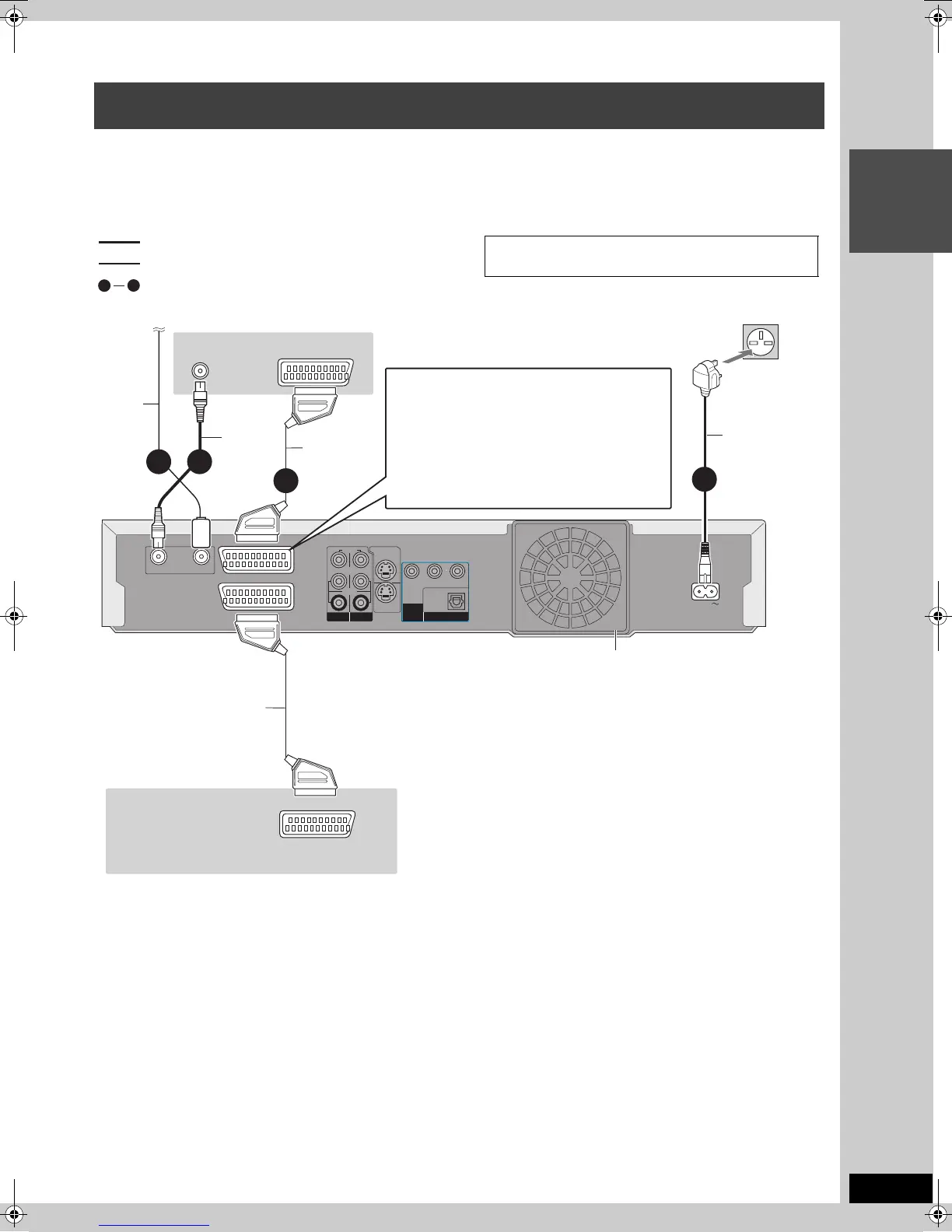

Connecting a television with 21-pin Scart terminal and Satellite/Digital terrestrial
receiver
Y
P
B
PR
COMPONENT
COMPONENT
VIDEO
VIDEO
OUT
OUT
(PROGRESSIVE/
(PROGRESSIVE/
INTERLACE)
INTERLACE)
AC IN
OPTICAL
OPTICAL
DIGITAL AUDIO OUT
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
(PCM/BITSTREAM)
AV2
(
DECODER / EXT
)
AV1
(
TV
)
AV4 IN
AV4 IN
OUT
OUT
AUDIO
AUDIO
VIDEO
VIDEO
R
L
R
L
S VIDEO OUT
S VIDEO OUT
S VIDEO
S VIDEO
AV4 IN
AV4 IN
RF OUT
RF OUT
RF IN
RF IN
VHF/UHF
RF IN
1
4
AV IN
VHF/UHF
RF IN
DVD/VCR
3
4
1 2
To the aerial
Aerial
lead
Cooling fan
RF coaxial
lead
AC mains lead
Connect only after
all other connection
s
are complete.
To household mains socket
(AC 220–240 V, 50 Hz)
Fully wired 21-pin
Scart lead
Fully wired
21-pin Scart
lead
AV1 terminal
≥If your television is equipped with RGB input
capability, by connecting with a fully wired 21-pin
Scart lead you can see video using RGB output
on this unit (➡ below).
≥If your television is equipped with Q Link
functions, by connecting with a fully wired 21-pin
Scart lead you can use these functions (➡ 70).
Television’s rear panel
Satellite/Digital terrestrial
receiver’s rear panel
This unit’s rear panel
indicates included accessories.
indicates accessories not included.
are required connections. Connect in the numbered order.
BE SURE TO READ THE CAUTION FOR THE AC MAINS
LEAD ON PAGE 2 BEFORE CONNECTION.
