Panasonic DMR-EH65EE

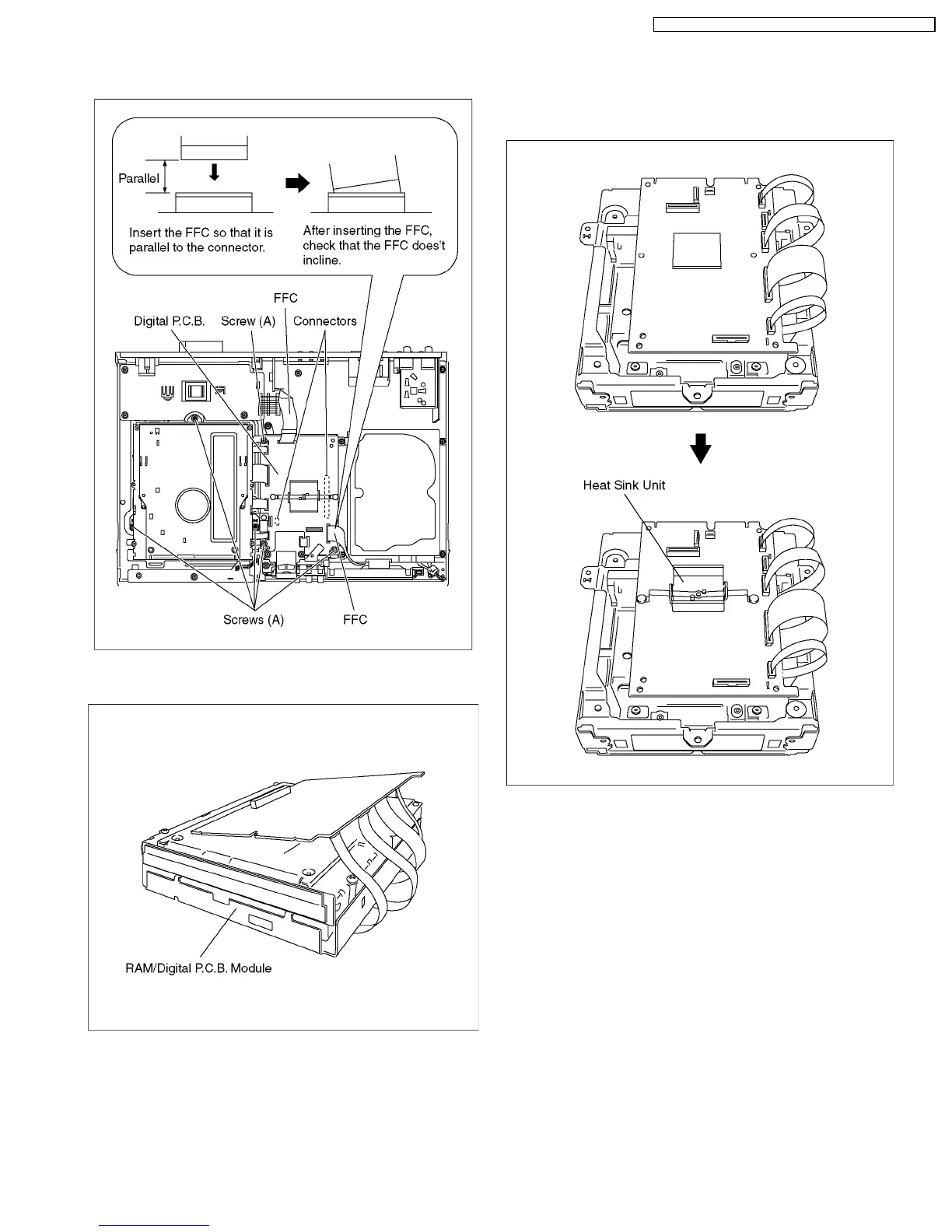

1. Remove 2 FFCs and 6 Screws (A).
2. Lift up Digital P.C.B. slightly so to disconnect Connectors to
remove Digital P.C.B.
3. Put Digital P.C.B. on RAM Drive and remove RAM/Digital
P.C.B. Module.
Note:
RAM/Digital P.C.B. Module as service part has no heat sink
unit.
Before returning to customer, heat sink unit should be
installed on Digital P.C.B..
33
DMR-EH65EE / DMR-EH65GC / DMR-EH65GCS / DMR-EH65GN
