Panasonic DMR-EH65EE

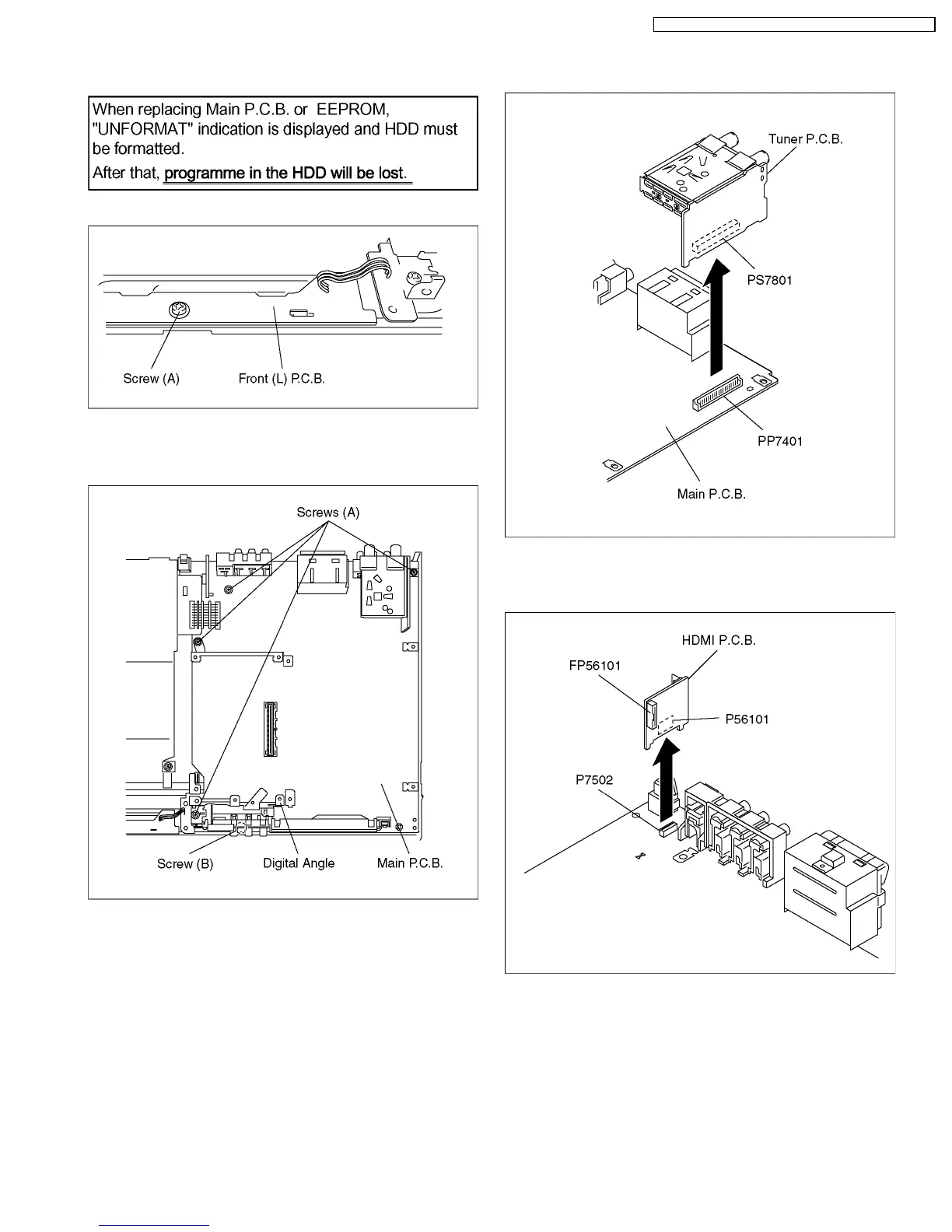

10.11. Main P.C.B. and Front (L)
P.C.B.
1. Remove 1 Screw (A).
2. Remove 4 Screws (A) and 1 Screw (B).
3. Remove Digital Angle to remove Main P.C.B. and Front (L)
P.C.B..
10.12. Tuner P.C.B.
1. Pull out the Tuner P.C.B. in the direction of the arrow.
10.13. HDMI P.C.B.
1. Pull out the HDMI P.C.B. in the direction of the arrow.
37
DMR-EH65EE / DMR-EH65GC / DMR-EH65GCS / DMR-EH65GN
