Panasonic DMR-EH65EE

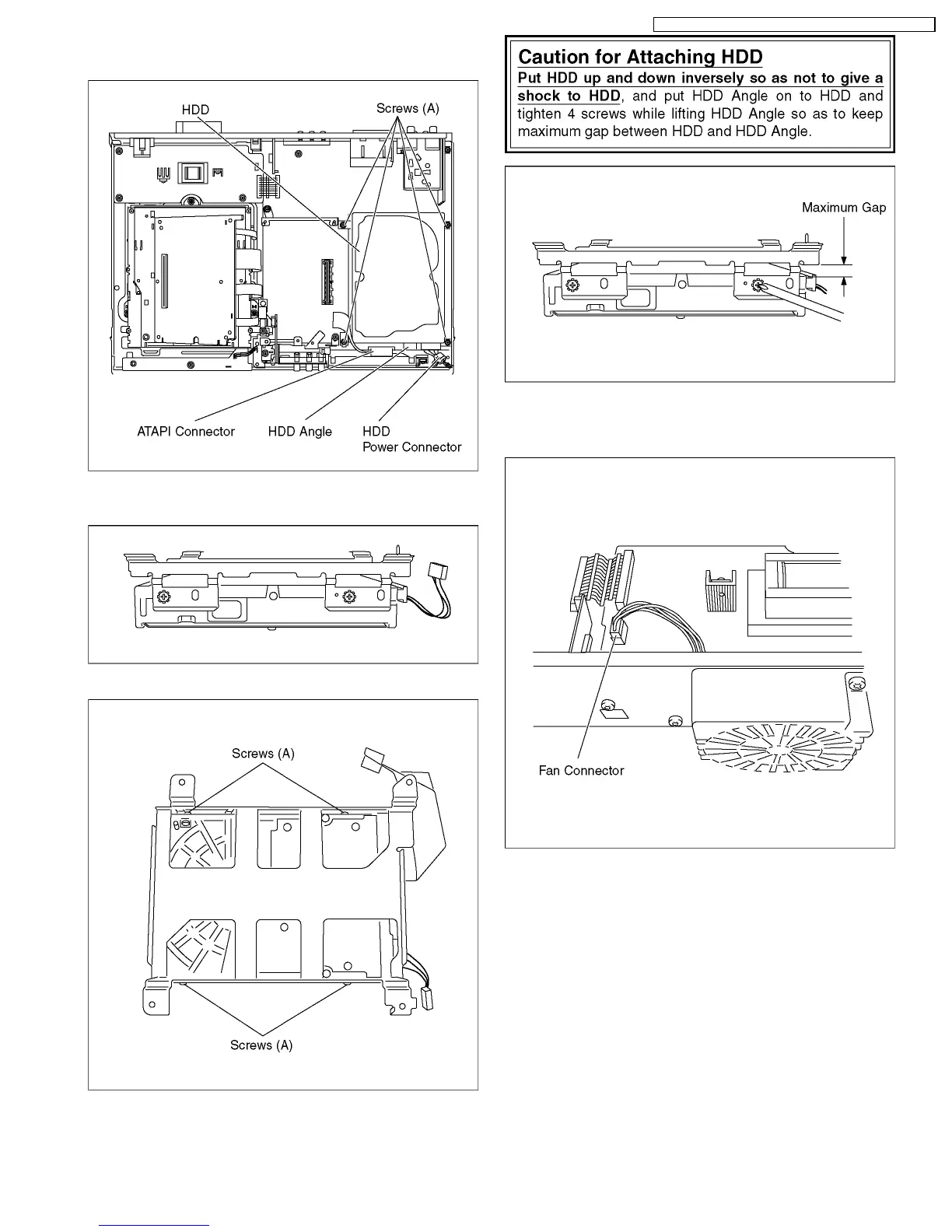

1. Remove ATAPI Connector and HDD Power Connector.
2. Remove 4 Screws (A) to remove HDD Angle with HDD.
3. Put HDD with HDD Angle up and down inversely so as not
to give a shock to HDD.
4. Remove 4 screws (A) remove HDD.
10.9. Rear Panel
1. Disconnect Fan Connector.
35
DMR-EH65EE / DMR-EH65GC / DMR-EH65GCS / DMR-EH65GN
