1. Turn off the power and pull out AC cord.
2. Remove the Top Case.
3. Put deck so that bottom can be seen.

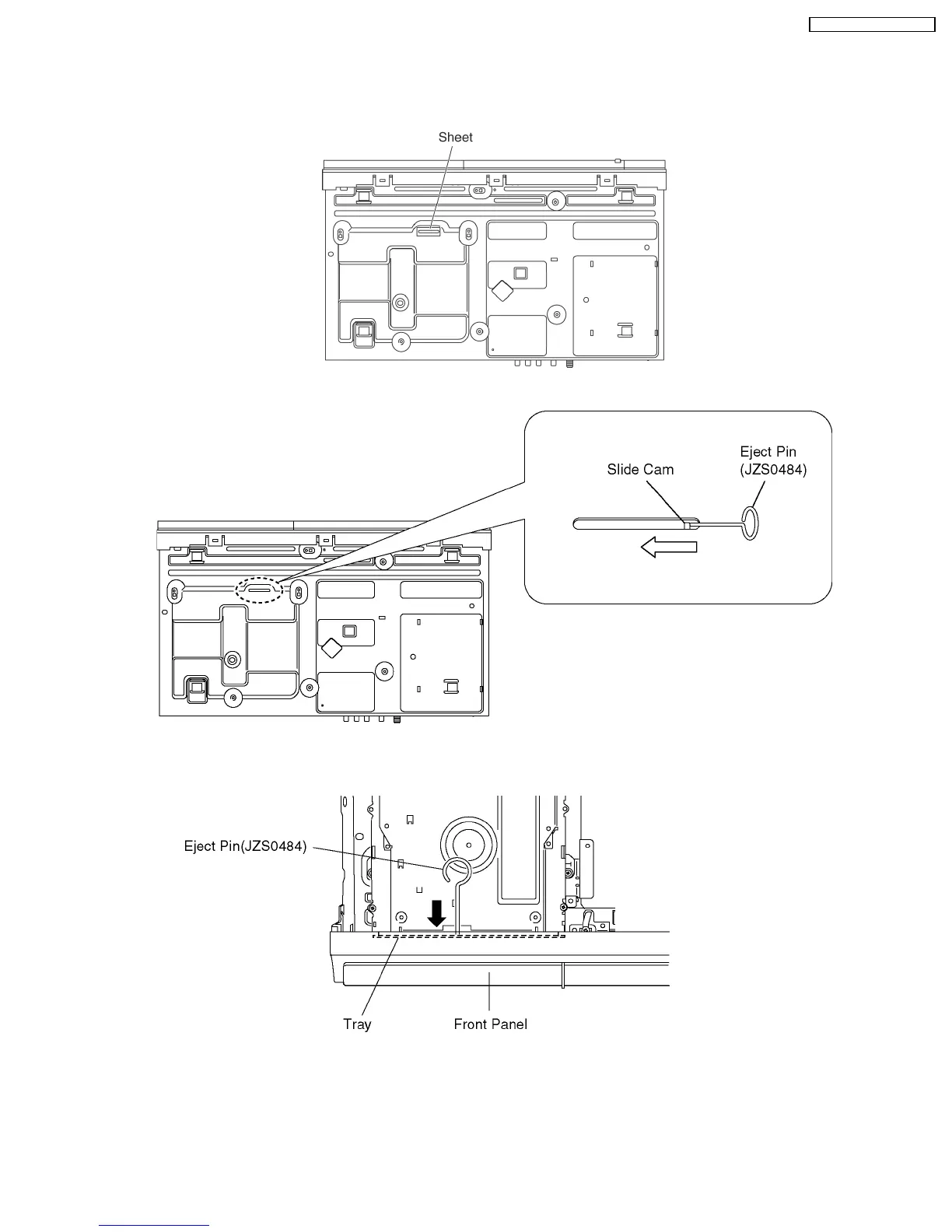

4. Remove the Sheet of the bottom side.
5. Slide SLIDE CAM by Eject Pin (JZJ0484) or minus screw driver (small) in the direction of arrow to eject tray slightly.
6. Put deck upward, and push out Tray by Eject Pin (JZS0484) or minus screw driver (small).
7. It is necessory to paste the Sheet again after ejection of the disc. Refer to the illustration of the Step 4 and below figure about
the portion of pasting the Sheet.
13
DMR-EZ28P / DMR-EZ28PC
