9 Assembling and Disassembling

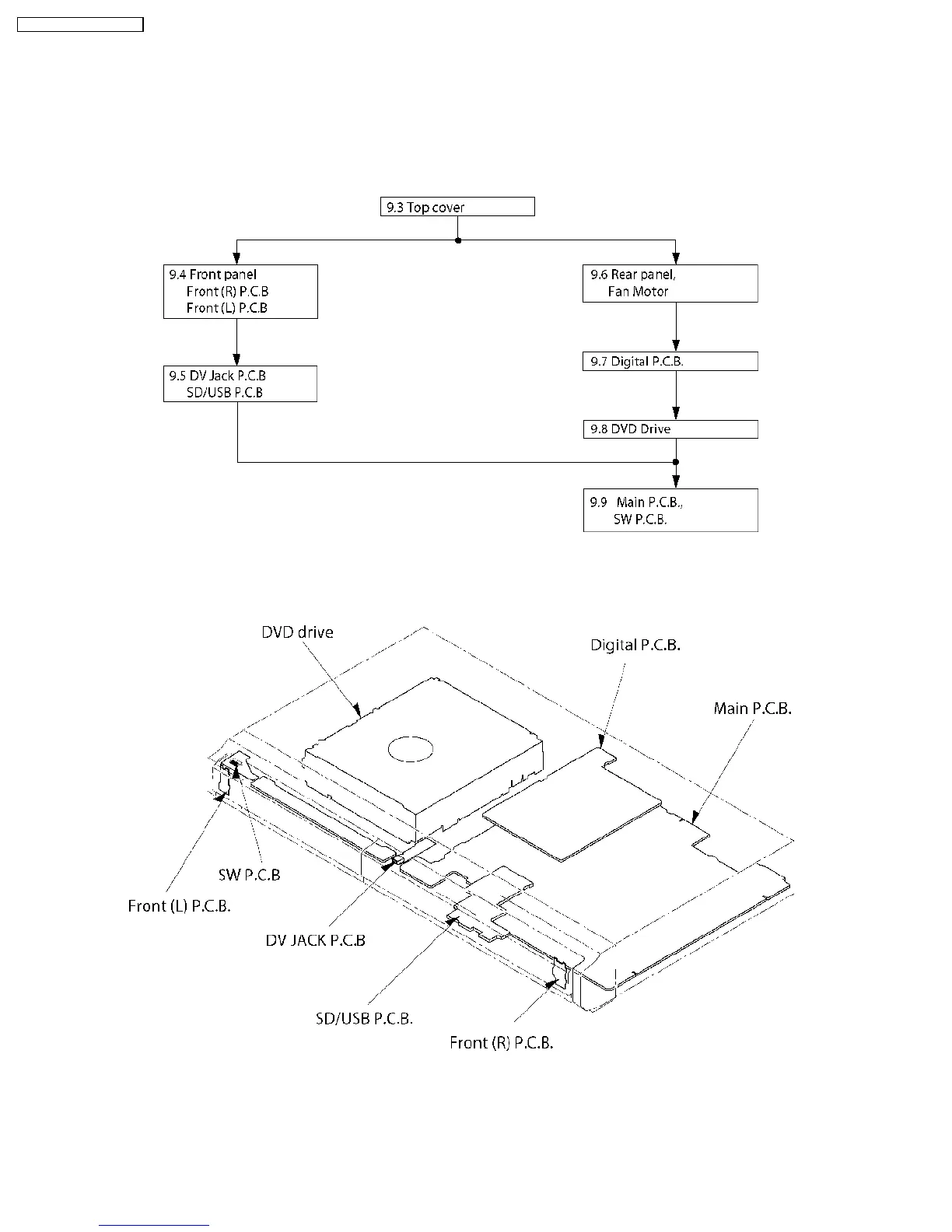

9.1. Disassembly Flow Chart
The following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the
servicing.
To assemble the unit, reverse the steps shown in the chart below.
9.2. P.C.B. Positions
26
DMR-EZ28P / DMR-EZ28PC
