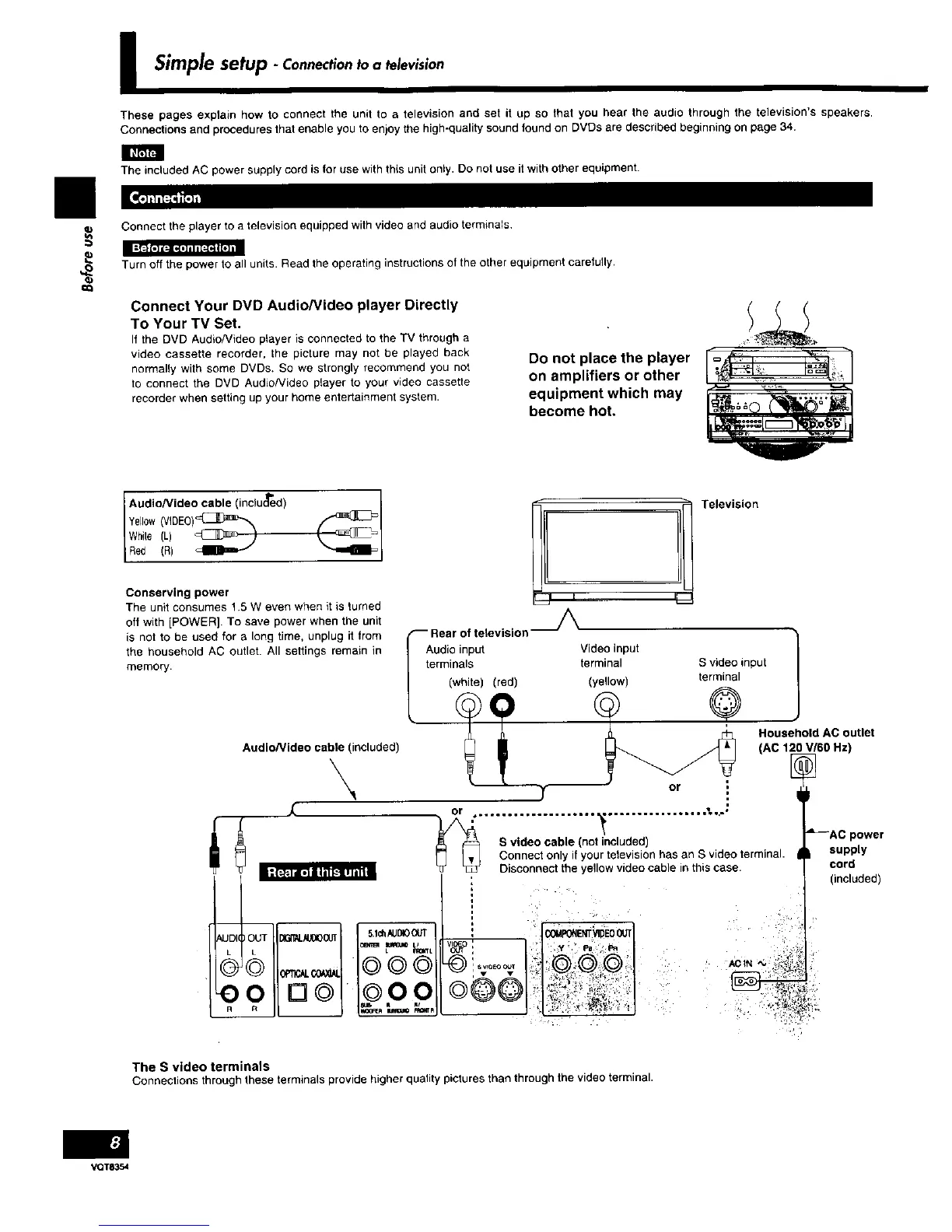

I Simplesetup - Connectiontoa television
These pages explain how to connect the unit to a television and set it up so that you hear the audio through the television's speakers.
Connections and procedures that enable you to enjoy the high-quality sound found on DVDs are described beginning on page 34.
I
The included AC power supply cord is for use with this unit only. Do not use it with other equipment.
Connect the player to a television equipped with video and audio terminals
Turn off the power to all units. Read the operating instructions of the other equipment carefully.
Connect Your DVD Audio/Video player Directly
To Your TV Set.
If the DVD AudioNideo player is connected to the TV through a
video cassette recorder, the picture may not be played back
normally with some DVDs. So we strongly recommend you not
to connect the DVD Audio/Video player to your video cassette
recorder when setting up your home entertainment system.
Do not place the player
on amplifiers or other
equipment which may
become hot.
Audio/Video cable (incluc_ed)
Ye[10w(VIDE0)_
White (L) _
Red (R
Conserving power
The unit consumes 15 W even when it is turned
off with [POWER]. To save power when the unit
is not to be used for a long time, unplug it from
the household AC outlet. All settings remaln in
memory.
Audio/Video cable (included)
\
Audio input
terminals
(white) (red)
li Television
Video input
terminal S video input
(yellow) terminal
®
i
y or ,
=
or ÷.°.°.°°.,. ...... ., • ,
S video cable (not included)
I,[
Connect only if your televisionhas an S videoterminal.
_J_ Disconnect the yellow video cable in thiscase.
kUDI
e
OUT _.i_Od00Lrr I 5'1#1_a0(_)!
o/no op.O
VIOEO •
Household AC outlet
(AC 120 V/60 Hz)
--AC power
supply
cord
(included)
The S video terminals
Connections throughthese terminals providehigher gualgy picturesthan throughthe video terminal,
