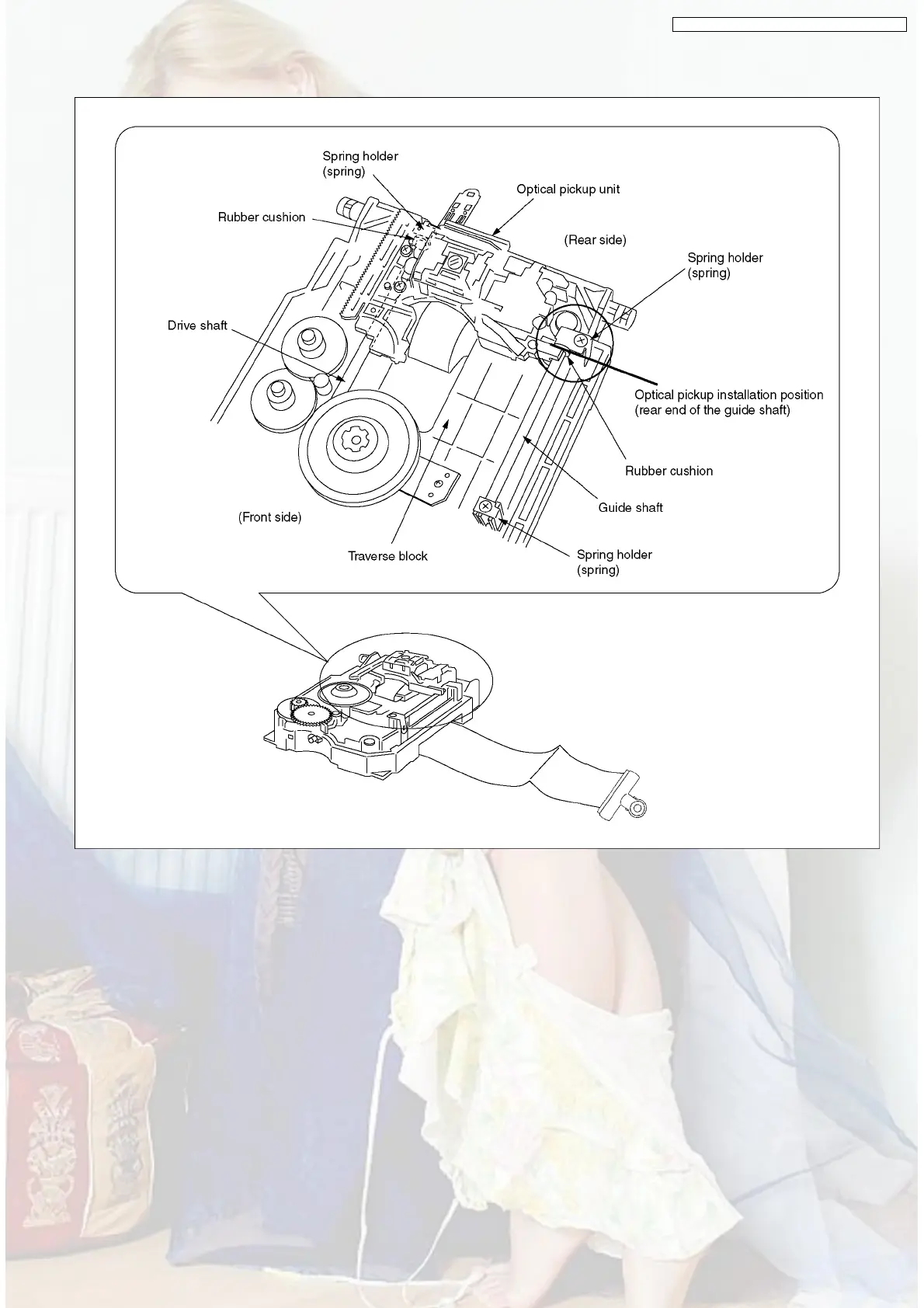

3. Install the optical pickup unit, spring, drive shaft, guide shaft, rubber cushion, and spring holder on the traverse block.
Fig. 3
Cautions to be taken when assembling the unit: Install the pickup unit so that it is located at the rear end of the guide shaft.
27
DVD-S35E / DVD-S35EB / DVD-S35EG / DVD-S31EG
