Panasonic EAIRC-MJ Series Installation Instructions

12

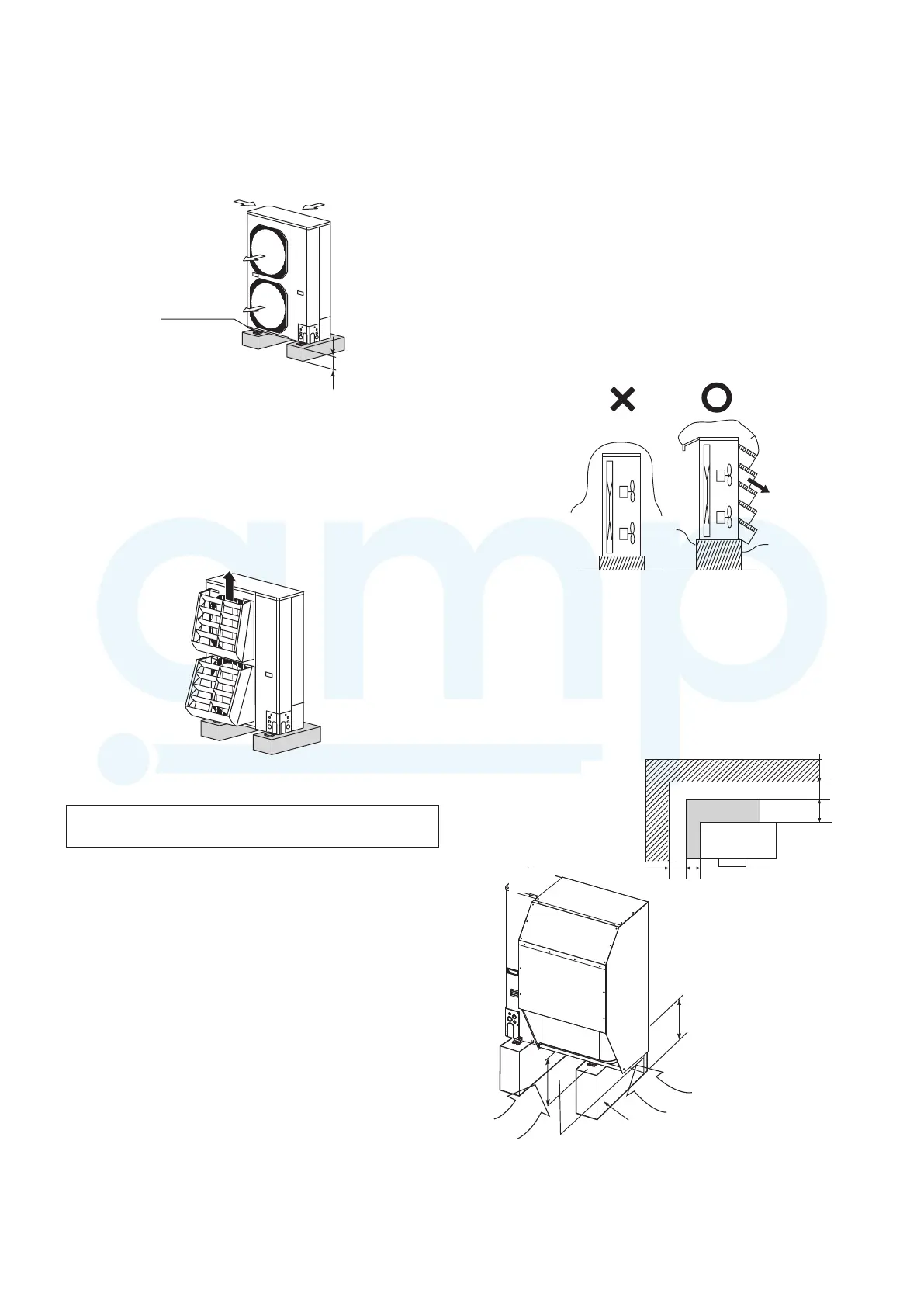

In case of multiple installations
●
Provide a solid base (concrete block, 10 × 40 cm beams or
equal), a minimum of 15 cm above ground level to reduce
humidity and protect the unit against possible water damage
and decreased service life. (Fig. 2-5)
●
Use lug bolts or equal to bolt down unit, reducing vibration
and noise.
Fig. 2-5
2-2. Air-Discharge Chamber for Top Discharge
Be sure to install an air-discharge chamber in the field when:
●
it is difficult to keep a space of min. 50 cm between the air
discharge outlet and an obstacle.
●
the air discharge outlet is facing a sidewalk and discharged
hot air may annoy passers-by. Refer to Fig. 2-6.
Fig. 2-6
Air intake
Air intake
Air discharge
Air discharge
(4 pieces)
Anchor bolts
Min. 15cm
Air discharge
In regions with significant snowfall, the outdoor unit
should be provided with a platform and snow-proof duct.
2-3. Installing the Unit in Heavy Snow Areas
In locations with strong wind, snow-proof ducting should be
fitted and direct exposure to the wind should be avoided as
much as possible.
■
Countermeasures against snow and wind
In regions with snow and strong wind, the following problems
may occur when the outdoor unit is not provided with a platform
and snow-proof ducting:
a) The outdoor fan may not run and damage to the unit may
occur.
b) There may be no air flow.
c) The tubing may freeze and burst.
d) The condenser pressure may drop because of strong wind,
and the indoor unit may freeze.
2-4. Precautions for Installation in Heavy Snow Areas
(1) The platform should be higher than the max. snow depth.
(Fig. 2-7)
Fig. 2-7
(2) The 2 anchoring feet of the outdoor unit should be used for
the platform, and the platform should be installed beneath
the air intake side of outdoor unit.
(3) The platform foundation must be firm and the unit must be
secured with anchor bolts.
(4) In case of installation on a roof subject to strong wind,
countermeasures must be taken to prevent the unit from
being blown over.
166
308
Fig. 2-8
Without snow-
proof ducting
(Low platform)
With snow-
proof ducting
(High platform)
Min. 100
Min. 100
Outdoor
Unit
Duct
Duct
Higher than the
maximum snow depth
Air intake
Platform (foundation)
About 1/2 of the unit height
Air intake
Duct
Outdoor Unit
Unit: mm
