Panasonic EAIRC-MJ Series Installation Instructions

15

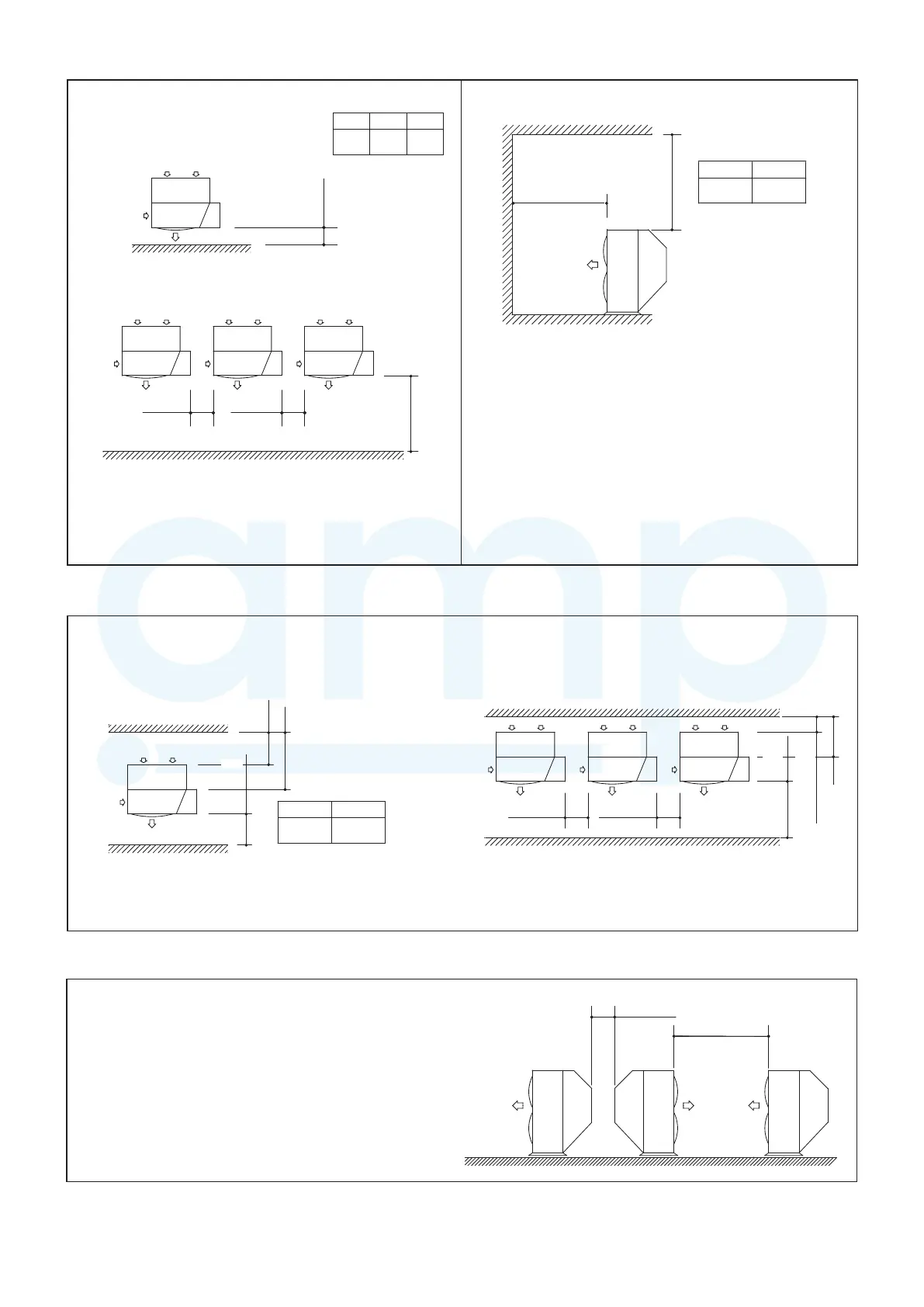

(1) Single-unit installation
(2) Multiple-unit installation (2 or more units)
Min. J or more
Min. I
or more
Note:
The amount of space is required for removing the screws
on the rear of the unit.
If in case the sufficient space for maintenance is ensured
on the rear of the outdoor unit, installation is possible
with the space of both sides of not less than 150mm
where marked with * mark.
●
Top is open:
Min. I
or more
[Obstacle to the front and rear of unit]
●
The top and both sides must remain open. Either the obstacle to the front or the obstacle to the rear must be no taller
than the height of the outdoor unit.
(1) Single-unit installation
OP
500 150
Q
Q
Unit: mm
Min. O or more
Min. P or more
Dimension Q
If a snow protection duct is attached after the unit is
installed, verify that dimension Q is 500 mm or more.
(2) Obstacles on both sides
Installation is possible with the maximum 3 outdoor units.
Unit: mm
Min. 250*
or more
Min. 250*
or more
Min.1000 or more Min.300 or more
Note:
The amount of space is required for removing the screws on the rear
of the unit. If in case the sufficient space for maintenance is ensured
on the rear of the outdoor unit, installation is possible with the space
of both sides of not less than 150mm where marked with * mark.
[Installation in front-rear rows]
●
The top and both sides must remain open.
Either the obstacle to the front or the obstacle to
the rear must be no taller than the height of the
outdoor unit.
Min. 300 or more
Min. 1500 or more
Unit: mm
Min. H or more
Unit: mm
HIJ
500 250* 1000
[Obstacle to the front of unit]
MN
500 300
Unit: mm
●
Top is blocked by an obstacle:
Min. M
or more
Min. N or more
