Battery Connection & Charging Information
5. Connect up to eleven other communication cables starting with the
first battery module, from the “LOW” to “UP” with the Ethernet RJ-45
cables. Up to 12 total modules may be string together.

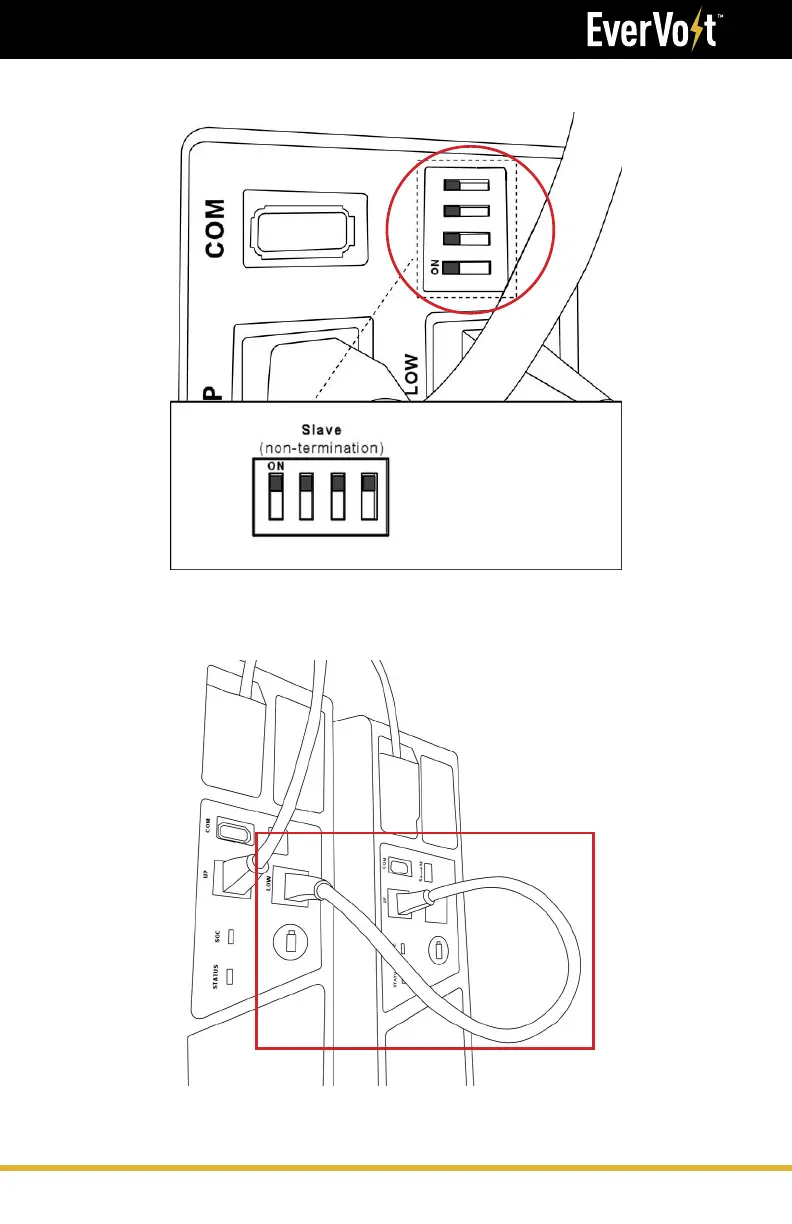

4. Position all the four sliders to the 'ON' position for all the batteries to
the Slave (non-termination) configuration.
6. On all the battery modules, confirm that all the sliders are positioned
to 'ON' for non-terminating batteries.
