2.3.2 Output Specifications (L14: Y0 to Y1, L30/L40/L60: Y0 to Y3)
Transistor (NPN) output
Item
Description
Insulation method
Optical coupler
Output type
Open collector
Rated load voltage
5 to 24 V DC
Allowable load voltage range
4.75 to 26.4 V DC
Max. load current 0.5 A
Max. inrush current
1.5 A
Output points per common 2 points/common (L14), 4 points/common (L30/L40/L60)
Off state leakage current
1
µ
A or less
On state voltage drop 0.3 V DC or less
Response time
(at 25 °C)
OFF→ON
10 µs or less (L14/L30)
5 µs or less (L40/L60)
(Load current: at 15 mA or more)
ON→OFF
40 µs or less (L14/L30)
15 µs or less (L40/L60)
(Load current: at 15 mA or more)
External power supply
(+ and – terminals)
Voltage
21.6 to 26.4 V DC
Current
15 mA or less
Surge absorber
Zener diode
Operating mode indicator
LED display

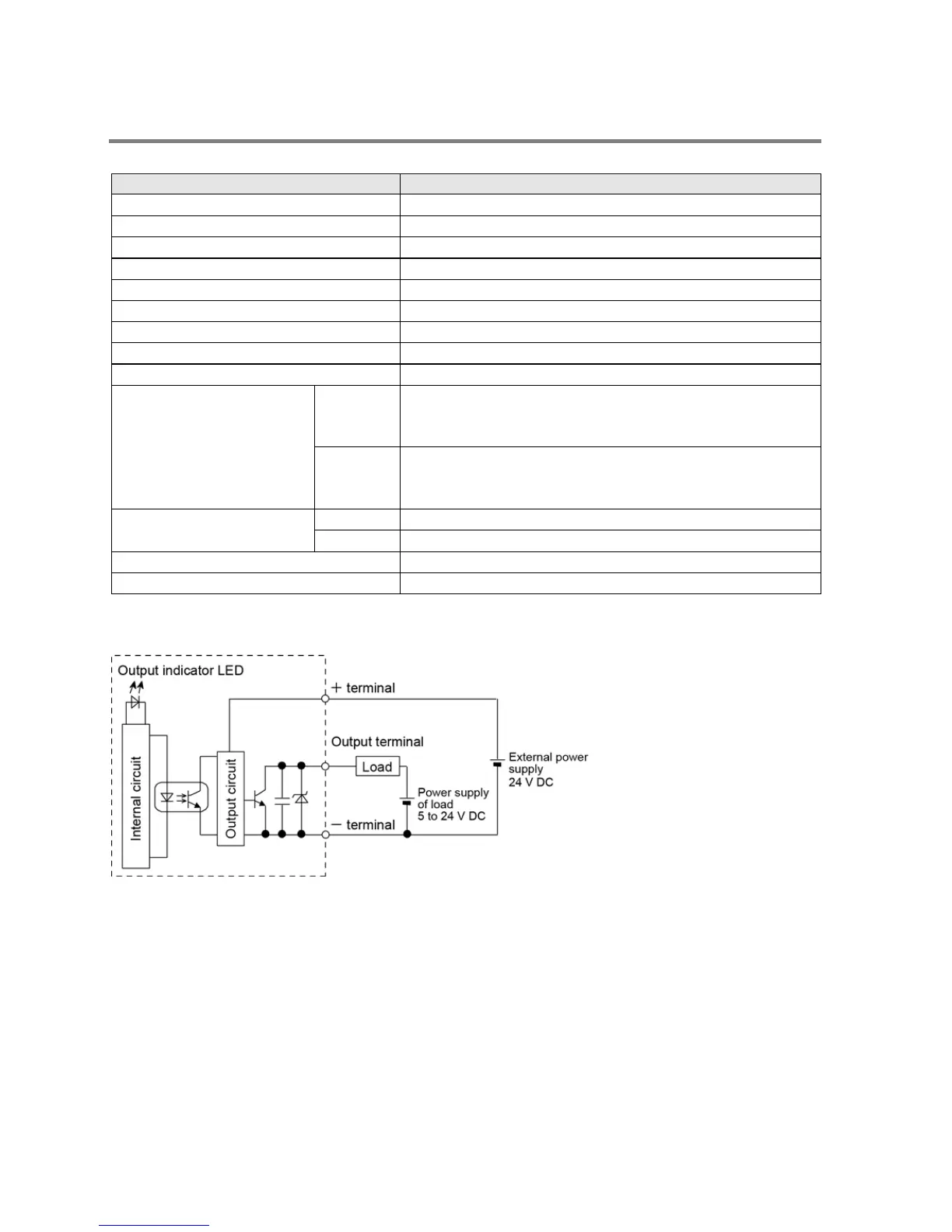

Circuit diagram
Limitations on number of simultaneous output on points
No limitation
