Panasonic FP-X0 L40MR - AFPX0 L40 R; AFP0 L40 MR; AFP0 L60 R; AFP0 L60 MR

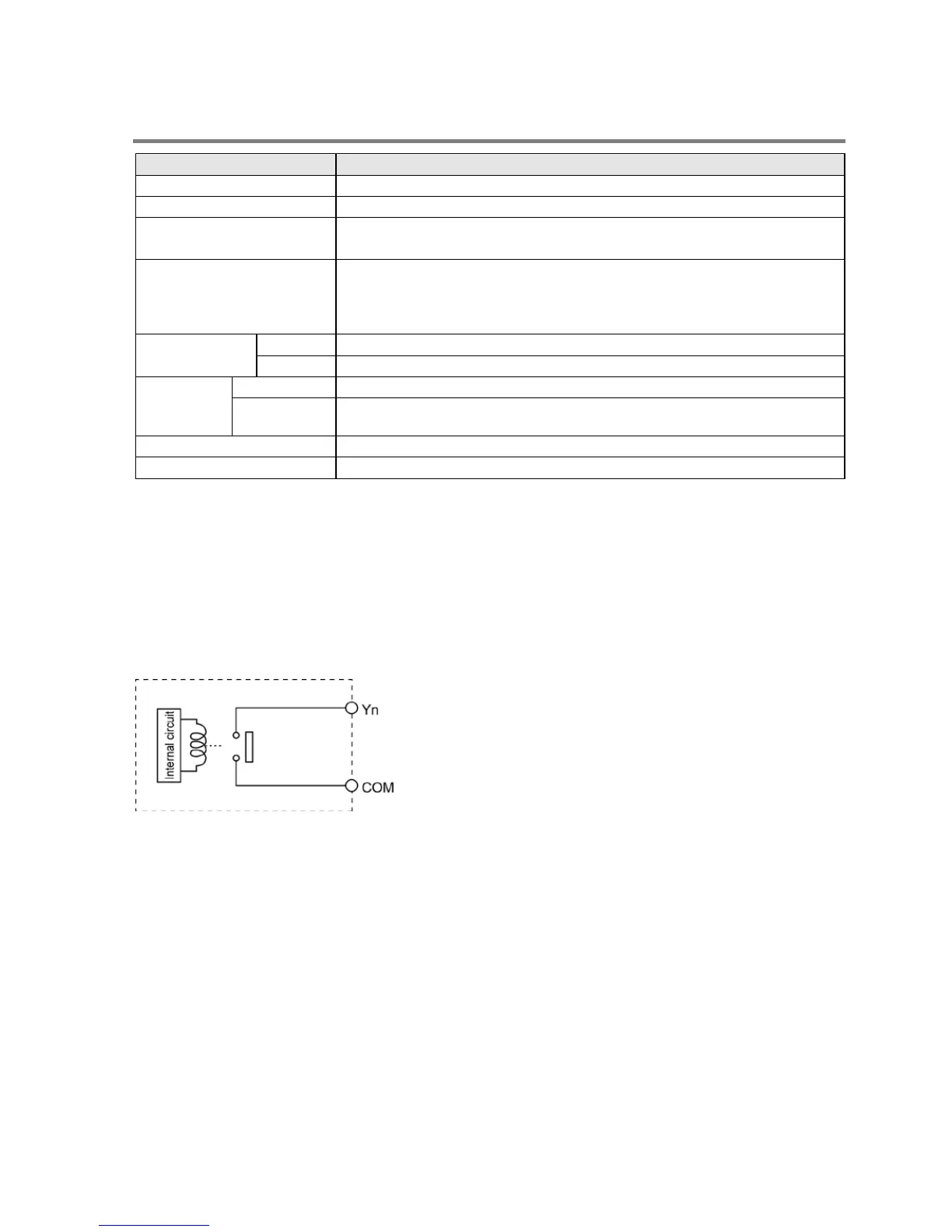

2.3.3 Output Specifications (L14: From Y2, L30/L40/L60: From Y4)
Item
Description
Insulation method
Relay insulation
Output type
1a output (Relay cannot be replaced)
Rated control capacity
(Resistance load)
Note)
2 A 250 V AC, 2 A 30 V DC (per point)
Output points per common
1 point/common x 2, 2 points/common x 1 (L14)
2 points/common x 1, 4 points/common x 2 (L30)
1 point/common x 2, 2 points/common x 1, 4 points/common x 2 (L40)
4 points/common x 6 (L60)
Response time
off
→
on
Approx. 10 ms
on→off Approx. 8 ms
Lifetime
Mechanical
20 million times or more (Frequency of switching: 180 times/min.)
Electrical
100 thousand times or more (Frequency of switching at the rated control
capacity: 20 times/min.)
Surge absorber
None
Operating mode indicator
LED display
Note) There are restrictions on the rated current for each output block. Each usable rated current is as
below.
L14: Y2 to Y5 (4 points) Max. 6A in total
L30: Y4 to YD (10 points) Max. 8A in total
L40: Y4 to YFD (12 points) Max. 8A in total
L60: Y4 to YB (8 points) Max. 8A in total, YC to Y1B (16 points) Max. 8A in total
Circuit diagram
