Num-
ber
Name Boolean
Ope-
rand
Description
Steps
FP0/FP-e
FP0R
FP
Σ
FP-X
FP-X0
FP2
FP2SH/FP10SH
F347
P347
Floating-point
type data
upper and
lower limit
control
FLIMT
PFLIMT
S1, S2,
S3, D
When (S1+1, S1)>(S3+1, S3),
(S1+1, S1) →(D+1, D)
When (S2+1, S2)<(S3+1, S3),
(S2+1, S2) → (D+1, D)
When (S1+1, S1)<or = (S3+1,
S3)<or =(S2+1, S2), (S3+1,
S3)
→
(D+1, D)
17
F348
P348
Floating-point
type data
dead-band
control
FBAND
PFBAND
S1, S2,
S3, D
When (S1+1, S1)>(S3+1, S3),
(S3+1, S3)−(S1+1, S1)→(D+1, D)
When (S2+1, S2)<(S3+1, S3),
(S3+1, S3)−(S2+1, S2)→ (D+1, D)
When (S1+1, S1)<or = (S3+1,
S3)<or =(S2+1, S2), 0.0→(D+1, D)
17
F349
P349
Floating-point
type data zone
control
FZONE
PFZONE
S1, S2,
S3, D
When (S3+1, S3)<0.0,
(S3+1, S3)+(S1+1, S1)→(D+1, D)
When (S3+1, S3)=0.0, 0.0→ (D+1,
D)
When (S3+1, S3)>0.0, (S3+1,
S3)+(S2+1, S2)
→
(D+1, D)
17
F350
P350
Floating-point
type data maxi-
mum value
FMAX
PFMAX
S1, S2,
D
Searches the maximum value in the
real number data table between the
area selected with “S1” and “S2”,
and stores it in the (D+1, D). The
address relative to “S1” is stored in
(D+2).
8
F351
P351
Floating-point
type data mini-
mum value
FMIN
PFMIN
S1, S2,
D
Searches the minimum value in the
real number data table between the
area selected with “S1” and “S2”,
and stores it in the (D+1, D). The
address relative to “S1” is stored in
(D+2).
8
F352
P352
Floating-point
type data total
and mean
values
FMEAN
PFMEAN
S1, S2,
D
The total value and the mean value
of the real number data from the
area selected with “S1” to “S2” are
obtained. The total value is stored in
the (D+1, D) and the mean value is
stored in the (D+3, D+2).
8
F353
P353
Floating-point
type data sort
FSORT
PFSORT
S1, S2,
S3
The real number data from the area
specified by “S1” to “S2” are stored
in ascending order (the smallest
word is first) or descending order
(the largest word is first).
8
F354
P354
Scaling of real
number data
FSCAL
PFSCAL
S1, S2,
D
Scaling (linearization) on a real
number data table is performed, and
the output (Y) to an input value (X) is
calculated.
12
*1 *2 *3 *3

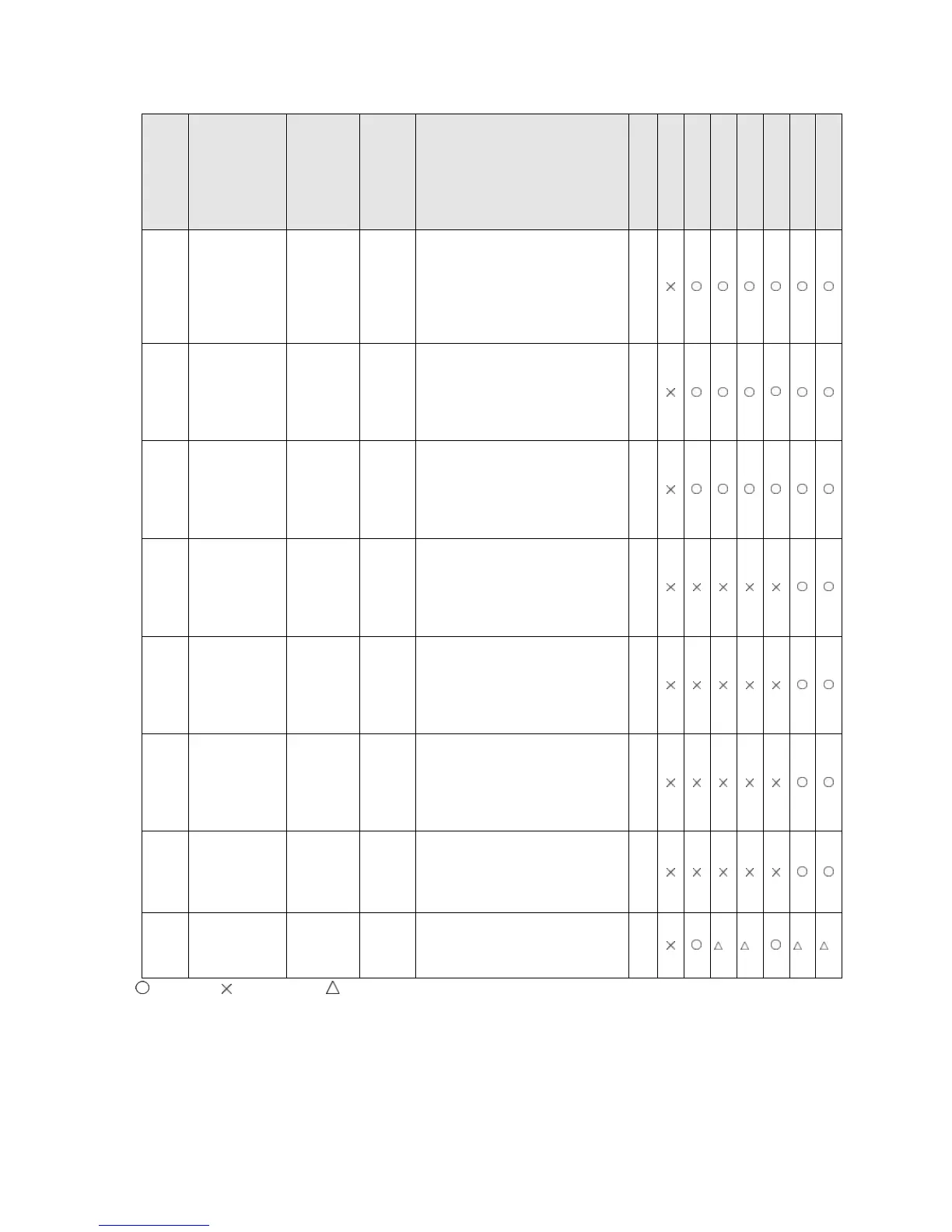

: Available, : Not available, : Not available partially
*1) This instruction is available for FPΣ 32k type.
*2) This instruction is available for FP-X Ver. 1.13 or later.
*3) This instruction is available for FP2/FP2SH Ver. 1.5 or later. FP10SH cannot be used.
