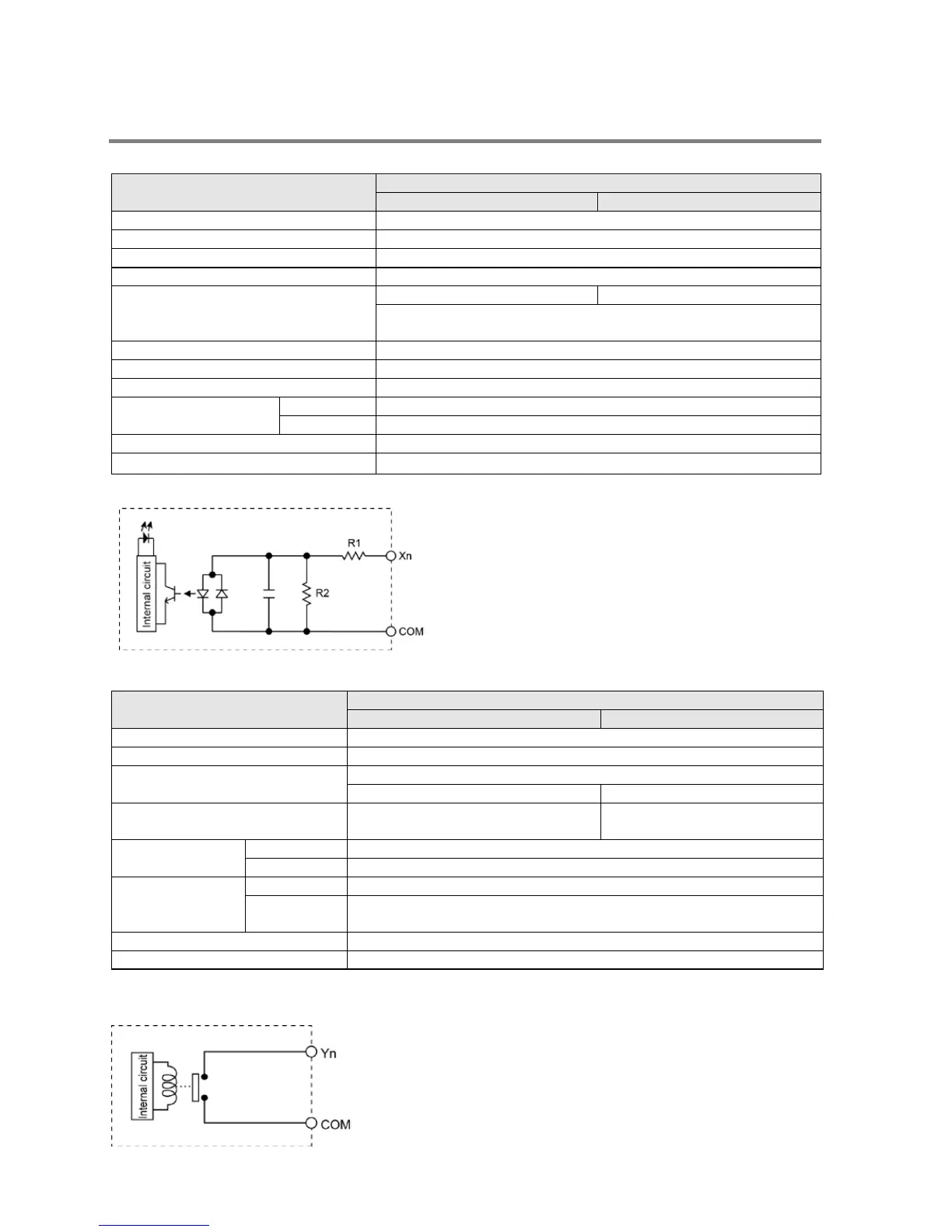

3.1.3 Input and output specifications
Input specifications
Item
Description
E16
E30
Insulation method
Optical coupler
Rated input voltage
24 V DC
Operating voltage range
21.6 to 26.4 V DC
Rated input current
Approx. 4.3 mA
Input points per common
8 points/common
16 points/common
(Either the positive or negative of input power supply can be
connected to common terminal.)
Min. on voltage/Min. on current
19.2 V DC/3 mA
Max. off voltage/Max. off current
2.4 V DC/1 mA
Input impedance
Approx. 5.6 k
Ω
Response time
off→on
0.6 ms or less
on→off
0.6 ms or less
Operating mode indicator
LED display
EN61131-2Applicable type
TYPE3 (however, according to the above specifications)
Circuit diagram
: R1=5.6 k
Ω
R2=1 k
Ω
Relay output specifications
Item
Description
E16/E14
E30
Insulation method
Relay insulation
Output type
1a output (Relay cannot be replaced.)
Rated control capacity
Note)
2 A 250 V AC, 2 A 30 V DC
(6 A or less/common)
(8 A or less/common)
Output points per common
1 point/common,
3 points/common
1 point/common,
4 points/common
Response time
off→on
Approx. 10 ms
on→off
Approx. 8 ms
Lifetime
Mechanical
20 million times or more (Frequency of switching: 180 times/min.)
Electrical
100 thousand times or more (Frequency of switching at the rated
control capacity: 20 times/min.)
Surge absorber
None
Operating mode indicator
LED display
Note) Resistance load
Circuit diagram
