Installation space

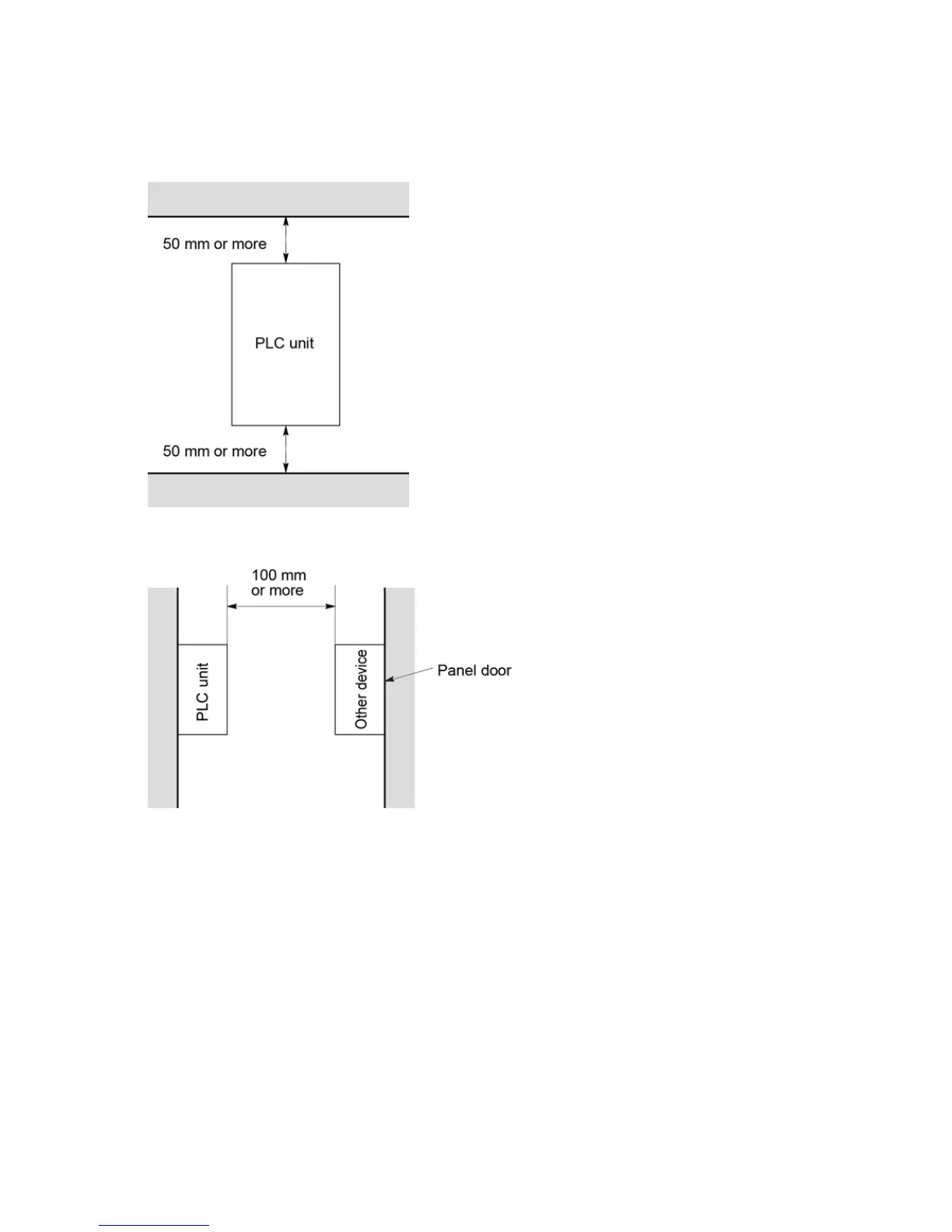

• Leave at least 50mm of space between the wiring ducts of the unit and other devices to allow heat
radiation and unit replacement.
• Maintain at least 100mm of space between devices to avoid adverse affects from noise and heat when
installing a device or panel door to the front of the PLC unit.
• Leave at least 100mm of space opean from the front surface of the control unit in order to allow room
for programming tool connections and wiring.
