3.2 Connectors of the servo driver
5 Configure the FP0H RTEX unit
To configure the FP0H RTEX unit, use the Positioning table configurator PM7 (RTEX) in the
PC configuration software Control FPWIN Pro 7.
Click on the following link to download Control FPWIN Pro 7 from our Panasonic Download
Center: PC programming software Control FPWIN Pro 7
1. Connect the FP0H PLC to your PC using a USB cable.

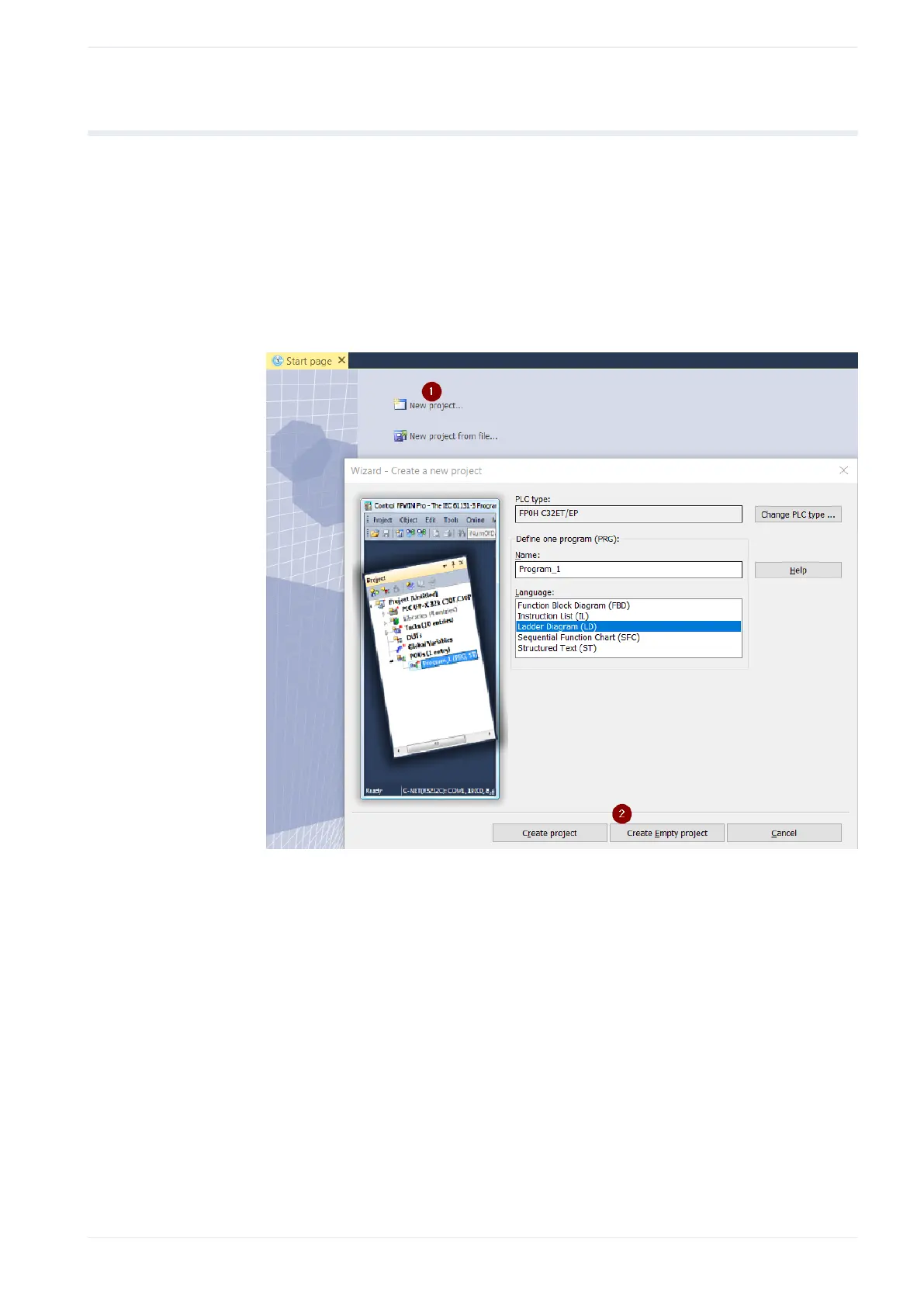

2. Start FPWIN Pro 7 and create an empty FP0H project:
3. Double-click “PLC” in the navigator.
QS2004_V1.0_EN 11
