3.5 Precautions when Wiring Ethernet Port (GT32T1)
- Although more than one GT32T1 can be connected using a hub, communication is performed with one
unit each. Specify each destination to communicate.
- Use a UTP cable (unshielded cable) for the Ethernet cable, and take measures for noises such as
installing a ferrite core if necessary.
- It conforms to CE marking. As conditions, the following wiring is required.

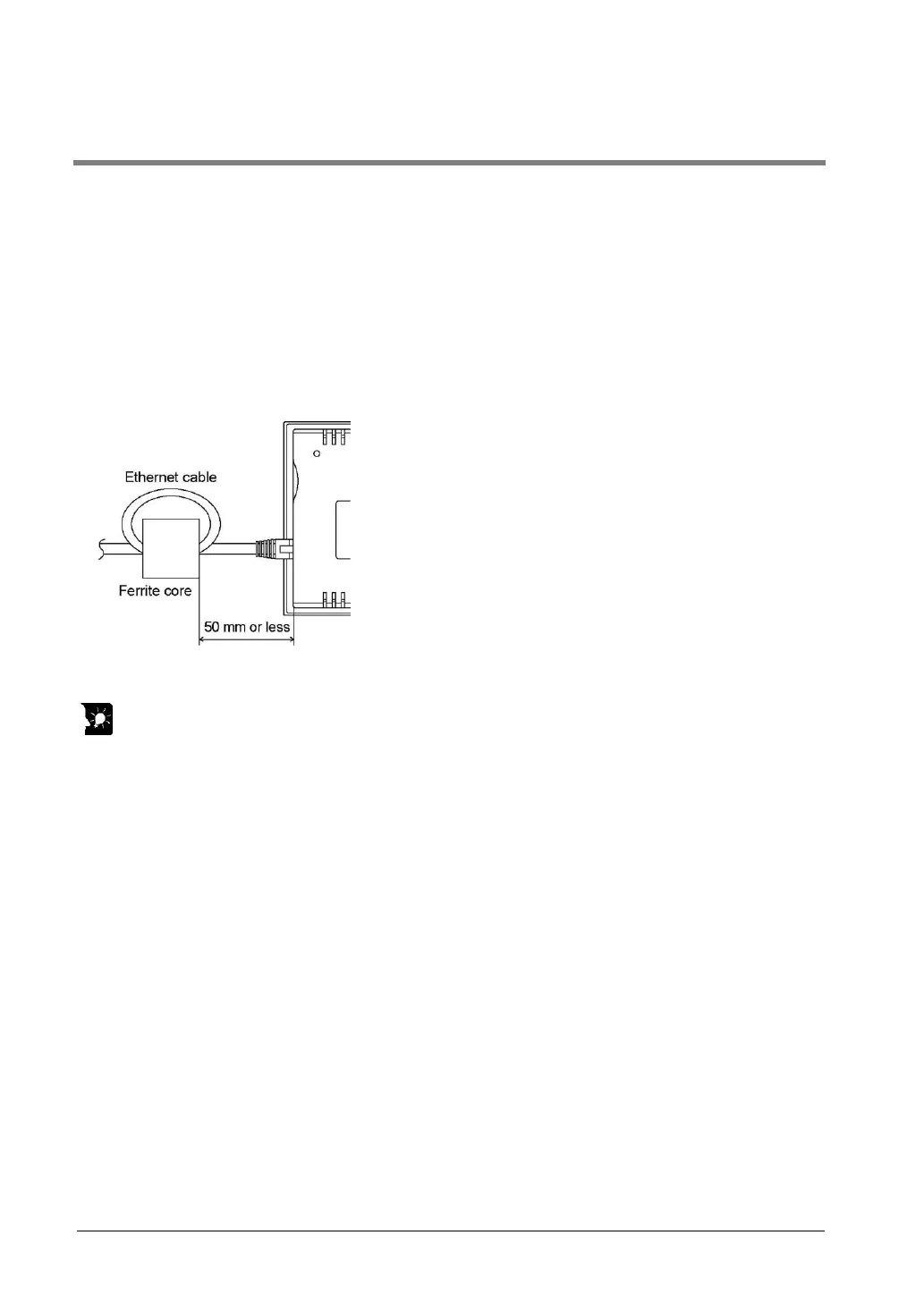

1. Do not use a shield wire for the Ethernet cable.
2. Install a ferrite core to the Ethernet cable and make one turn.
(Recommended ferrite core: Kitagawa Industries SFC-10 or equivalent)
GT32T1
Key Point:
The CE marking standards that the GT32 conforms to
European EMC directive 2004/108/EC
European EMC standards (EN61131-2)
