16
VQT2D01
Preparation
Before using
2

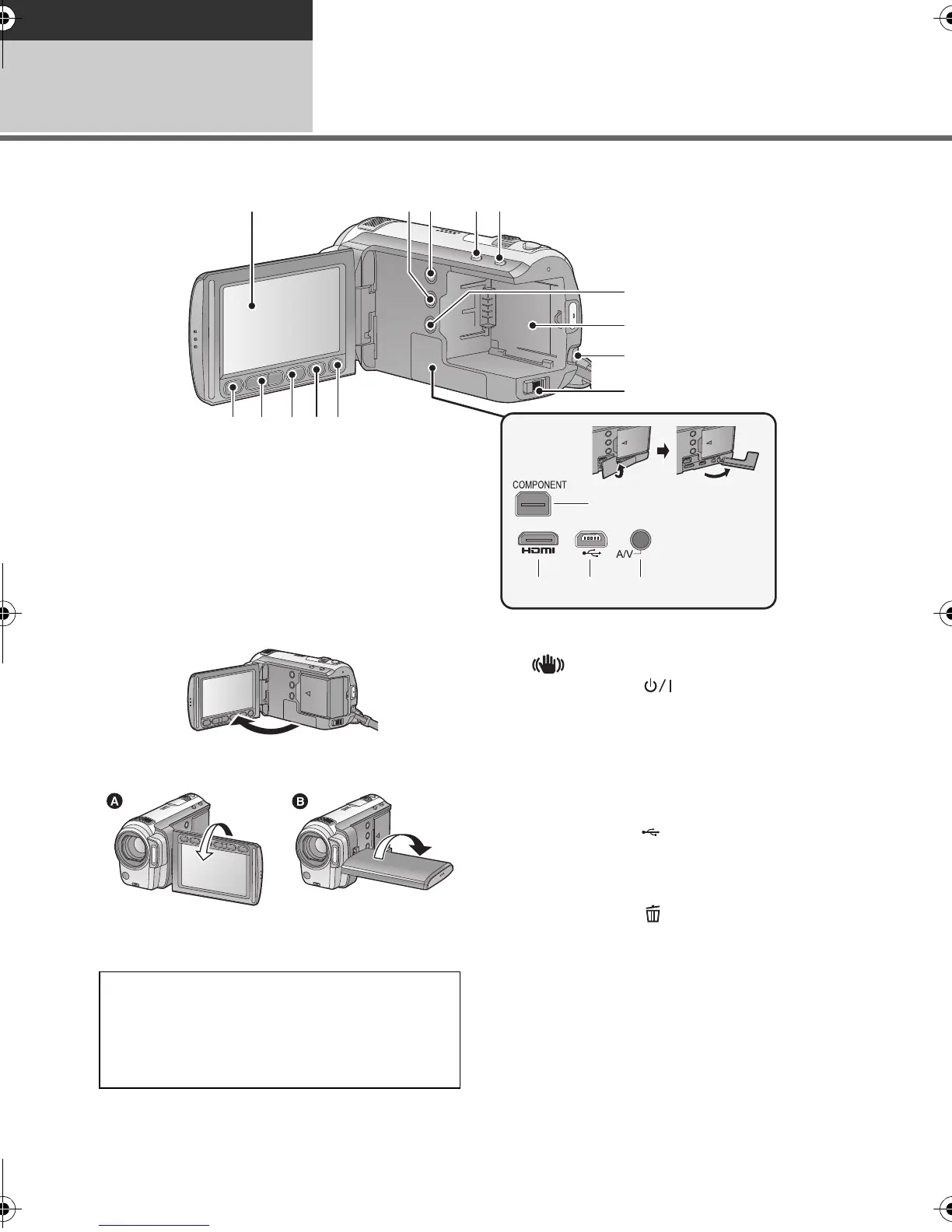

Parts identification and
handling
1 LCD monitor (Touch screen) (l 28, 36)
≥ It can open up to 90o.
≥ It can rotate up to 180o A towards the lens or
90o B towards the opposite direction.
2 Manual button [MANUAL] (l 66)
3 PRE-REC button [PRE-REC] (l 45)
4 Intelligent auto button [iA] (l 39)
5 Optical image stabilizer button
[ /O.I.S.] (l 50)
6 Power button [ ] (l 26)
7 Battery holder (l 20)
8 Battery release lever [BATT] (l 20)
9 Mode switch (l 27)
10 Component terminal [COMPONENT]
(l 90)
11 HDMI mini connector [HDMI] (l 90, 94)
12 USB terminal [ ] (l 96, 104, 114)
13 Audio-video output terminal [A/V]
(l 90, 103)
≥ Use the AV cable (only the supplied cable).
14 Delete button [ ] (l 80)
15 Video light button [LIGHT] (l 52)
16 Menu button [MENU] (l 29)
17 Adjust zoom buttons (l 49)
≥ These buttons function in the same manner as
the zoom lever. Changing the thumbnail
display and adjusting the volume can be done.
18 Sub recording start/stop button (l 38)
≥ This button functions in the same manner as
the recording start/stop button.
1
23 45
9
8
7
6
1415161718
11 12 13
10
Due to limitations in LCD production
technology, there may be some tiny bright or
dark spots on the LCD monitor screen.
However, this is not a malfunction and does
not affect the recorded picture.
