Panasonic HDC-SDX1 - Preparation and Setup; Parts Identification and Handling

8
VQT2W75
Preparation
Before using
1

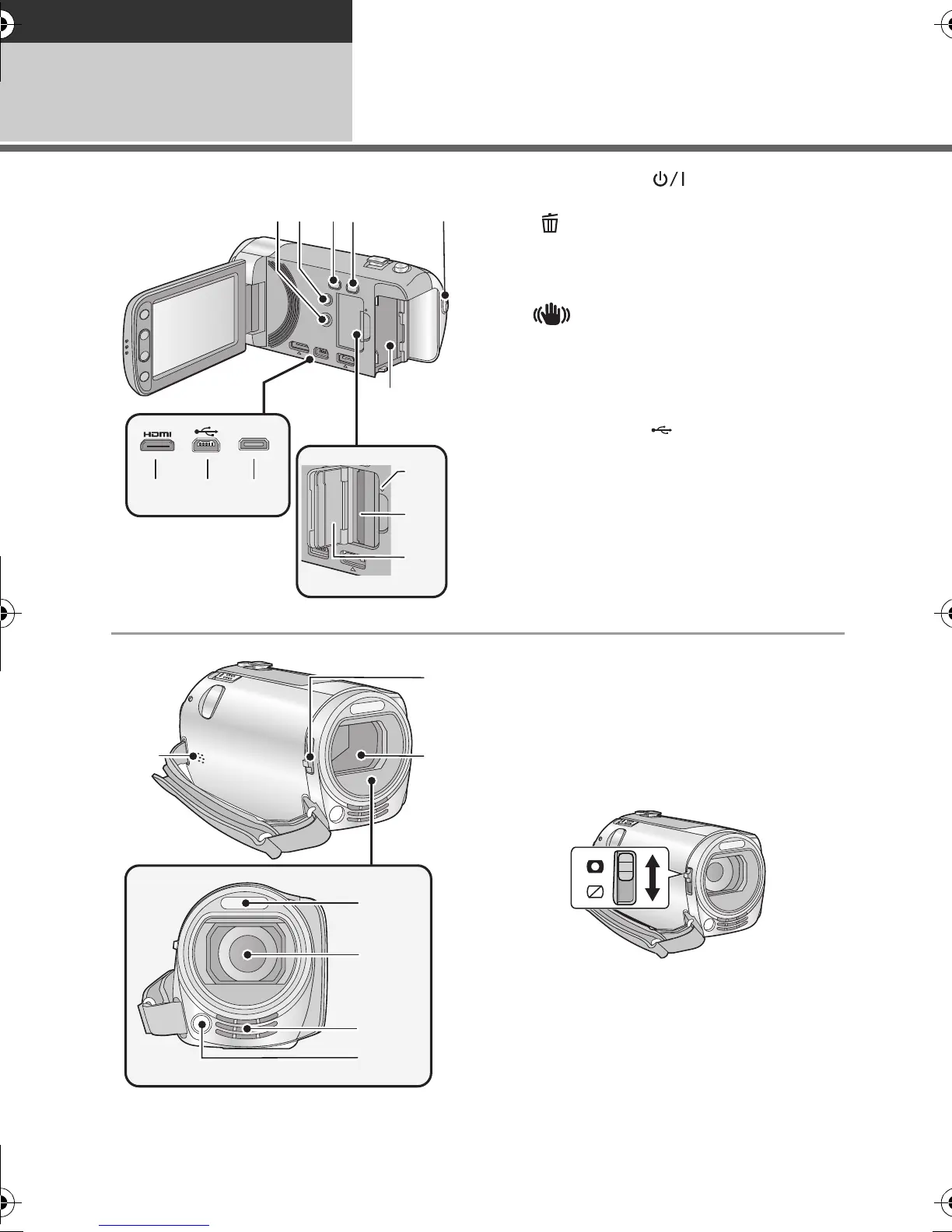

Parts identification and
handling
1 Power button [ ] (l 17)
2 Delete/Video light button
[ /LIGHT] (l 43, 76)
3 Intelligent auto/Manual button
[iA/MANUAL] (l 26, 63)
4 Optical image stabilizer button
[ O.I.S.] (l 40)
5 Recording start/stop button (l 22)
6 Battery holder (l 12)
7 HDMI mini connector [HDMI]
(l 82, 86)
8 USB terminal [ ] (l 89, 103, 109)
9 AV multi connector [AV MULTI]
(l 82, 94)
≥ Use the AV multi cable (only the supplied
cable).
10 Access lamp [ACCESS] (l 16)
11 Card slot (l 16)
12 SD card cover (l 16)
13 Speaker
14 Lens cover opening/closing switch
When not using the unit, close the lens
cover to protect the lens.
≥ Slide the opening/closing switch to
open/close the cover.
15 Lens cover
16 Built-in flash (l 46)
17 Lens
18 Internal stereo microphones
19 Video light (l 43, 62)
12 34
6
5
AV MULTI
12
7 8 9
10
11
13
17
16
19
15
14
18
