KX-FT931LA-B

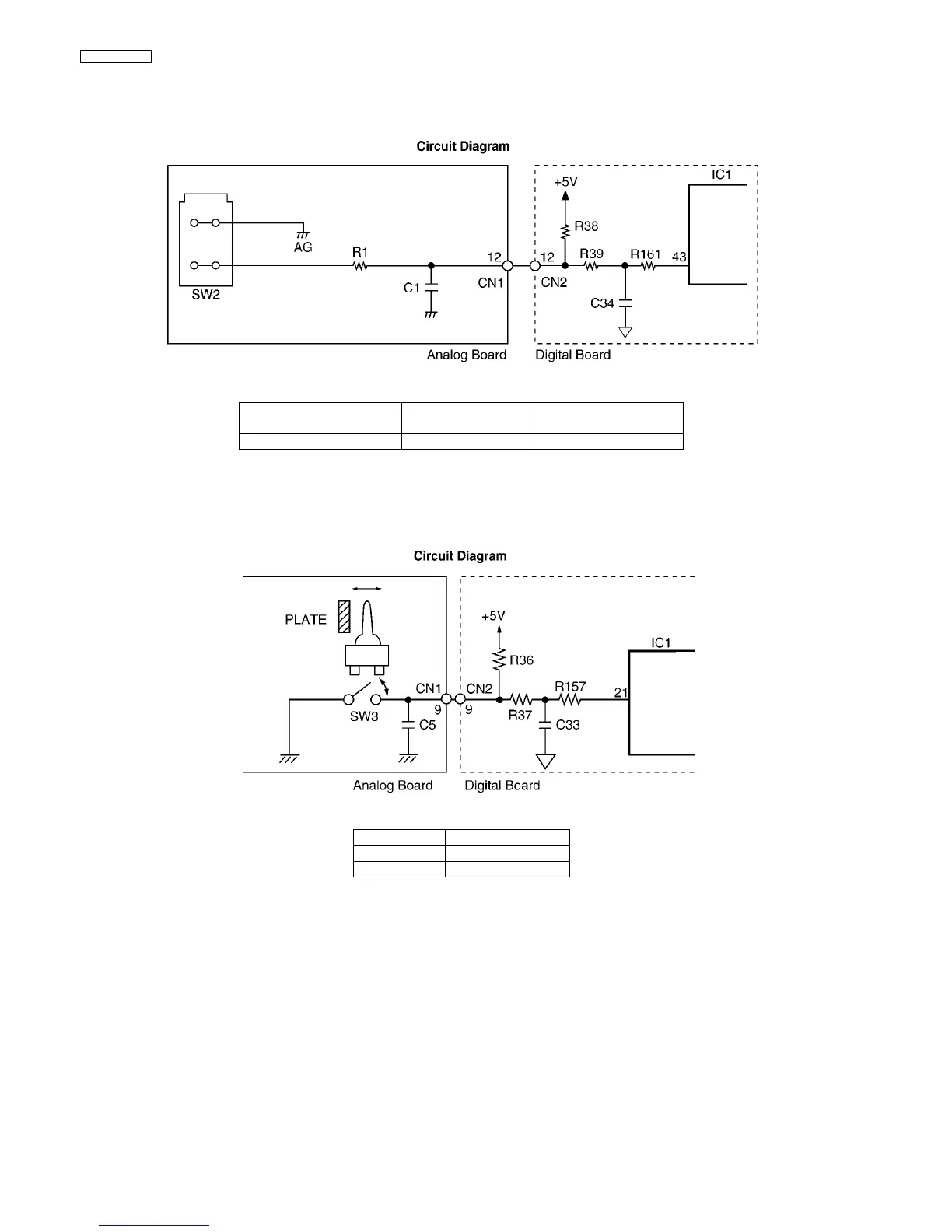

6.5.3. Hook Switch (SW2)
When the handset is lifted, the switch turns ON, and the signal at pin 43 of IC1 becomes low.
When the handset is returned, the switch turns OFF, and the signal at pin 43 of IC1 becomes high.
Digital Board
6.5.4. Jam Sensor (SW3)
The JAM sensor is a detection switch for determining whether the recording paper edge is in the correct position or not. If the
recording paper cannot be detected correctly at the JAM sensor position even when recording paper is present, then JAM is dis-
played. If the recording paper is at the sensor position, then the switch turns on the IC1-21pin switches to a high level.
Analog Board
SW Signal
ON-Hook OFF High level (IC1-43 pin)
OFF-Hook ON Low level
Signal (IC1-21 Pin)
Paper Low level
No paper High level
