2.5 Installing the Extension Cards (DLC8/SLC8)
14 Getting Started
BRI1/BRI2 Card
Accessories (included): Extension Bolt × 1, Strap × 1, Optional Card Label × 1 (for BRI1 card)
User-supplied (not included): RJ45 connector
Notes
• Connect these optional service cards to the trunk through an NT1; do not connect to the U
interface of the trunk directly.
• These optional service cards have 100 Ω of terminal resistance. For use in point to multi-
point connection, the cards must be placed at the end of the bus.
2.5 Installing the Extension Cards (DLC8/SLC8)
Accessories (included): Extension Bolt × 1, Strap × 1
User-supplied (not included): RJ45 connector or RJ11 connector*
* The connector type may be RJ45 or RJ11 depending on the country/area.

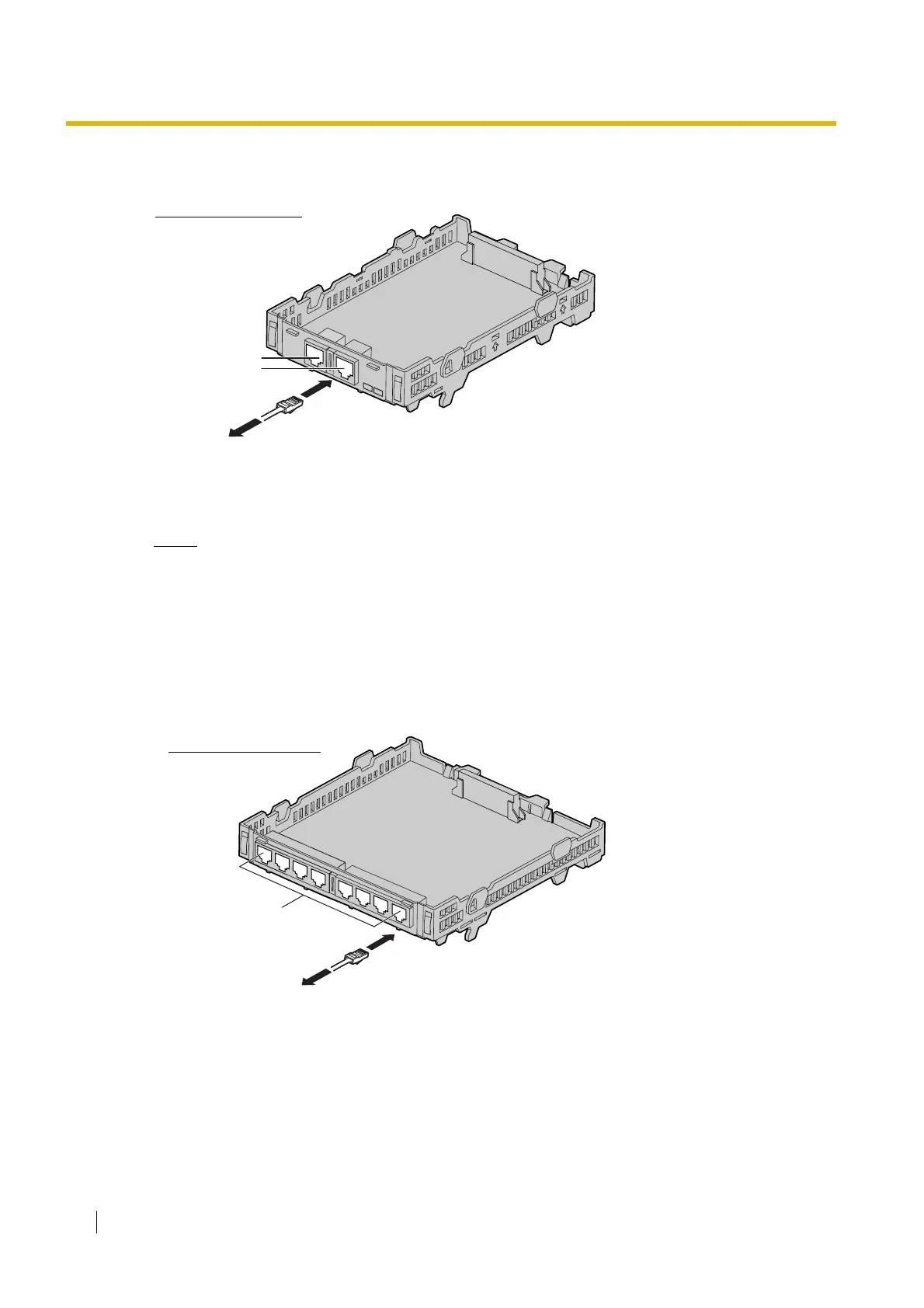

To NT 1
RJ45 (LINE 1)
RJ45 (LINE 2)
Example: BRI2 Card
To extension
RJ45
Example: DLC8 Card
