Panasonic KX-TDA15

Connection Example

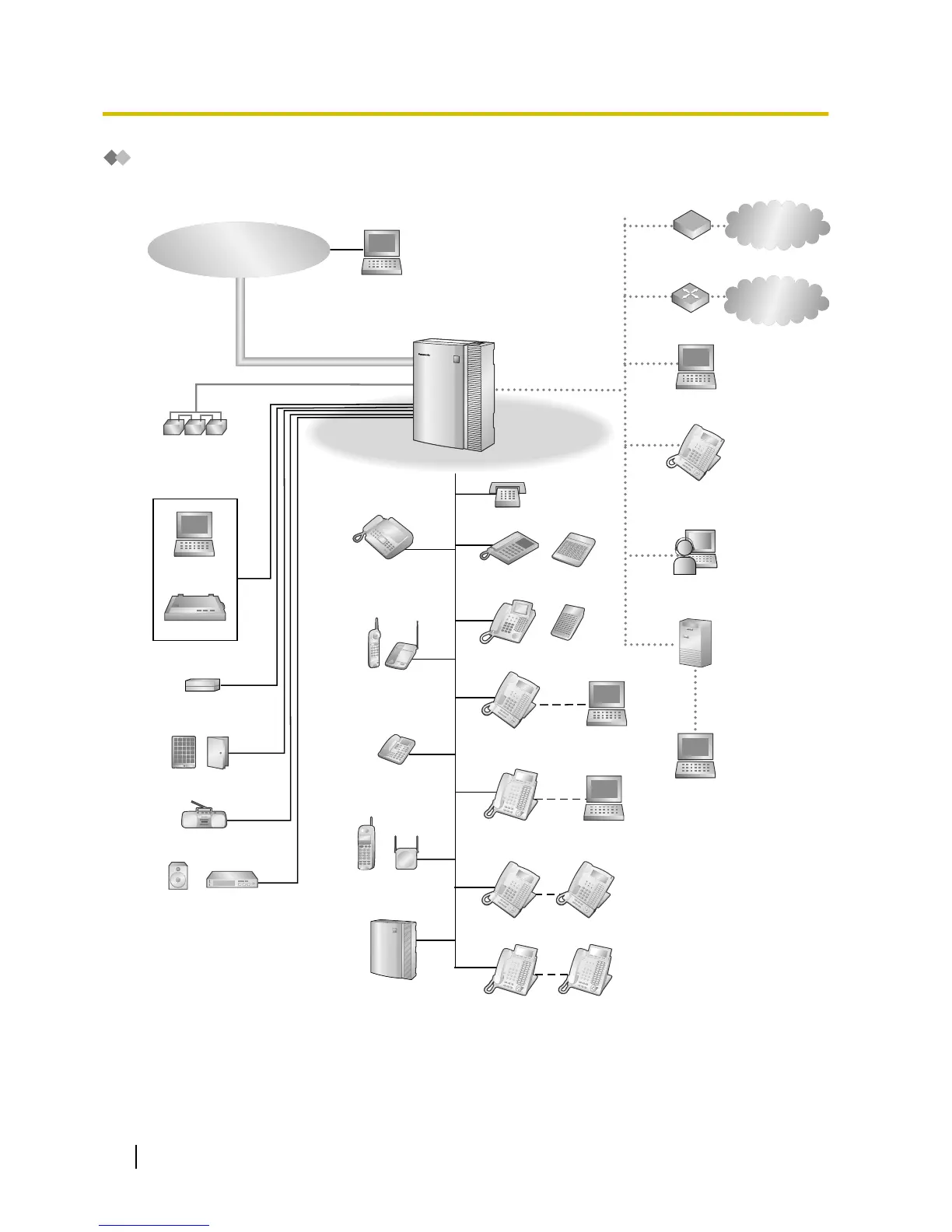

This diagram shows you a connection example.
External Sensor/
External Relay Device
Doorphone & Door Opener
External Music Source
Pager/
Speaker
Batteries
Remote PC
PC
Printer
Telephone Company
Hybrid IP-PBX
CSPS
Wireless Phone
Fax Machine
KX-T7636/
KX-T7633
PC
USB
ISDN Telephone
Amplifier
SLT
APT
DSS Console
DPT
DSS Console
Voice Processing
System
KX-DT300
KX-DT300
KX-T7600 KX-T7600
PC
USB
PC
PC
IP-PT
IP Softphone
CTI Server
Router
Private
IP Network
ITSP
*
1
Network
DCE
*
2
(e.g., ADSL
Modem)
KX-DT346/
KX-DT343
*1
ITSP: Internet Telephony Service Provider
*2
DCE: Data Circuit Terminating Equipment
