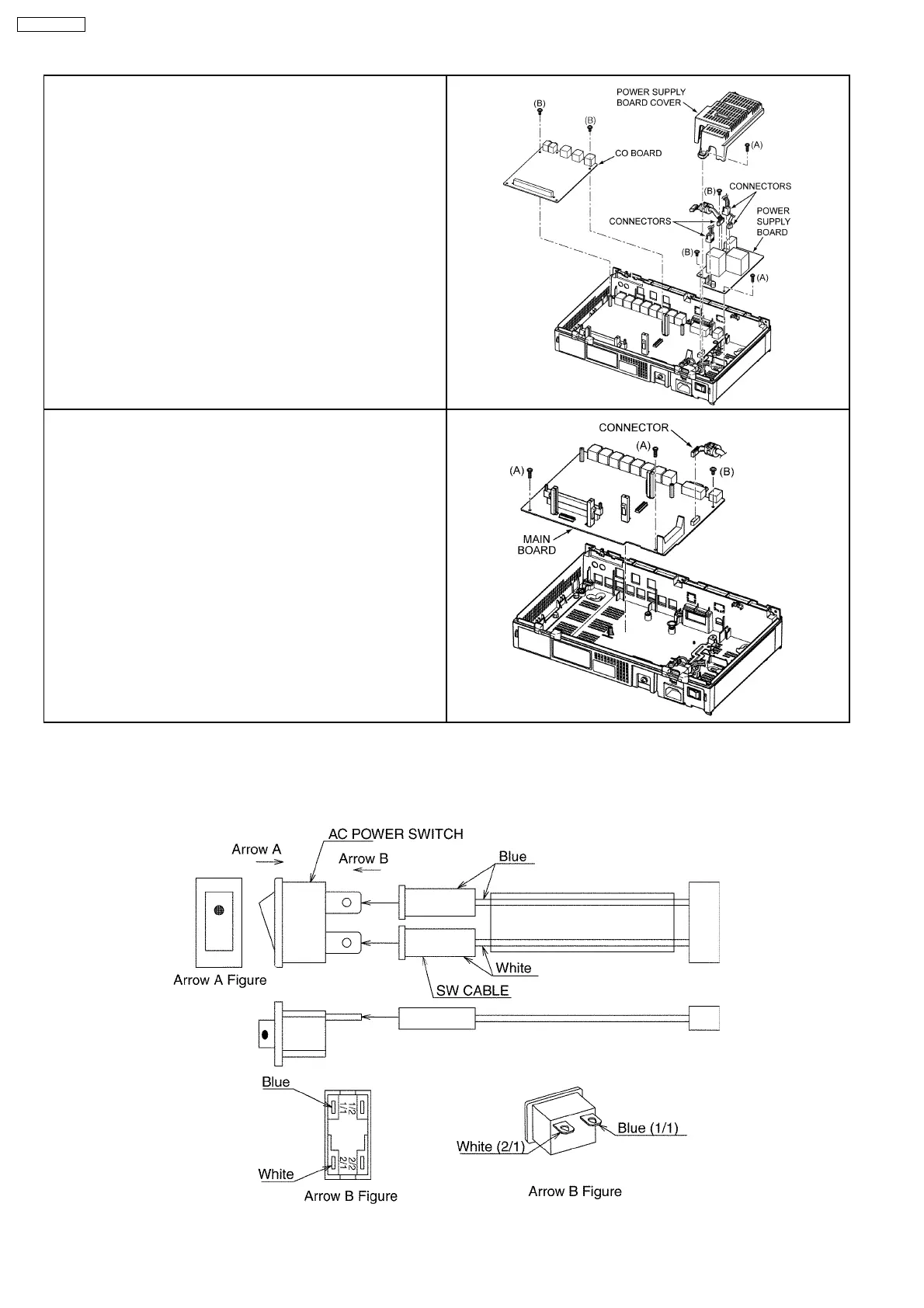

5. Remove the 1 screws (A).
6. Remove the power supply board cover.
7. Pull out the 4 connectors.
8. Remove the 2 screw (B) and 1 screw (A).
9. Remove the power supply board.
10. Remove the 2 screw (B).
11. Remove the CO board.
12. Pull out the 1 connector.
13. Remove the 2 screws (A) and 1 screw (B).
14. Remove the main board.
Procedure:
•
• •
• Insert the SW CABLE into AC POWER SWICH.
Caution:
•
• •
• Be sure each colored wire is inserted to the correct lug (very important).
