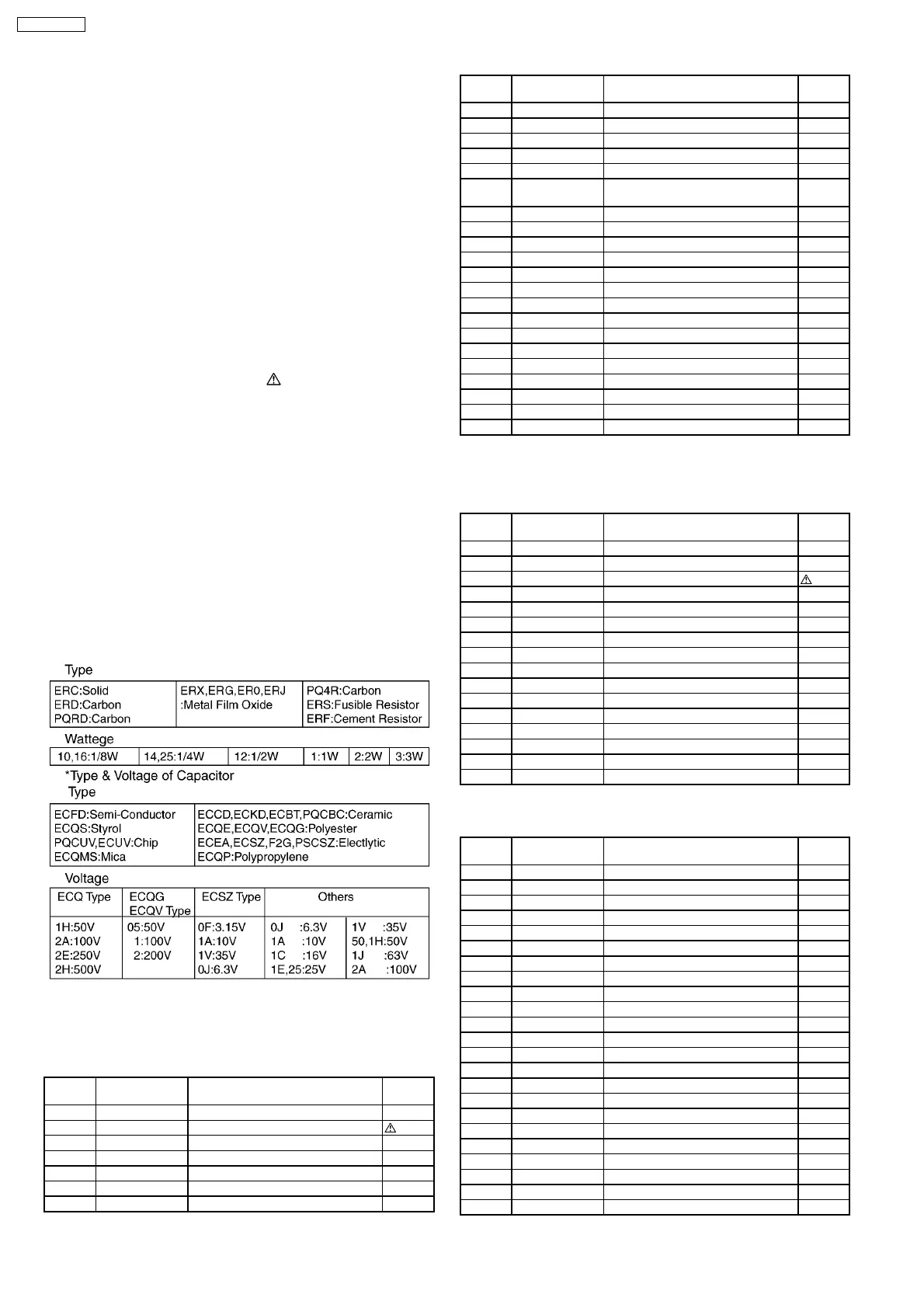

19 REPLACEMENT PARTS
LIST (KX-TEA308CE)
Note:
1. RTL (Retention Time Limited)
The marking (RTL) indicates that the Retention Time is
limited for this item.
After the discontinuation of this assembly in production, the
item will continue to be available for a specific period of
time. The retention period of availability depends on the
type of assembly and the laws governing parts and product
retention. At the end of this period, the assembly will no
longer be available.
2. Important safety notice
Components identified by the
mark indicates special
characteristics important for safety. When replacing any of
these components, only use specified manufacture´s parts.
3. The S mark means the part is one of some identical parts.
For that reason, it may be different from the installed part.
4. ISO code (Example: ABS-94HB) of the remarks column
shows quality of the material and a flame resisting grade
about plastics.
5. RESISTORS & CAPACITORS
Unless otherwise specified;
All resistors are in ohms (Ω), k=1000Ω, M=1000kΩ
All capacitors are in MICRO FARADS (µF), p=µ(µF)
*Type & Wattage of Resistor
19.1. CABINET AND ELECTRICAL
PARTS
Ref.
No.
Part No. Part Name & Description Remarks
1 K1KA60A00160 CONNECTOR
2 K2AH3G000011 JACK, AC INLET
3 PQJS02Q59Y CONNECTOR
4 PQLB1E1 INSULATOR
5 PQMX10010Z INSULATOR
6 PSQT2068Z LABEL, WARNING
7 PSBD1016Z2 KNOB PS V-0
Ref.
No.
Part No. Part Name & Description Remarks
8 PSGP1099X PANEL, LED LENS PMMA HB
9 PSHE1051Z SPACER
10 PSHE1068Z NUT
11 PSHE1180Z TAPE, LED
12 PSHR1336Z SPACER, PCB HOLDER
13 PSHR1339Z SPACER, LED AS(SAN)
HB
14 PSJS02P29Z CONNECTOR, 2P
15 PSJS07P27Z CONNECTOR, 7P
16 PSKE1076Z2 COVER, LOCK KNOB PS V-0
17 PSKE1081Z1 COVER, POWER BOARD PS V-0
18 PSKF1084X2 CABINET COVER PS V-0
19 PSKM1118W2 CABINET BODY PS V-0
20 PSKV1048Y2 COVER, CABLE PS V-0
21 PSLB5D2 INSULATOR, CORE
22 PSMH1292Z ANGLE, FG PLATE
23 PSMH1303Z ANGLE, FG PLATE
24 PSQT1976Z LABEL, CAUTION
25 PSUS1025Z COIL SPRING
26 PSWSTEA308BX SWITCH ASS´Y
27 PSYEEA308CEM NAME PLATE
28 XK20CM4HF LEAD WIRE
19.2. ACCESSORIES AND PACKING
MATERIALS
Ref.
No.
Part No. Part Name & Description Remarks
A1 PQHE5004Y SCREW, WALL-MOUNT
A2 PSHE1177Z BAND
A3 PSJA1108Z POWER CORD
A4 PSQX3553Z INSTRUCTION BOOK
A5 PSQX3805ZCD INSTRUCTION BOOK, CD-ROM
A6 XWG35FJ WASHER
A7 PSQW2333Z LEAFLET
A8 PSQW2401Z LEAFLET
P1 PSPD1260Z CUSHION
P2 PSPD1284Z CUSHION
P3 PSPN1170Z ACCESSORY BOX, PAPER
P4 PSPP1050Z PROTECTION COVER
P5 PSZKEA308CEM GIFT BOX
P6 XZB05X08A03 PROTECTION COVER
P7 XZB06X13A03 PROTECTION COVER
P8 XZB30X40A04 PROTECTION COVER
19.3. MAIN BOARD PARTS
Ref.
No.
Part No. Part Name & Description Remarks
PCB1 PSWPTEA308CE MAIN BOARD ASS´Y (RTL)
(ICS)
IC7 C0JBAZ001852 IC
IC8 PSVISNLV273A IC S
IC10 C0JBAE000253 IC
IC200 PQVIMC4051BF IC S
IC601 C1CB00001893 IC
IC602 C1CB00001892 IC
IC603 C1CB00001892 IC
IC604 C0ABBB000179 IC
IC605 C0ABBB000179 IC
IC606 C1CB00001876 IC
IC607 C1CB00001876 IC
IC608 C0ABBB000179 IC
IC609 C0ABBB000179 IC
IC610 C0ABBB000179 IC
IC611 C0ABBB000179 IC
IC700 C1CB00001853 IC S
IC701 C0CBAKE00010 IC
IC702 C0CBAAC00083 IC
IC703 C0CBAAC00154 IC
IC704 C3BBKG000086 IC
IC705 PSWITEA308CE IC
52
KX-TEA308CE
