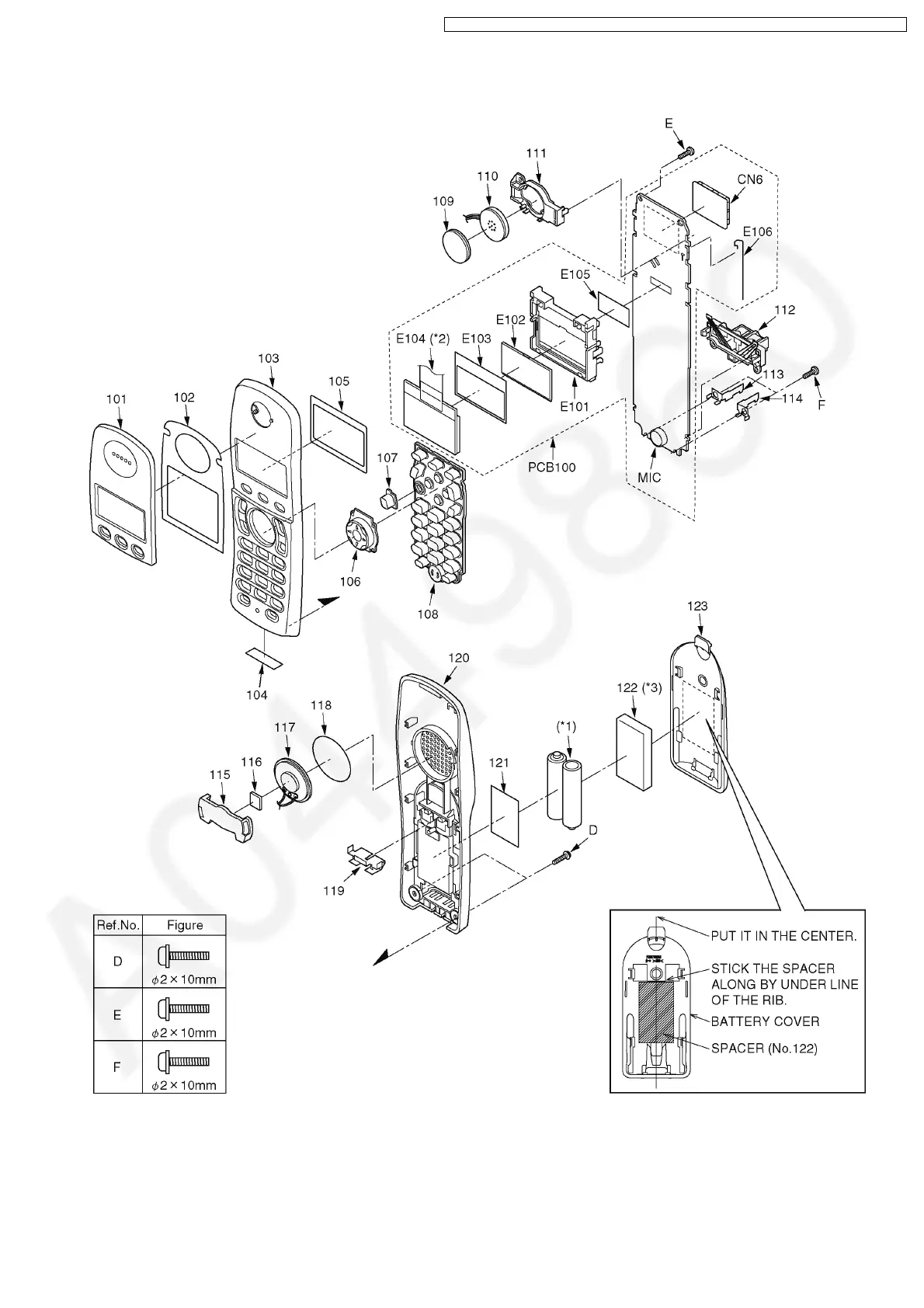

25 CABINET AND ELECTRICAL PARTS (HANDSET)
Note:
(*1) The rechargeable Ni-MH battery HHR-4EPT (Capacity: up to 750 mAh) is available through sales route of Panasonic.
(*2) This cable is fixed by welding. Refer to HOW TO REPLACE THE HANDSET LCD (P.18).
(*3) Attach the spacer (No. 122) to the exact location described above.
73
KX-TG1283BXS / KX-TG1283BXT / KX-TCA122CXS / KX-TCA122CXT / KX-TCA121CXS / KX-TCA121CXT
