Panasonic KX-TG2360JX

To Next Page

To Previous Page

Cross Reference:

Telephone Line Interface (P.76)

SIGNAL ROUTE (P.85)

Note:

Flash Memory is IC701.

DSP is IC501.

Note:

DSP is IC501.

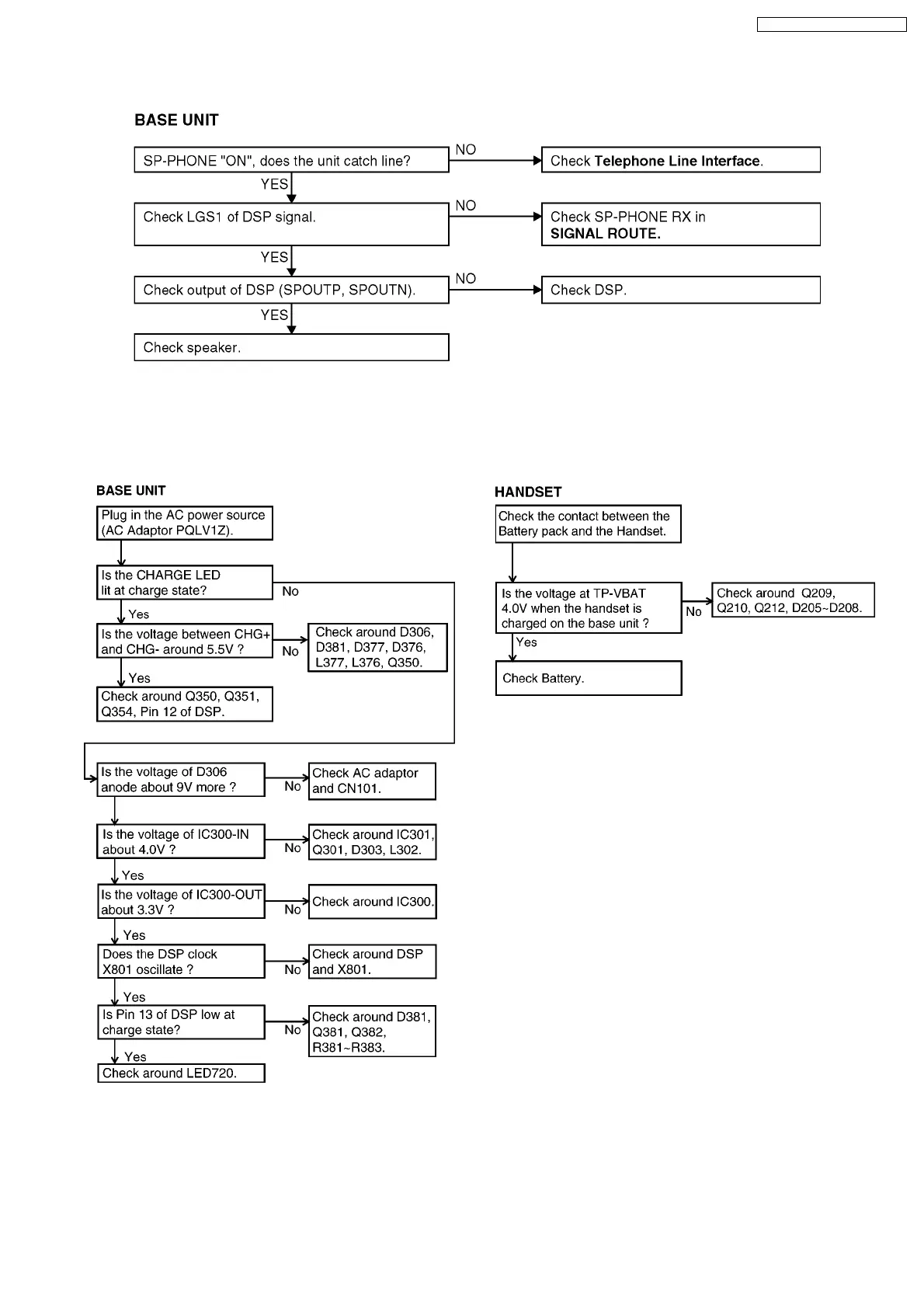

12.6. Check Sp-phone Reception

12.7. Check Battery Charge

KX-TG2360JXS / KX-TGA236JXS

Main Page

Table of Contents2
ABOUT LEAD FREE SOLDER (Pbf: Pb Free)4
Suggested Pbf Solder4
How to Recognize that Pb Free Solder Is Used5
For Service Technicians7
Caution7
Battery8
Standard Battery Life8
Battery Replacement9
Location of Controls10
Base Unit10
Handset11
Display12
Base Unit Display12
Troubleshooting (Handset LCD)13
Settings14
Connections14
Connecting an Optional Headset14
Function Menu Table15
Date and Time16
Dialing Mode17
Line Mode17
Voice Enhancer Technology18
Ringer Tone19
Direct Commands20
Operation21
Answering System21
For Call Waiting Service Users25
Using the PAUSE Key25
Dial Lock26
FLASH Button27
Remote Operation from a Touch Tone Phone28
Phone Book31
Troubleshooting36
Disassembly Instructions40
Base Unit40
Handset41
Assembly Instructions42
Fix the LCD to P.C. Board (Handset)42
Troubleshooting Guide43
Check Power44
Error Message Table44
Check Record45
Check Playback46
Check Sp-Phone Transmission46
Check Sp-Phone Reception47
Check Battery Charge47
Check Link48
Check the RF Part49
Check Handset Transmission53
Check Handset Reception53
Check Caller ID53
Test Mode54
Test Mode Flow Chart for Base Unit54
Test Mode Flow Chart for Handset57
X801 (Base Unit), X201 (Handset) Check61
Adjustment Battery Low Detector Voltage (Handset)61
Base Unit Reference Drawing62
Handset Reference Drawing64
Frequency Table65
How to Clear User Setting66
Description67
Frequency67
FHSS (Frequency Hopping Spread Spectrum)67
Signal Flowchart in the Whole System69
Explanation of Link Data Communication70
Calling70
To Terminate Communication70
Ringing70
BLOCK DIAGRAM (Base Unit)71
CIRCUIT OPERATION (Base Unit)72
DSP (Digital Speech/Signal Processing: IC501)72
Flash Memory (IC701)73
Power Supply Circuit73
Reset Circuit75
Locator/Intercom Mode76
Telephone Line Interface76
Auto Disconnect Circuit77
Parallel Connection Detect Circuit78
Calling Line Identification (Caller ID)79
BLOCK DIAGRAM (Handset)80
CIRCUIT OPERATION (Handset)81
Construction81
Power Supply Circuit82
Charge Circuit83
Ringer and Handset SP-Phone83
Sending Signal84
Reception Signal84
Signal Route85
CPU DATA (Base Unit)86
Ic50186
CPU DATA (Handset)87
Ic20187
EXPLANATION of IC TERMINALS (RF Unit)88
Ic90188
How to Replace Aflat Package IC89
Preparation89
Procedure89
Removing Solder from between Pins89
CABINET and ELECTRICAL PARTS (Base Unit)90
CABINET and ELECTRICAL PARTS (Handset)91
Accessories and Packing Materials92
Terminal Guide of the IC S, Transistors and Diodes93
Base Unit93
Handset93
Replacement Parts List94
Base Unit94
Handset96
Accessories and Packing Materials98
For Schematic Diagram99
Base Unit (SCHEMATIC DIAGRAM (Base Unit))99
Handset (SCHEMATIC DIAGRAM (Handset))99
SCHEMATIC DIAGRAM (Base Unit)100
SCHEMATIC DIAGRAM (Handset)102
Schematic Diagram (Rf Part)104
CIRCUIT BOARD (Base Unit)105
Component View105
Flow Solder Side View106
CIRCUIT BOARD (Handset)107
Component View107
Flow Solder Side View108
