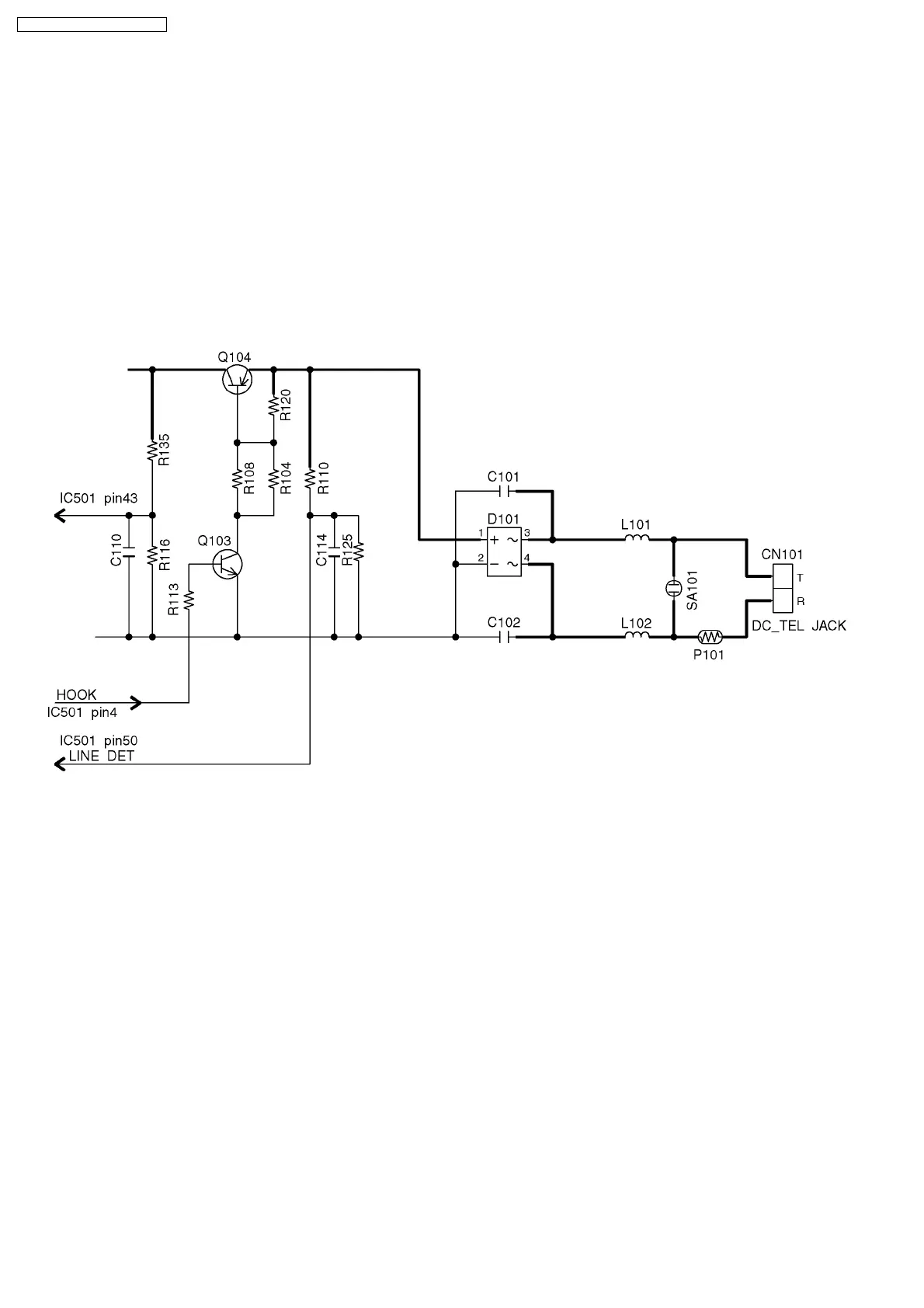

17.8. Parallel Connection Detect Circuit
Function:
In order to disable call waiting and stutter tone functions when using telephones connected in parallel, it is necessary to have a
circuit that judges whether a telephone connected in parallel is in use or not. This circuit determines whether the telephone
connected in parallel is on hook or off hook by detecting changes in the T/R voltage.
Circuit Operation:
Parallel connection detection when on hook:
When the set is on hook, the voltage is monitored at DSP (DCIN0). There is no parallel connection if the voltage is 2.50 V or higher,
while a parallel connection is deemed to exist if the voltage is lower.
Parallel connection detection when off hook:
When the set is off hook, the voltage is monitored at DSP (DCIN1); the presence/absence of a parallel connection is determined
when the voltage changes by 0.2 V or more.
78
KX-TG2360JXS / KX-TGA236JXS
