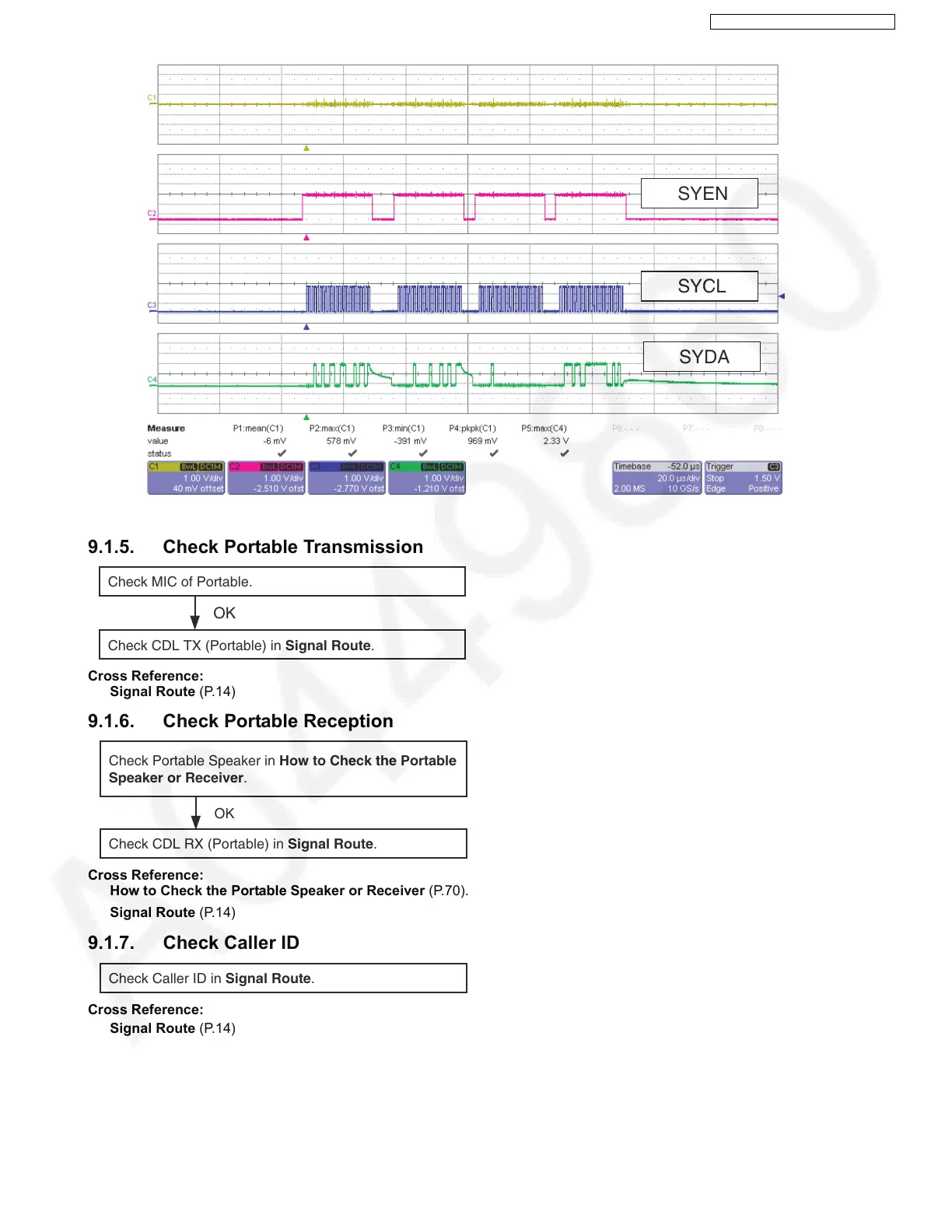

9.1.4.4. RF-BBIC Interface Signal Wave Form
9.1.5. Check Portable Transmission
Cross Reference:
Signal Route (P.14)
9.1.6. Check Portable Reception
Cross Reference:
How to Check the Portable Speaker or Receiver (P.70).
Signal Route (P.14)
9.1.7. Check Caller ID
Cross Reference:
Signal Route (P.14)
SYCL
SYEN
SYDA
OK
Check MIC of Portable.
Check CDL TX (Portable) in Signal Route.
Check Portable Speaker in How to Check the Portable
Speaker or Receiver.
OK
Check CDL RX (Portable) in Signal Route.
Check Caller ID in Signal Route.
