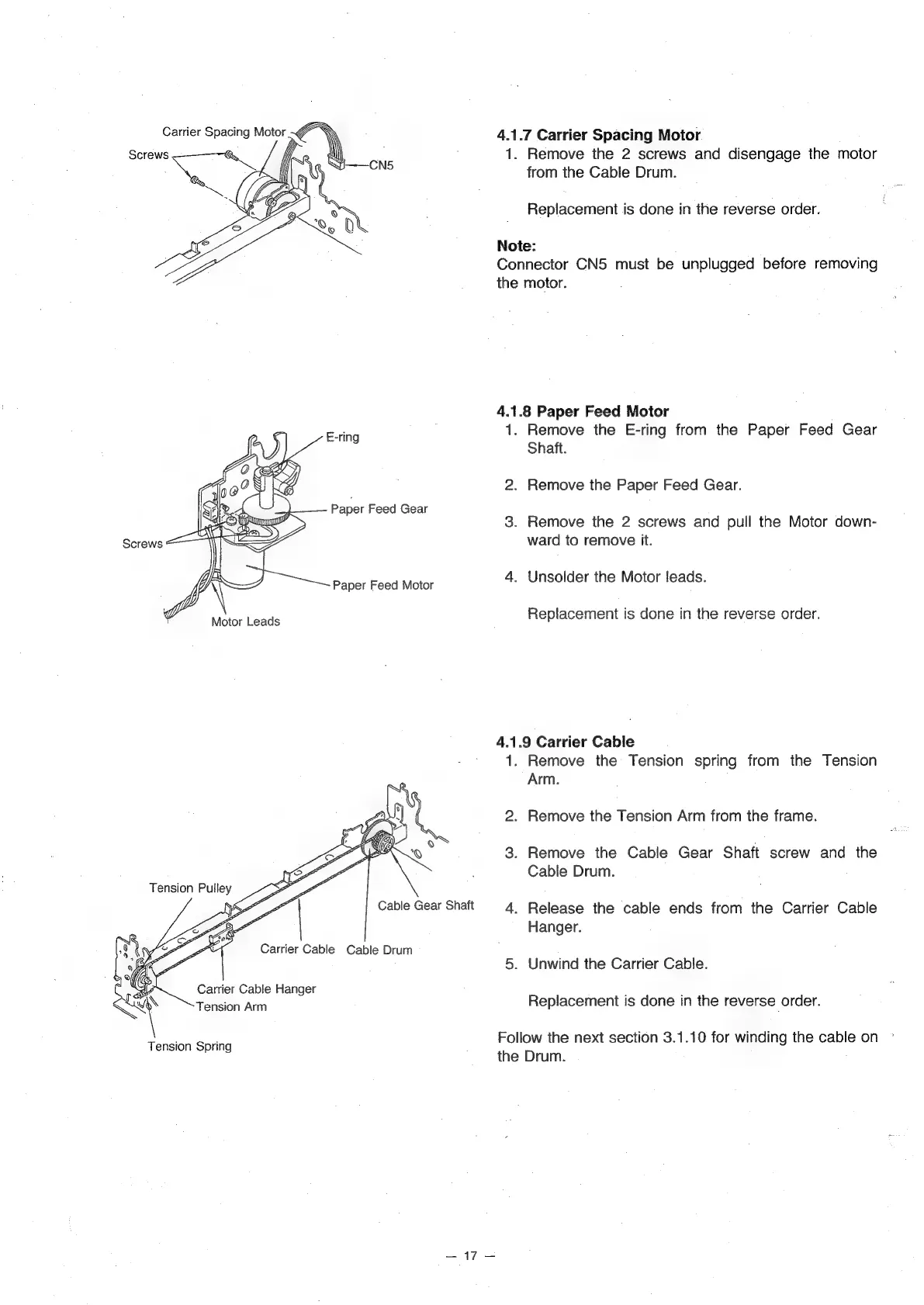

4.1.7 Carrier Spacing Motor
1. Remove the 2 screws and disengage the motor
from the Cable Drum.
Replacement is done in the reverse order.
Note:
Connector CN5 must be unplugged before removing
the motor.
4.1.8 Paper Feed Motor
1.
Remove the E-ring from the Paper Feed Gear
Shaft.
Remove the Paper Feed Gear.
Remove the 2 screws and pull the Motor down-
ward to remove it.
Unsolder the Motor leads.
Replacement is done in the reverse order.
4.1.9 Carrier Cable
. Remove the Tension spring from the Tension
Arm.
. Remove the Tension Arm from the frame.
. Remove the Cable Gear Shaft screw and the
Cable Drum.
. Release the cable ends from the Carrier Cable
Hanger.
. Unwind the Carrier Cable.
Replacement is done in the reverse order.
Follow the next section 3.1.10 for winding the cable on
the Drum.
