Connecting to other equipment
- 164 -
Playing Back Pictures on a TV Screen
Pictures recorded with this unit can be played back on a TV screen.

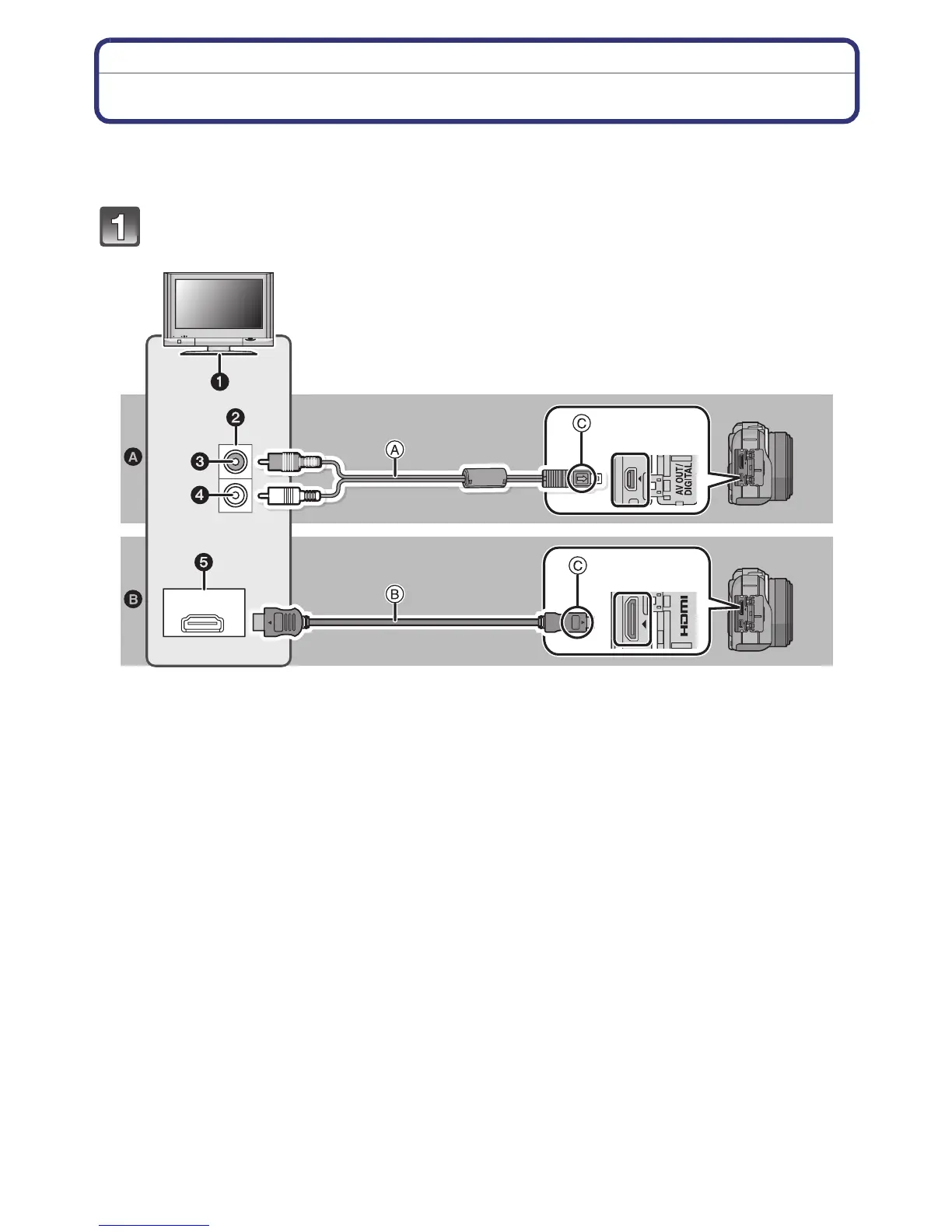

Connect the camera and a TV.
A To connect with an AV cable (supplied)
B To connect using an HDMI mini cable (optional)
1 Terminals on your TV
2 Video terminal
3 Yellow: to the video input socket
4 White: to the audio input socket
5 HDMI socket
A AV cable (supplied)
B HDMI mini cable (optional)
C Align the marks, and insert.
•
Check the [TV ASPECT] (P66) when connecting with an AV cable.
• Check the [HDMI MODE] (P66) when connecting with an HDMI mini cable.
• Check the direction of the terminals and plug in/out straight holding onto the plug. (It may result
in malfunction if it is plugged in obliquely or in the wrong direction.)
• You can enjoy higher quality still pictures and motion pictures by connecting this unit to an
HDMI compatible high definition TV using an HDMI mini cable (optional).
Preparations: Turn this unit and the TV off.
