2. Getting Started/Basic Operations
∫ Interchangeable Lens (H-X015)
•

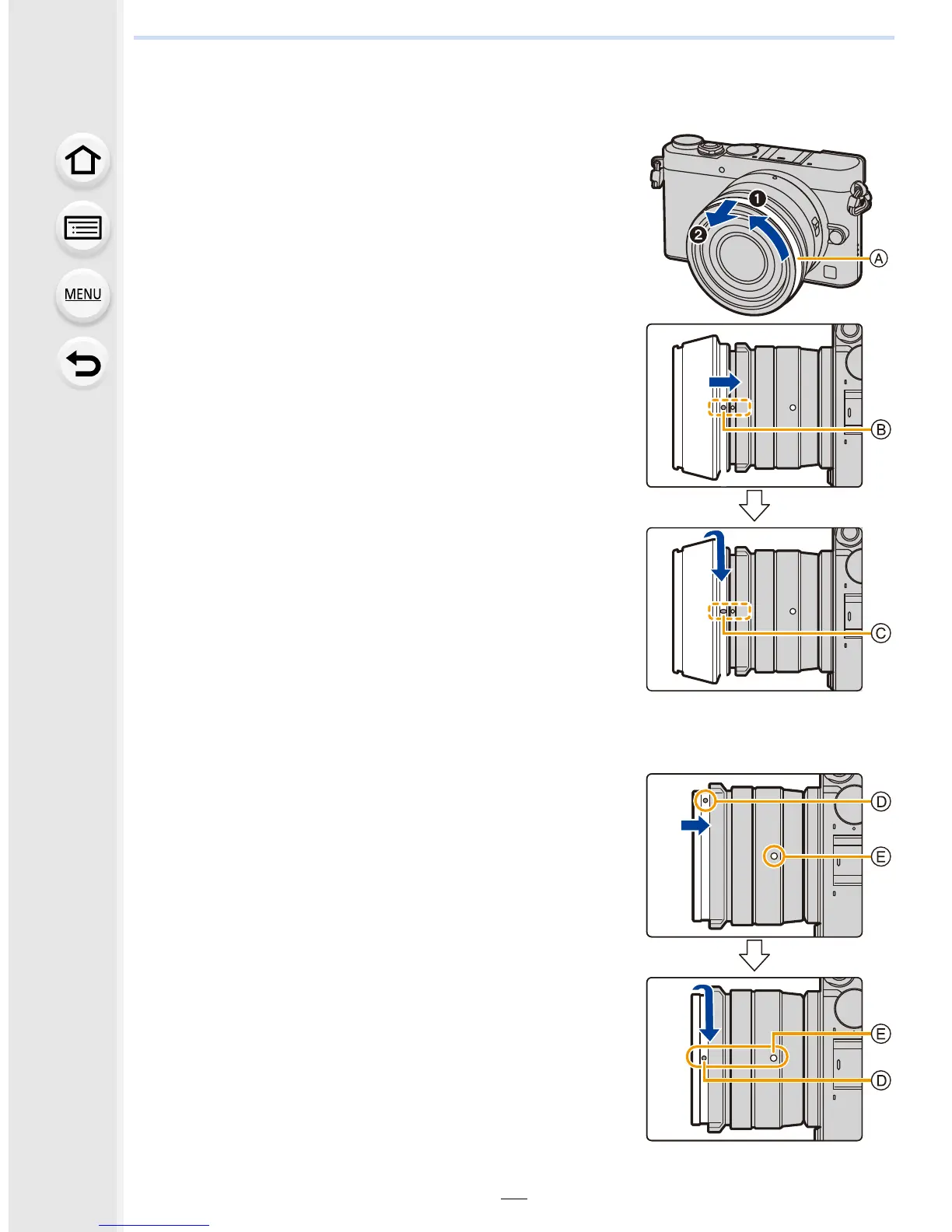

Before attaching the lens hood, make sure to remove the lens cap. The lens hood cannot
be attached unless you remove the lens cap.
1 Rotate the decoration ring A in the direction of
the arrow to remove it.
2 Align the mounting index B on the lens hood
with the mark on the tip of the lens.
3 Rotate the lens hood in the direction of the
arrow until it clicks into place, and align the
stop position
C on the lens hood with the
index on the tip of the lens.
∫ Attaching the decoration ring
•
Before attaching the decoration ring, make sure to remove the lens cap.
1 Align the mounting position D on the
decoration ring with a position approximately
90x away from the lens fitting mark
E to fit the
decoration ring into place.
2 Rotate the decoration ring in the direction of
the arrow to align the mounting position
D on
the decoration ring with the lens fitting mark
E.
