Preparation
13
VQT0W82

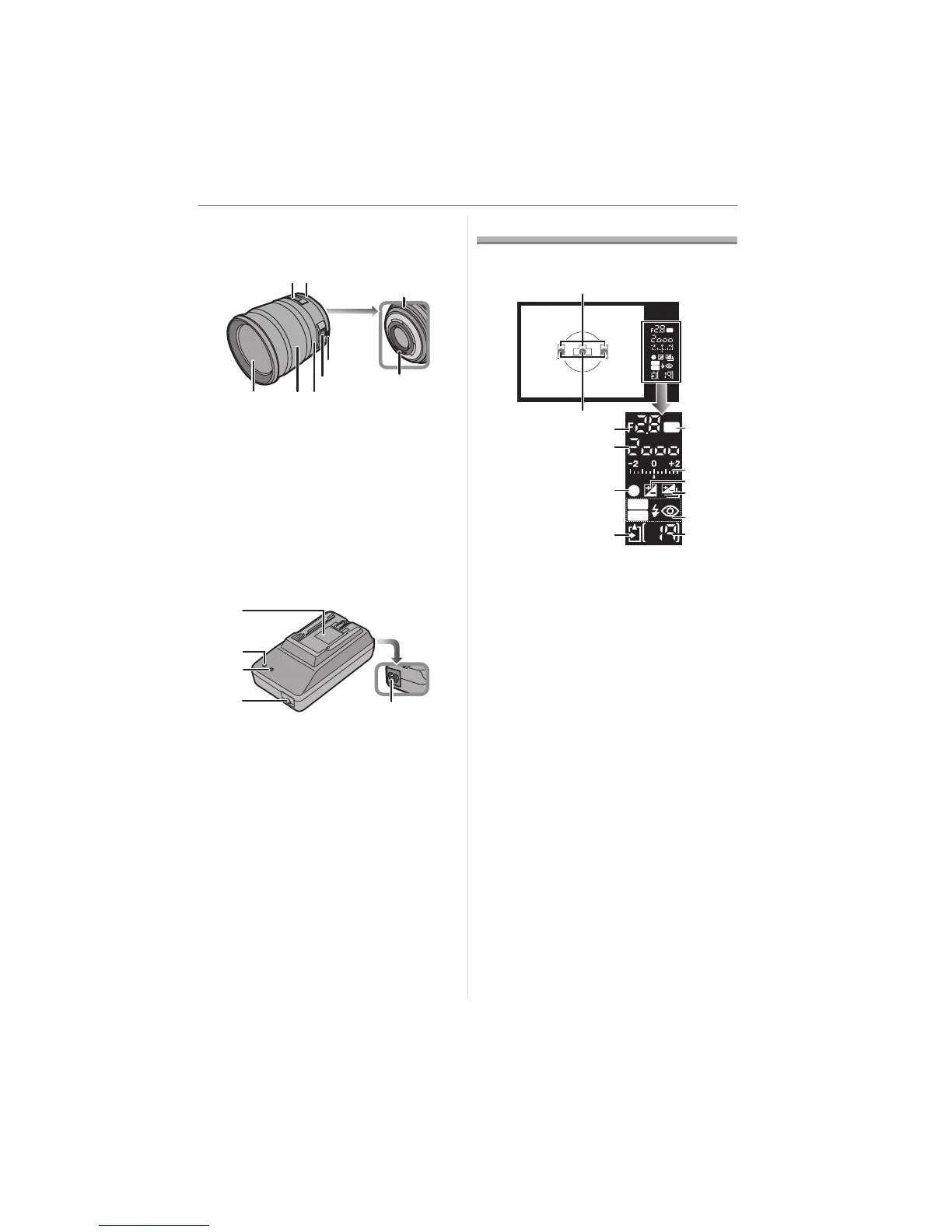

∫ Lens
“LEICA D VARIO-ELMARIT 14–50 mm/
F2.8–3.5”
47 Focus distance indicator (P42, 55)
48 Aperture ring (P32, 36, 38)
49 Lens fitting mark (P16)
50 Contact point
51 Aperture ring button (P32, 36, 38)
52 [O.I.S.] switch (P17)
53 Focus ring (P42, 55)
54 Zoom ring (P43, 80, 81)
55 Lens surface
∫ Battery charger/AC adaptor (P18)
56 Battery holder
57 [POWER] indicator
58 [CHARGE] indicator
59 Power output socket [DC OUT]
60 Power input socket [AC IN]
• Do not use any other AC adaptors
except the supplied one.
Screen Display
∫ Viewfinder Display
1 AF frame (P31, 32)
2 AF-LED (P86)
3 AE lock (P63)
4 Exposure compensation value (P40)/
Manual exposure assistance (P39)/
Auto bracket compensation range (P66)
5 Exposure compensation (P40)
6 Auto bracket (P66)
7 Flash setting (P58)
8 Number of recordable pictures
You can display up to 99 pictures only
on the Viewfinder.
9 Card access (P22)
10 Focus (P32)
11 Shutter speed (P32, 37, 38)
12 Aperture value (P32, 36, 38)
52
51
54 53
48
49
55
50
47
59
56
60
58
57
AEL
1
AUTO
SLOW
AEL
AUTO
SLOW
2
4
6
7
5
3
8
9
10
11
12
