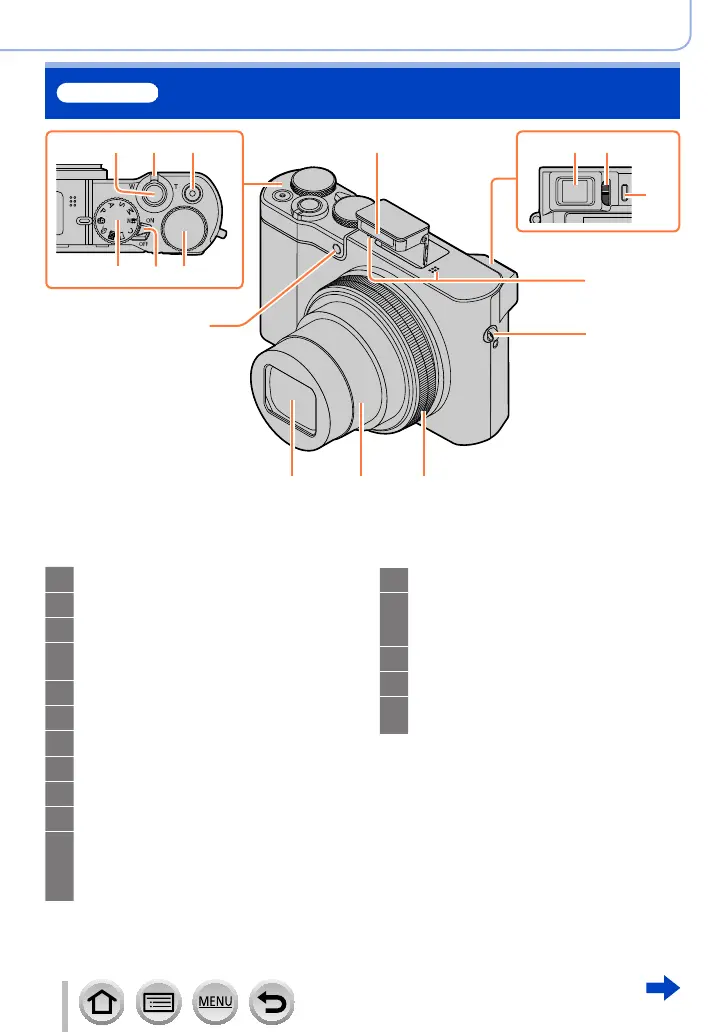

Names and Functions of Main Parts
1 2 3
4 5 6
8 9
10
7
11
12
1415
16
13
1
Shutter button (→46)
2
Zoom lever (→45)
3
Motion picture button (→48)
4
Mode dial (→49)
Use this to select the recording mode.
5
Camera [ON/OFF] switch (→42)
6
Rear dial (→50)
7
Flash (→241)
8
Viewfinder (→58)
9
Diopter adjustment dial (→60)
10
Eye sensor (→58, 60)
11
Stereo microphone (→44)
Be careful not to cover the microphone
with your finger. Doing so may make
sound difficult to record.
12
Strap eyelet (→23)
13
Control ring (→50)
Allows you to zoom and adjust settings
when recording.
14
Lens barrel
15
Lens
16
Self-timer indicator (→208) /
AF Assist Lamp (→164)
