Panasonic LUMIX GH5 II User Manual

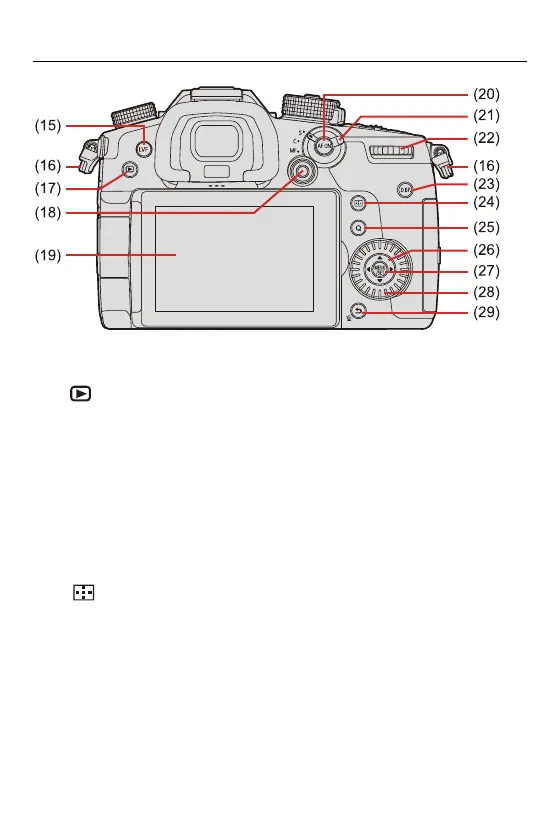

1. Introduction – Names of Parts
30
(15) [LVF] button (Switching Between the Monitor and Viewfinder: 86)
(16) Shoulder strap eyelet (Attaching a Shoulder Strap: 41)
(17) [ ] (Playback) button (Playing Back Pictures: 444)
(18) Joystick (Joystick: 83)/
Fn buttons (Fn Buttons: 471)
Center: Fn8, 3: Fn9, 1: Fn10, 4:Fn11, 2: Fn12
(19) Monitor (Viewfinder/Monitor Displays: 38, Monitor/Viewfinder Displays: 714)/
Touch screen (Touch Screen: 84)
(20) [AF ON] button ([AF ON] button: 129)
(21) Focus mode lever (Selecting the Focus Mode: 125)
(22) Rear dial (Front Dial/Rear Dial: 81)
(23) [DISP.] button (Switching the Display Information: 88)
(24) [ ] (AF mode) button (Using AF: 127)
(25) [Q] (Quick menu) button (Quick Menu: 91)
(26) Cursor buttons (Cursor Buttons: 82)/
Fn buttons (Fn Buttons: 471)
3: Fn13, 1: Fn14, 4: Fn15, 2:Fn16

Panasonic LUMIX GH5 II Specifications

General

Sensor Type	Live MOS
Megapixels	20.3 MP
Sensor Size	17.3 x 13.0 mm
Image Sensor Format	Four Thirds
Image Processor	Venus Engine
Viewfinder	OLED Live View Finder
Dimensions	138.5 x 98.1 x 87.4 mm
Autofocus System	Contrast Detection
Video Resolution	4K (3840 x 2160)
Viewfinder Resolution	3, 680k-dot
Screen	3.0" Free-Angle Touchscreen LCD
Screen Resolution	1, 840, 000 Dot
Image Stabilization	5-axis in-body image stabilization
Shutter Speed	1/8000 to 60 sec
Continuous Shooting	12 fps
Connectivity	Wi-Fi, Bluetooth
Battery Life	Approx. 400 Shots
Battery	DMW-BLK22 Lithium-ion
Weight	727 g
