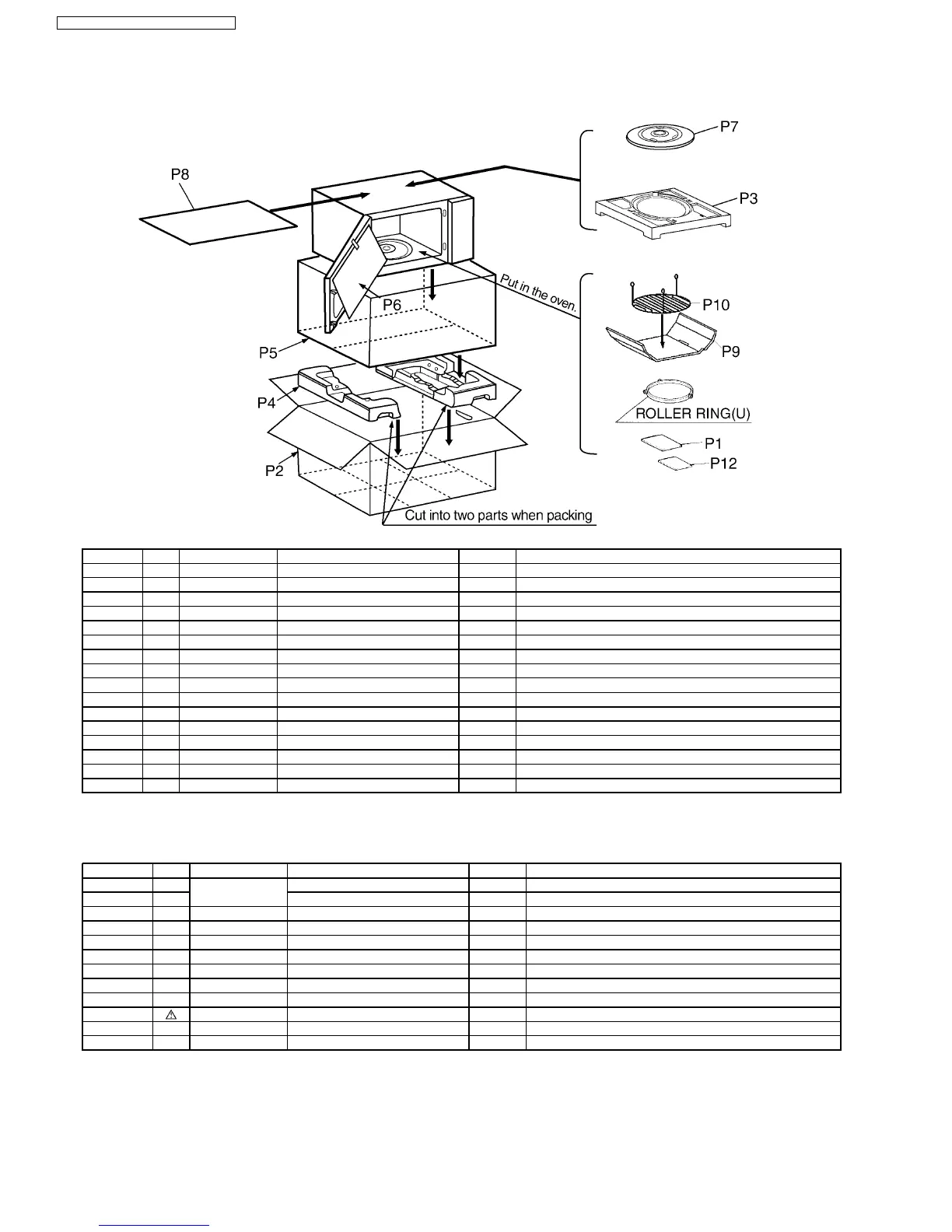

8.6. PACKING AND ACCESSORIES
Ref. No. Part No. Part Name & Description Pcs/Set Remarks
P1 F00038H00BP INSTRUCTION MANUAL 1 BPQ
P1 F00038H00EP INSTRUCTION MANUAL 1 EPG
P1 F00038H20WP INSTRUCTION MANUAL 1 WPG
P2 F01028H00SBP PACKING CASE,PAPER 1 GD376S
P2 F01028H10SEP PACKING CASE,PAPER 1 GD366M
P2 F01028H20HEP PACKING CASE,PAPER 1 GD356W
P3 F01047K10XP UPPER FILLER 1
P4 F01058H00XP LOWER FILLER 1
P5 F01068100XN P.E.BAG 1
P6 F01075G10XN DOOR SHEET 1
P7 A06015G10XN COOKING TRAY 1
P8 F01924T00AP SHEET 1 GD376S,GD366M
P9 F01085G50XN TRAY PACKING 1
P10 F060V8H00BP OVEN RACK 1
P12 F01565U50EP NOTICE 1 EPG
8.7. H.V. INVERTER MAIN PARTS LIST
Ref. No. Part No. Part Name & Description Pcs/Set Remarks
Q701 A691EM300BP IGBT 1
Q702 IGBT 1
C701 ECWF5184N300 FILM CAPACITOR 1
C702 ECQE2505T869 FILM CAPACITOR 1
C703 ECWF2395N632 FILM CAPACITOR 1
DB701 B0FBBS000001 RECTIFIER BRIDGE 1
L701 F5020M300GP CHOKE COIL 1
R702 D0CM352JA002 SAND BAR RESISTOR 1
T701 A609AM300GP TRANSFORMER 1 (INCLUDING D701, D702, C706, C707)
D701, D702 B0FBAZ000001 DIODE 2
C706 ECWH30562U03 FILM CAPACITOR 1
C707 ECWH30432U04 FILM CAPACITOR 1
