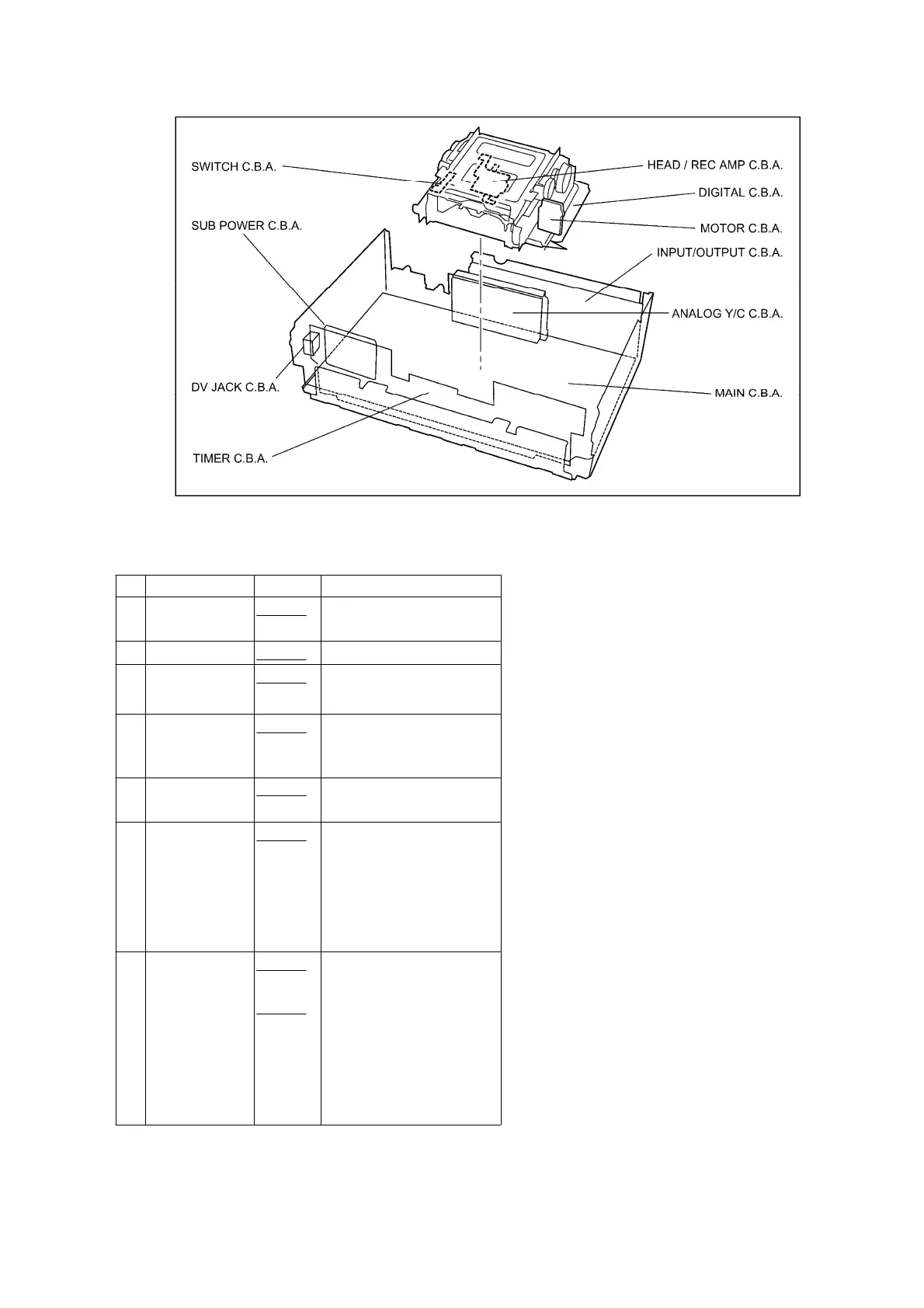

3.1.2. Assemble/ Disassemble Procedures (for cabinet parts, C.B.A. and Mechanism
Unit)
No. ITEM/PART FIGURE REMARKS
1 Top Panel
Fig. D1 2-Screws (A)
3-Screws (B)
2 Front Panel
Fig. D2
5-Tabs (a)
3 Analog Y/C
C.B.A.
Fig. D3
Note1:
2-Locking Tabs (b)
4 Timer C.B.A
Fig. D3 6-Screws (F) / 5-Tabs
(d) / 2-Flexible Cable (e)
/ (P7901, P7902)
5 DV Jack
C.B.A.
Fig. D4 1-Connector (f) (P7602)
1-Screw (G)
6 Mechanism
Unit
Fig. D3 3-Flexible Cable (g)
(FP3401, FP3402,
FP6201)
1-Screw (C)
2-Screws (D)
1-Connector (h) (P7601)
7 Digital C.B.A.
Fig. D5
Fig. D6
3-Flexible Cable (i)
(FP3203, P2501, P2502)
2-Screws (H)
2-Screws (I)
1-Flexible Cable (j)
(FP6003)
2-Connectors (k)
(P6001, P6002)
To Next Page
