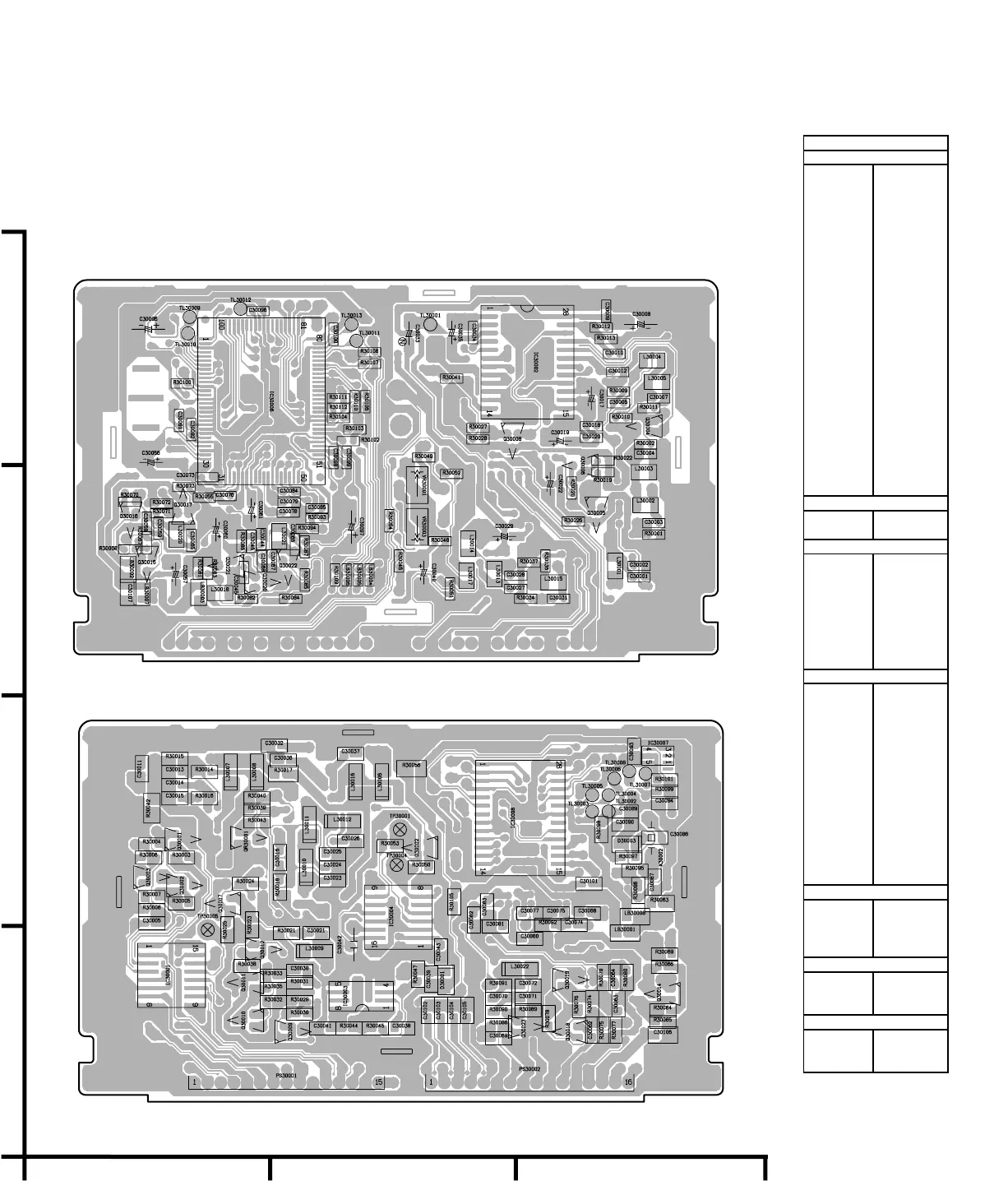

Panasonic NV-DV2000 - PWB Views

A
B
C
D
1
2
3
(FOIL SIDE)
(COMPONENT SIDE)
Q30001 B-2 (C)
Q30002 B-2 (C)
Q30003 B-1 (C)
Q30004 D-3 (F)
Q30005 C-3 (F)
Q30006 C-3 (F)
Q30007 B-2 (C)
Q30008 D-3 (F)
Q30009 A-2 (C)
Q30010 A-2 (C)
Q30011 A-2 (C)
Q30012 A-2 (C)
Q30014 A-4 (C)
Q30015 C-1 (F)
Q30016 C-1 (F)
Q30017 C-2 (F)
Q30018 A-3 (C)
Q30019 A-3 (C)
Q30020 C-2 (F)
Q30021 C-2 (F)
Q30022 C-2 (F)
Q30023 A-3 (C)
QR30001 B-2 (C)
IC30001 A-2 (C)
IC30002 D-3 (F)
IC30003 A-2 (C)
IC30004 B-2 (C)
IC30006 D-2 (F)
IC30007 B-4 (C)
IC30008 B-3 (C)
TL30001 D-3 (F)
TL30002 B-3 (C)
TL30003 B-3 (C)
TL30004 B-3 (C)
TL30005 B-3 (C)
TL30006 B-3 (C)
TL30007 B-3 (C)
TL30008 B-3 (C)
TL30009 D-2 (F)
TL30010 D-2 (F)
TL30011 D-2 (F)
TL30012 D-2 (F)
TL30013 D-2 (F)
TP30001 B-2 (C)
TP30004 B-2 (C)
TP30005 A-2 (C)
VR30001 C-3 (F)
VR30003 C-3 (F)
PS30001 A-2 (C)
PS30002 A-3 (C)
ADDRESS INFORMATION
(C) : COMPONENT SIDE
(F) : FOIL SIDE
Transistor
Transistor & Resistor
Integrated Circuit
ANALOG Y/C C.B.A.
Test Land
Test Point
Adjstment
Connector
