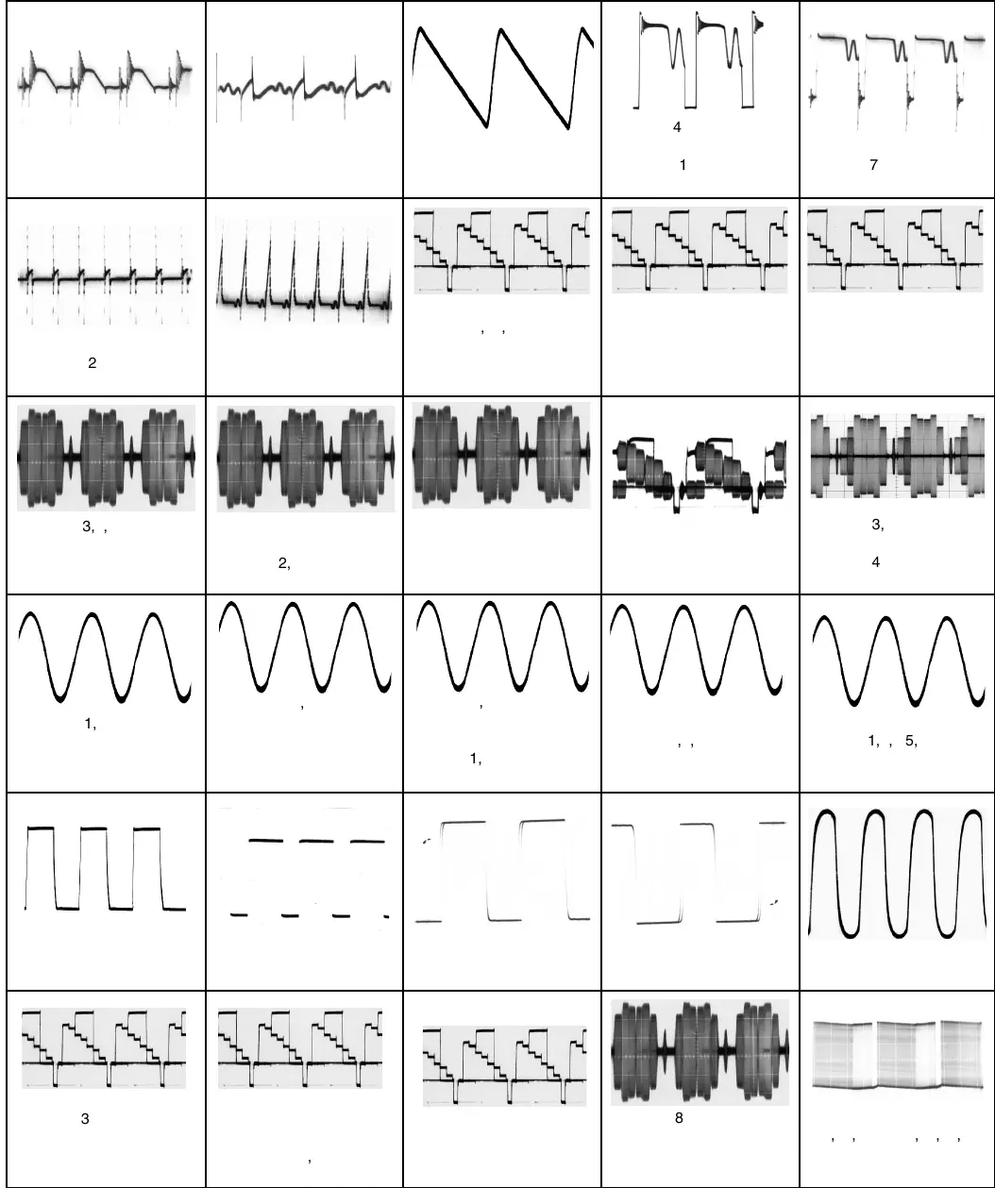

Panasonic NV-DV2000 - Wave Patterns

Q1200- 2 STOP
250mVp-p ( 5usec. div.)
Q1200- 3,4 STOP
2.2Vp-p ( 5usec. div.)
T1105- 3 STOP
5.0Vp-p ( 2msec. div.)
T1105- 4 STOP
400Vp-p ( 5usec. div.)
IC1150- 1 STOP
400Vp-p ( 5usec. div.)
T1105- 7 STOP
140Vp-p ( 5usec. div.)
IC1150- 2 STOP
4.5Vp-p ( 5usec. div.)
IC1150- 4 STOP
0.6Vp-p ( 10usec. div.)
IC3606- 1 PLAY/REC
2.5Vp-p ( 20usec. div.)
IC3606- 27 PLAY
2.25Vp-p ( 20usec. div.)
IC3610- 3 PLAY/REC
1.2Vp-p ( 20usec. div.)
IC3610- 19 PLAY/REC
2.0Vp-p ( 20usec. div.)
IC3601- 3,4,5 REC
0.65Vp-p ( 20usec. div.)
IC3603- 4 PLAY/REC
0.5Vp-p ( 20usec. div.)
IC3603- 5 PLAY
0.5Vp-p ( 20usec. div.)
IC3606- 2,26 PLAY/REC
1.3Vp-p ( 20usec. div.)
IC3610- 11 PLAY/REC
250mVp-p ( 20usec. div.)
IC3610- 14 PLAY/REC
1.4Vp-p ( 20usec. div.)
IC3610- 16 PLAY/REC
2.0Vp-p ( 20usec. div.)
IC3601- 3,5 PLAY
0.6Vp-p ( 20usec. div.)
IC3601- 4 PLAY
0.45Vp-p ( 20usec. div.)
IC4306- 9,10,23,24
PLAY/REC
200mVp-p ( 0.5msec. div.)
IC4306- 11,21 PLAY/REC
140mVp-p ( 0.5msec. div.)
IC4309- 1,3,12,13
PLAY/REC
140mVp-p ( 0.5msec. div.)
IC4311- 1,7 PLAY/REC
0.6Vp-p ( 0.5msec. div.)
IC4311- 3,5 PLAY/REC
140mVp-p ( 0.5msec. div.)
IC4314- 2,4,5,11,13,15
PLAY/REC
0.6Vp-p ( 0.5msec. div.)
IC4315- 1,2,3,5,7
PLAY/REC
0.65Vp-p ( 0.5msec. div.)
IC6001- 54 PLAY/REC
3.0Vp-p ( 0.5msec. div.)
IC6001- 55 PLAY/REC
3.0Vp-p ( 0.2msec. div.)
IC6001- 92 PLAY/REC
3.0Vp-p ( 0.5usec. div.)
IC6001- 93 PLAY/REC
3.0Vp-p ( 0.5usec. div.)
IC2503- 3 PLAY/REC
1.4Vp-p ( 0.5msec. div.)
IC3001- 3 PLAY/REC
1.1Vp-p ( 20usec. div.)
IC3001- 157 PLAY/REC
1.5Vp-p ( 20usec. div.)
IC3004- 23 PLAY
1.2Vp-p ( 20usec. div.)
IC3004- 29,30 PLAY
0.5Vp-p ( 20usec. div.)
IC3004- 35 PLAY
1.0Vp-p ( 20usec. div.)
IC3001- 8 PLAY
0.4Vp-p ( 20usec. div.)
IC3004- 46 PLAY/REC
0.65Vp-p ( 20usec. div.)
IC3001-
68,69,70,71,72,73,74,75
PLAY
2.0Vp-p ( 5msec. div.)
IC4302- 1,7 PLAY/REC
0.5Vp-p ( 0.5msec. div.)
IC4306- 7,26 PLAY/REC
0.5Vp-p ( 0.5msec. div.)
IC3601- 12,13,14 PLAY/REC
1.1Vp-p ( 20usec. div.)
IC3603-12,14 PLAY/REC
1.0Vp-p ( 20usec. div.)
