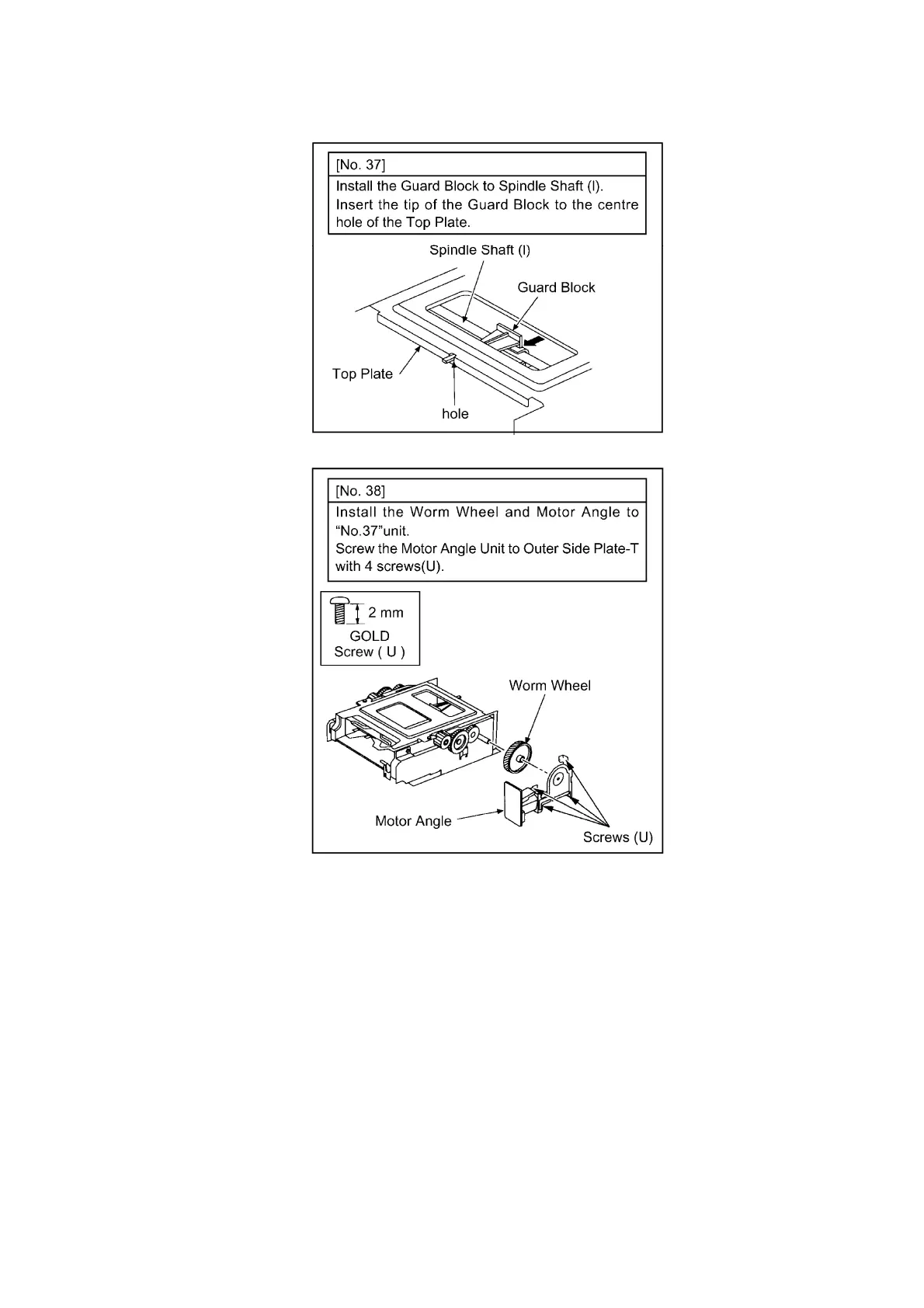

Fig. D39
Fig. D40
3.2. MECHANICAL ADJUSTMENT
Adjustment procedures, Disassembly Procedures and Assembly Procedures for Mechanism Chassis are
separated volume from this Service Manual.
Please Refer to the Service Manual for DJ-Mechanism Chassis.(VMD9706005A8)
3.3. ELECTRICAL ADJUSTMENT
As for this model, PC-EVR(Tatsujin) system is adopted for all Electrical Adjustments.
In achieving each adjustment, consult description in PC-EVR software for this model.
(All adjustments data is stored in IC2004 (EEPROM)).
Adjustment items are listed in the following table.
To Next Page
