3. ADJUSTMENT PROCEDURES
3.1. DISASSEMBLY/ ASSEMBLY PROCEDURES FOR CABINET PARTS,
C.B.A. AND MECHANISM UNIT

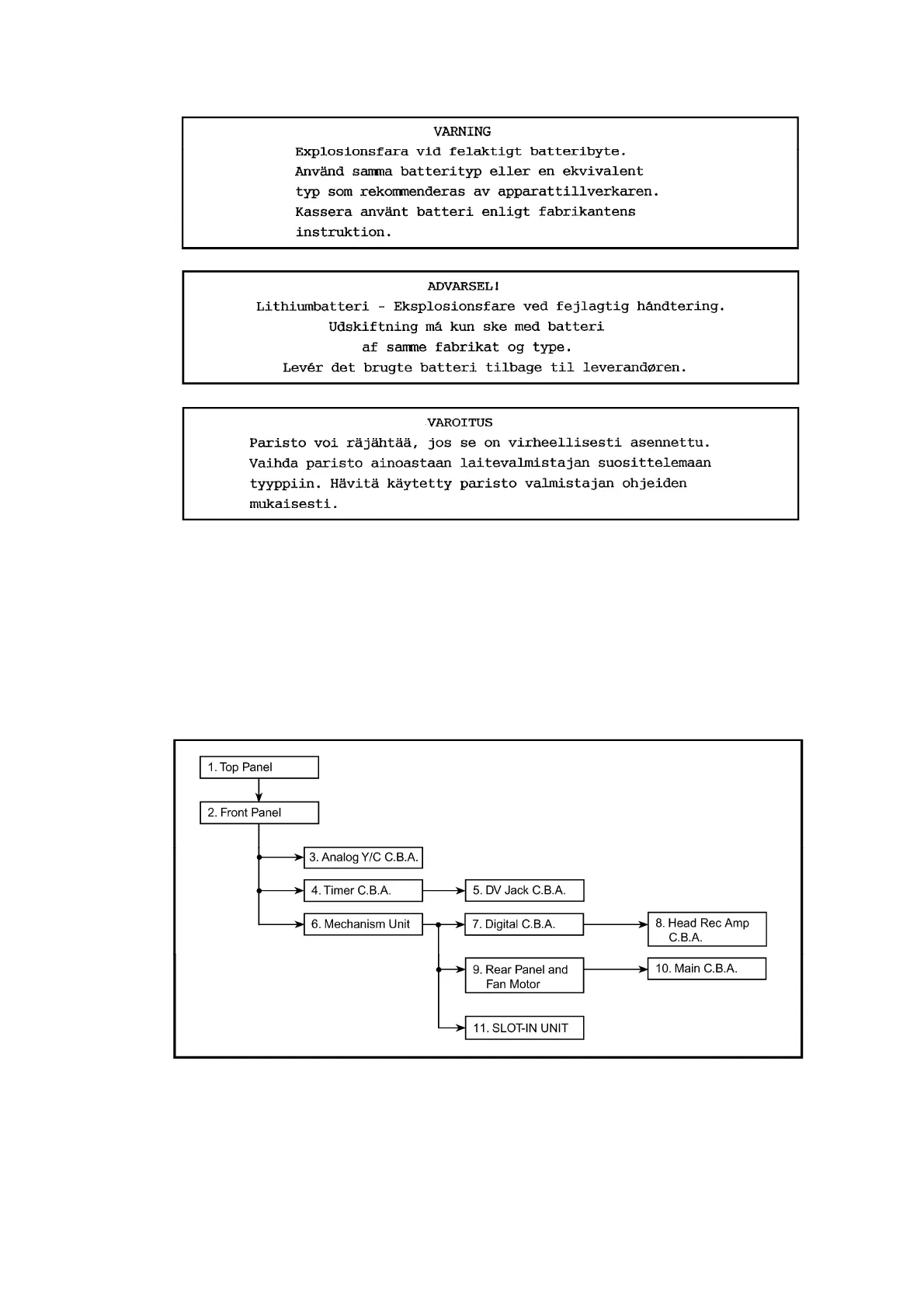

3.1.1. Disassemble Flow Chart for cabinet parts, C.B.A. and Mechanism Unit.
This flow chart indicates the disassembly steps the cabinet parts, C.B.A. and Mechanism Unit in order to
access to items to be serviced. When reinstalling, perform the steps in reverse order.
Fig. 3-1 Flow Chart
Fig. 3-2
