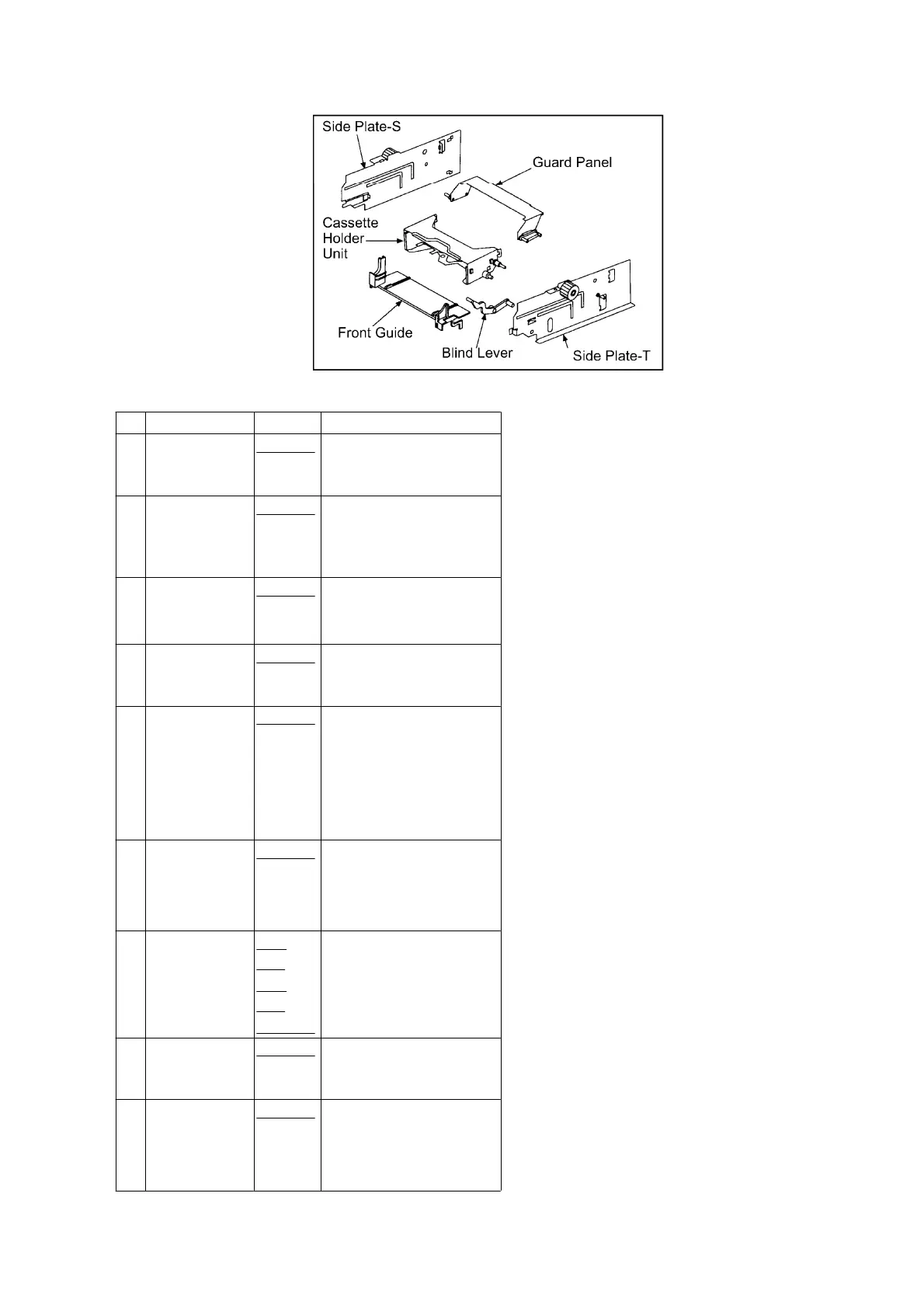

3.1.3.2. Assemble Section
No. ITEM/PART FIGURE REMARKS
22 FRONT
GUIDE/SIDE
PLATE-S
Fig. D20
Hook (t)
23 CASSETTE
HOLDER
UNIT/GUARD
PANEL
Fig. D21
24 "No.22"
unit/"No.23"
unit
Fig. D22 4-Pins
Upper groove
Lower groove
25 SIDE
PLATE-T/BLIND
LEVER
Fig. D23 1-Pin
1-Hole
26 "No.24"
unit/"No.25"
unit
Fig. D24 4-Pins
Upper groove
Lower groove
------------------------------------------
Hook (u)
Groove (v)
27 "No.26"
unit/TOP
PLATE
Fig. D25 2-Hook (w)
2-Groove (x)
------------------------------------------
2-Screws (R)
28 "No.27"
unit/S-MAIN
RACK
Fig.
D26
Fig.
D27
Fig. D28
Gear Phase Alignment
29 "No.28"
unit/SUB
RACK
Fig. D29
Gear Phase Alignment
30 "No.29"
unit/OUTER
SIDE
PLATE-S
Fig. D30 2-Hook (y)
2-Groove (z)
------------------------------------------
2-Screws (S)
