Panasonic NV-MD10000GC - Location for Connectors of the Main P.C.B. & Mother P.C.B

36

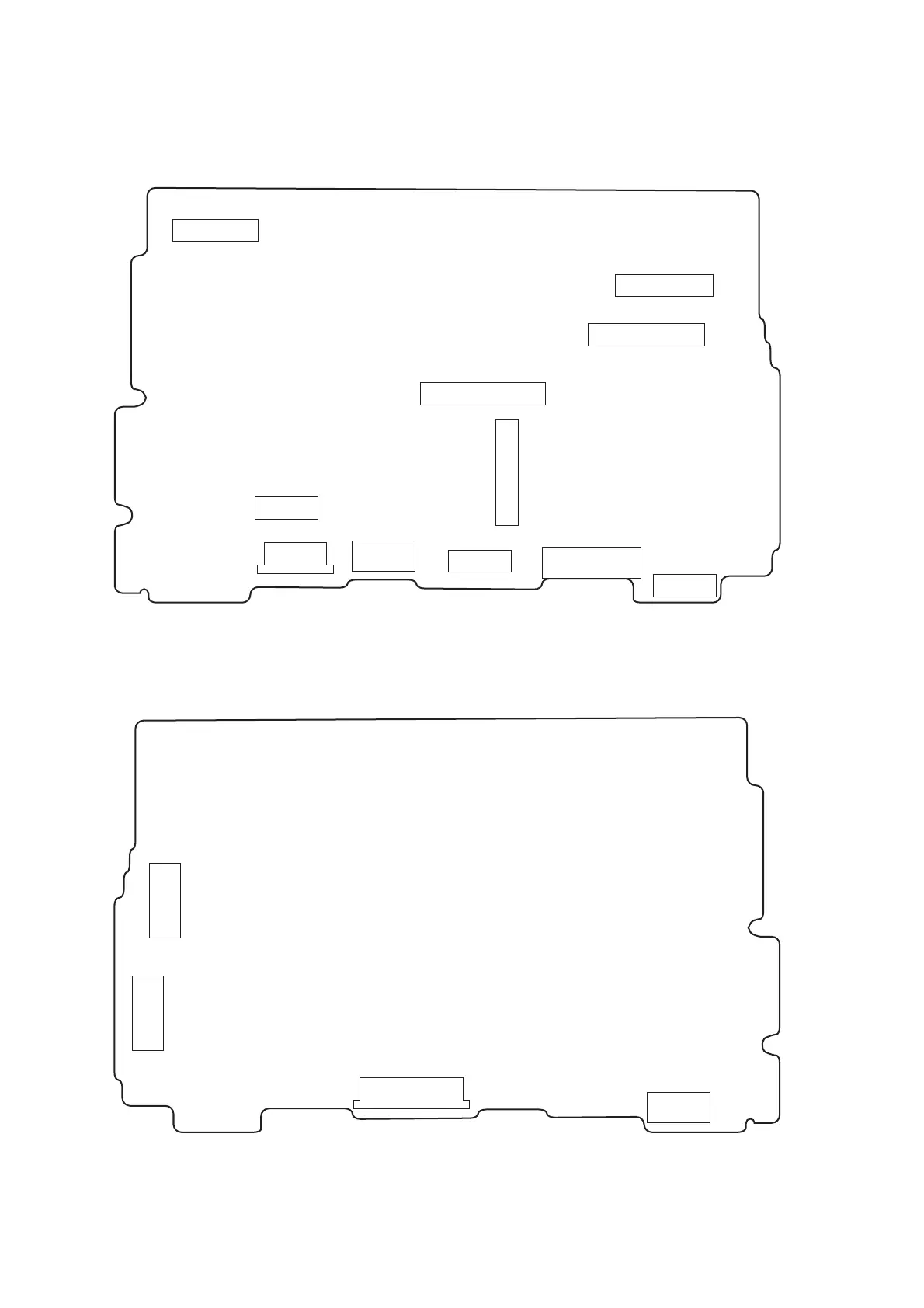

9.2. Location for Connectors of the Main P.C.B. & Mother P.C.B.
9.2.1. Main P.C.B.
FP5001
K1MN08BA0107
(FOIL SIDE)
FP2203
K1MN18BA0060
FP6502
K1MN14BA0107
FP6504
K1MN27BA0058
(COMPONENT SIDE)
FP6506
K1MN18A00064
FP701
K1MN21AA0017
FP2204
K1MN08BA0060
FP2202
K1MN10BA0067 FP6501
K1MN12A00075
FP2201
K1MN18BA0067
PP3001
K1KA20BA0052
FP602
K1MN26A00068
FP201
K1MN39AA0017
FP601
K1MN22A00065
FP6503
K1MN26A00068
