Before using
42
VQT0S76

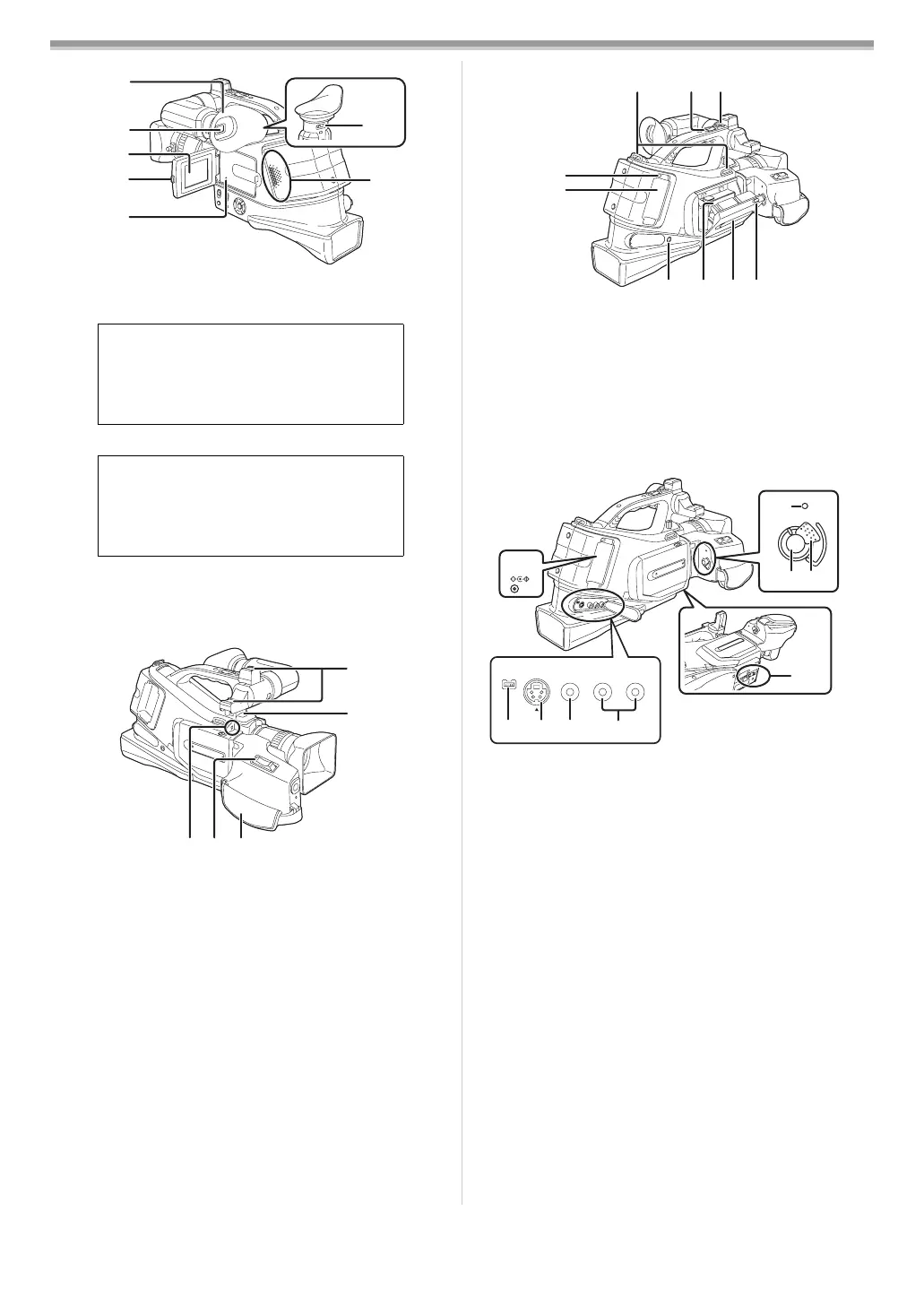

(13) Eyecup -73-
(14)
Viewfinder -44-, -73-
(15)
LCD monitor -43-, -73-
(16) LCD monitor open button [PUSH OPEN] -43-
(17)
Reset button -68-, -71-
(18)
Eyepiece corrector knob -44-
(19)
Speaker -61-
(20)
Smart accessory shoes -52-
≥The External Stereo Microphone (supplied), etc. can be
attached here.
(21) Microphone (built-in, stereo) -55-
(22)
External microphone socket [EXT MIC] -52-
≥Connect with an external microphone or audio equipment.
(When this socket is in use, the built-in microphone does
not operate.)
(23) Zoom lever [W/T] -55-, -61-
(24)
Grip belt -43-
(25)
Shoulder strap holders -43-
(26)
Sub zoom lever [W/T] -55-, -61-
(27)
Sub recording start/stop button -54-
(28)
Battery eject button [PUSH] -45-
(29)
Battery holder -45-
(30)
Headphone socket [PHONES]
(31) Cassette holder -46-
(32)
Cassette compartment cover -46-
(33)
Cassette eject lever [OPEN/EJECT] -46-
(34)
DC Input socket [DC IN] -44-
(35)
DV terminal [DV] -64-
≥Connect this to the digital video equipment.
(36) S-Video output socket [S-VIDEO OUT] -62-, -63-
(37)
Video output socket [VIDEO OUT] -62-, -63-
(38)
Audio output sockets [AUDIO OUT] -62-, -63-
(39)
Power lamp -47-
(40)
Recording start/stop button -54-
(41)
Off/On switch [OFF/ON] -47-
(42)
Tripod receptacle
This is a hole for attaching the camera to optional tripod/
VW-CT45E. (Please carefully read the operating instructions
for how to attach the tripod to the camera.)
Due to limitations in LCD production
technology, there may be some tiny bright or
dark spots on the Viewfinder screen.
However, this is not a malfunction and does
not affect the recorded picture.
Due to limitations in LCD production
technology, there may be some tiny bright or
dark spots on the LCD monitor screen.
However, this is not a malfunction and does
not affect the recorded picture.
(13)
(14)
(15)
(16)
(17)
(19)
(18)
(20)
(21)
(22) (23)(24)
(30) (31) (32) (33)
(25)
(26) (27)
(28)
(29)
DC IN 7.9V
VIDEO OUT
DV
AUDIO
L–
–R
OUT
S-VIDEO OUT
O
F
F
O
N
(40)(41)
(34)
(35)
(36) (37) (38)
(42)
(39)
