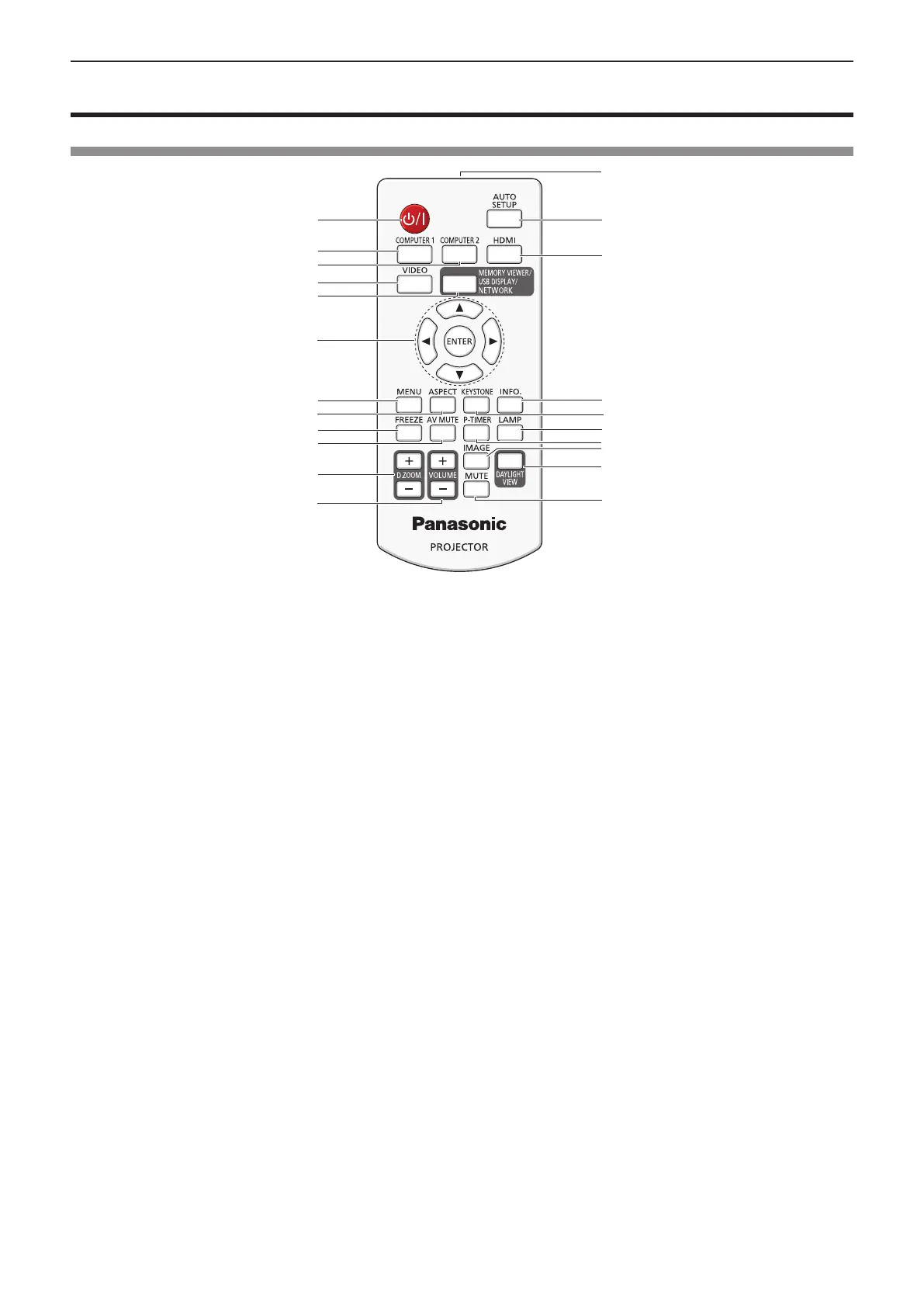

About your projector
Remote control
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
20
21
11
22
1 Power <v/b> button (v standby / b power on)
Turns the projector on or off.
2 <COMPUTER 1> button
Switches the Computer 1 or Component (YC
B
C
R
/YP
B
P
R
)
signal to project.
3 <COMPUTER 2> button
(For PT-LW373, PT-LW333, PT-LB423, PT-LB383 and
PT-LB353)
Switches the Computer 2 signal to project.
4 <VIDEO> button
Switches the Video signal or S-video signal to project.
5 <MEMORY VIEWER/USB DISPLAY/NETWORK>
button
(For PT-LW373, PT-LW333, PT-LB423, PT-LB383 and
PT-LB353)
Switches the Memory Viewer signal, the USB Display
signal or the Network signal to project.
<MEMORY VIEWER/USB DISPLAY> button
(For PT-LB303)
This button is disabled.
6 <ENTER> button/asqw buttons
Used to navigate through the menu screen.
7 <MENU> button
Open or close the On-Screen Menu. (x page 47)
Switches the aspect ratio of the image.
9 <FREEZE> button
Pauses the projected image and mute the audio
temporarily. (x page 43)
Used to turn off the audio and video temporarily.
(x page 43)
11 <D.ZOOM +/-> buttons
Zoom in and out the images. (x page 44)
12 <VOLUME +/–> buttons
Adjusts the volume of the built-in speaker or audio
output. (x page 44)
13 Remote control signal emitter
Executes Input search, Auto PC adj. and Auto Keystone
correction at the same time. (x page 41)
15 <HDMI> button
Switches the HDMI signal to project.
16 <INFO.> button
Displays the [Info.] menu. (x page 76)
17 <KEYSTONE> button
Displays the [Keystone] menu. (x page 42)
18 <LAMP> button
Switches the settings of [Lamp control].
(
Æ
pages 43, 59)
Operate the P-timer function. (x page 43)
20 <IMAGE> button
Switches the image mode.
(
x
pages 44, 55)
21 <DAYLIGHT VIEW> button
Used to correct the image when the projector is used in a
bright surroundings.
(
x
pages 45, 57)
22 <MUTE> button
Used when temporarily turning off the audio.
(x page 45)
Chapter 1 Preparation - About your projector
